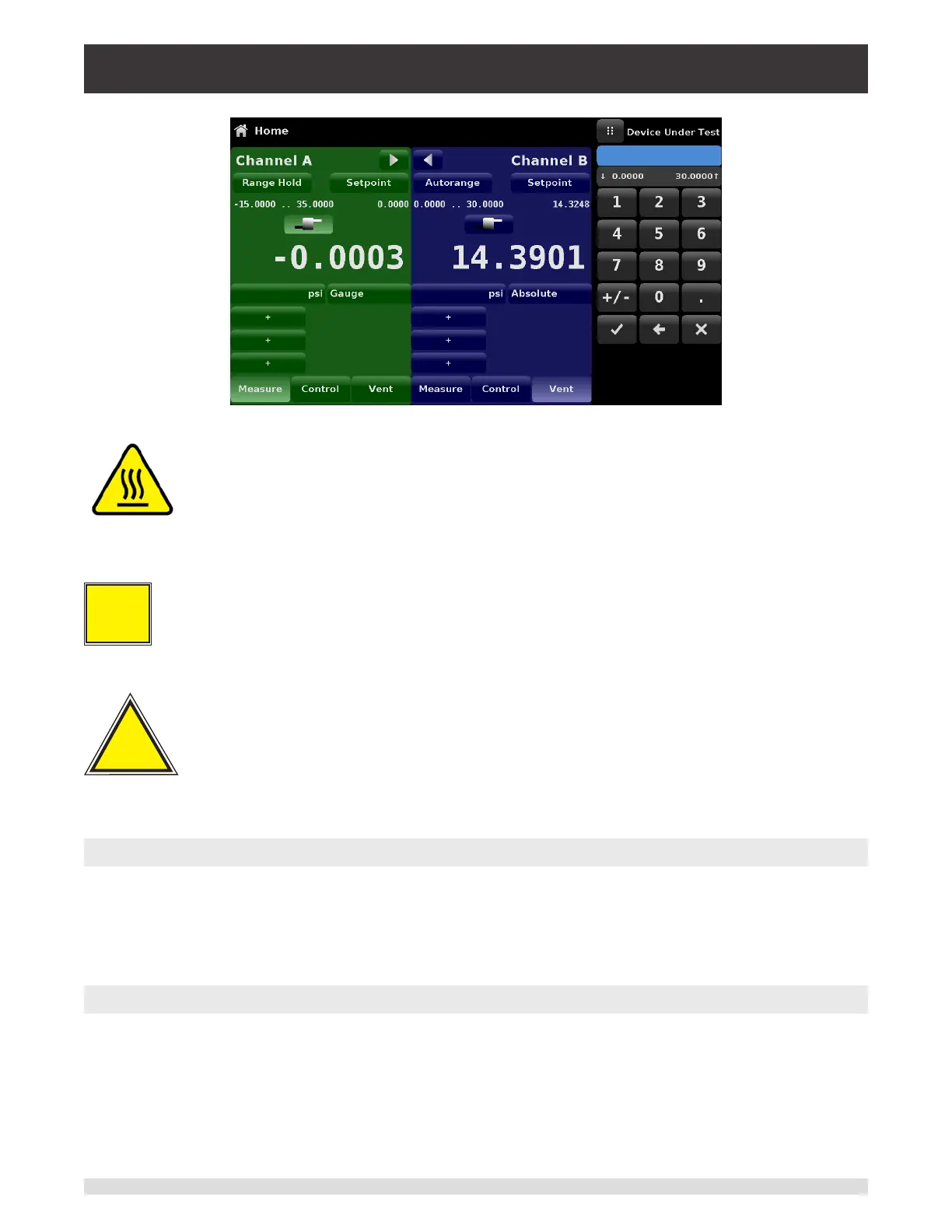

Figure 8.9.2.3-C - DUT pressure for purge sequence
Warning
Caution! If the Automatic Contamination Prevention System is operated in Manual
mode, there is a risk of the solenoid valves to heat if the system is kept on for
more than a few seconds
i
Notice
The collection bottle should be periodically inspected for liquid contaminents and
purged through the plug at the bottom
Warning
!
Warning!TheAutomaticCPSshouldbeturnedoandallowedtocooldownfor
15 minutes before any cleaning or maintenance procedure is performed
8.10 Manual Contamination Prevention Accessories
The contamination prevention accessories allow the user to operate the CPC6050 in contamination
prone areas. These accessories prevent contaminants like oil or dirt from entering into the instrument.
These lters, when connected to the Measure/Control Port at the rear of the instrument, prevent any
liquids to enter the controller when the direction of pressure ow is from device under test (DUT) to the
controller or when the device under test is vented.
8.10.1 Coalescing Filter (CPX-A-C5-9)
The coalescing lter is connected between the device under test and the Measure/ Control port. It has a
99.7% coelescing grade eciency and clears contaminants up to 0.01 microns.
