mensor CPC6050 - Automatic CPS Specification

Operating Instructions - CPC6050 117
Modular Pressure Controller
CPC6050
Collection bottle
Device Under
Test (DUT)
Top mounted
DUT port
Connection to the
Automatic CPS Back-
plate of CPC6050
CPC6050 M/C
port connection

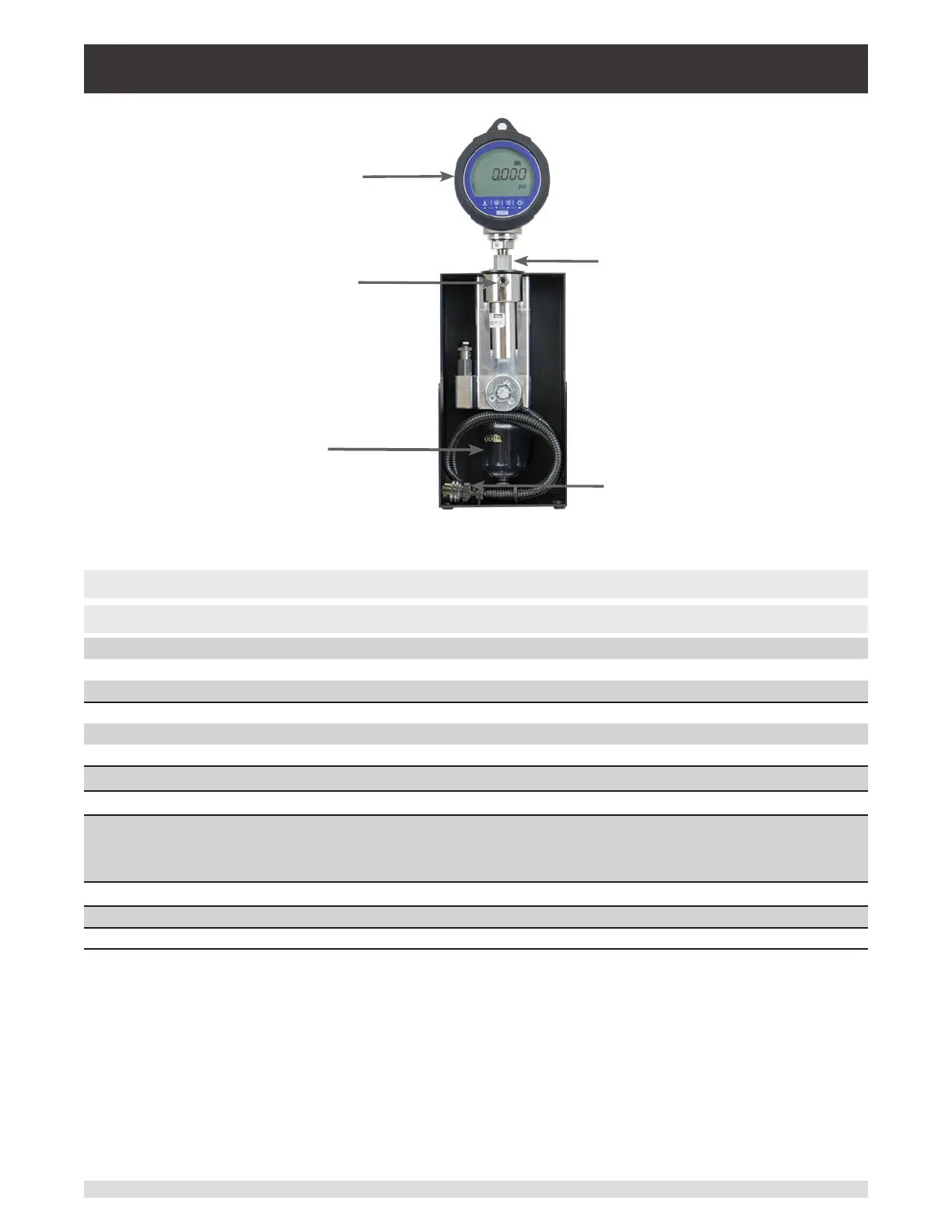

Figure 8.9.2.1-B - Top mounted DUT
8.9.2.2 AutomaticCPSSpecication
8.9.2.2.1 TechnicalSpecication
Operating Conditions
Maximum operating pressure 3,065 psig (211 bar gauge)
Maximum operating temperature 176 °C (350 F)
Voltage Supply
Power supply 12 VDC
Power consumption 13 VA
Pressure Connection
To the M/C port of CPC6050 1 port with 7/16”- 20 F SAE
To the DUT 2 ports with
Standard: 7/16" - 20 F SAE
Option: 6 mm tube tting, 1/4" tube tting, 1/4" female NPT ttings, 1/8" female NPT ttings or 1/8" female
BSP ttings
Dimensions & Weight
Dimensions 5.5 in x 10.5 in x 5.5 in (W x H x D)
Weight 3.99 kg (8.8 lbs)
