50 Operating Instructions - CPC6050
Modular Pressure Controller
CPC6050
6.4.4.2 Reading Filter
The Filter is an electronic lter to smooth out the pressure readings. Because of dierences in resolution,
greater ltering may display a more stable reading for some pressure units. Turn o the Filter by selecting
“O”, select varying degrees of ltering for the current units by selecting “Low”, “Normal” or “High”.

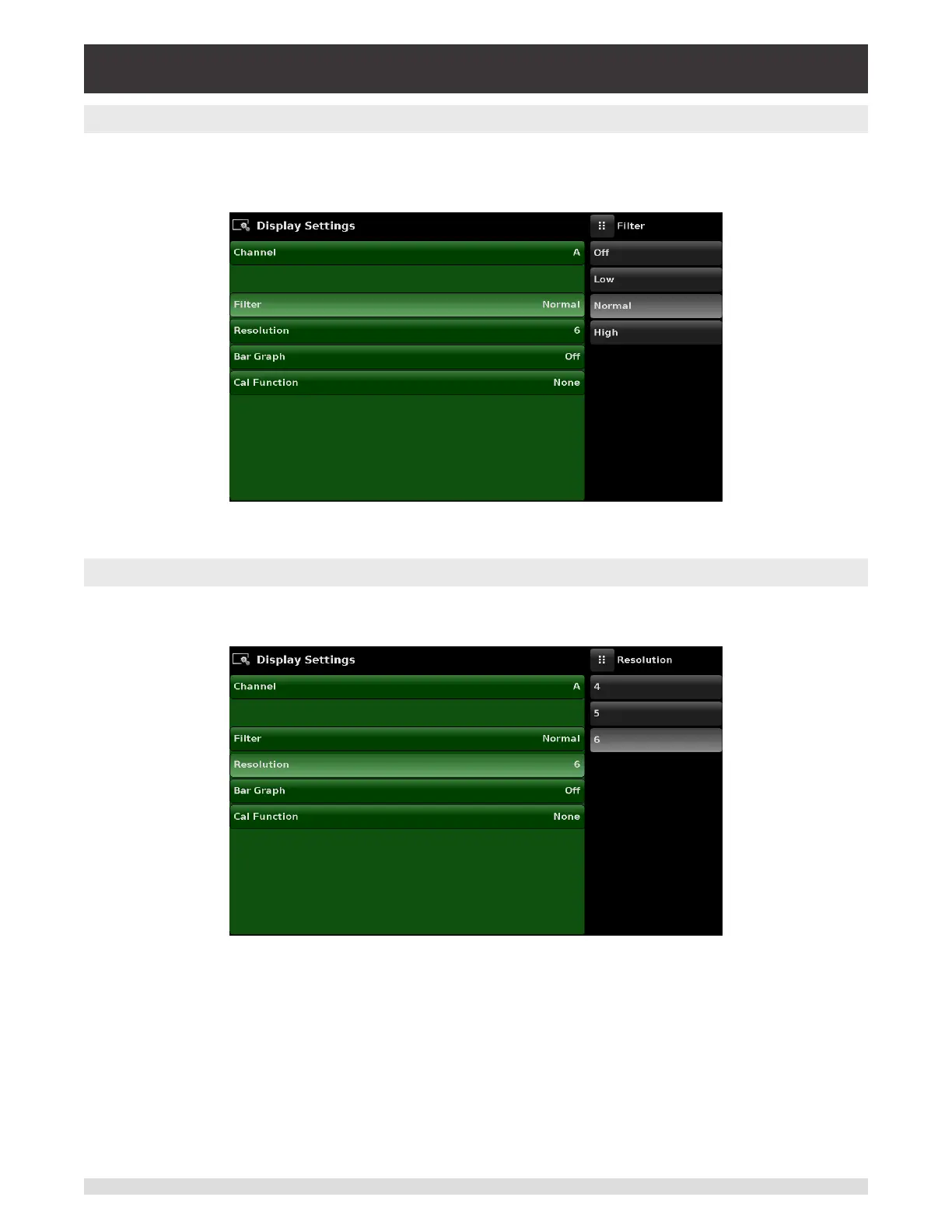

Figure 6.4.4.2 - Reading Filter
6.4.4.3 Reading Resolution
The Resolution of the displayed pressure value for each Channel can be set in the Display Settings Ap-
plication using the resolution Parameter. The resolution can be set to 4, 5 or 6 digits.
Figure 6.4.4.3 - Reading Resolution
