Origin selection [ORGN SELECT]

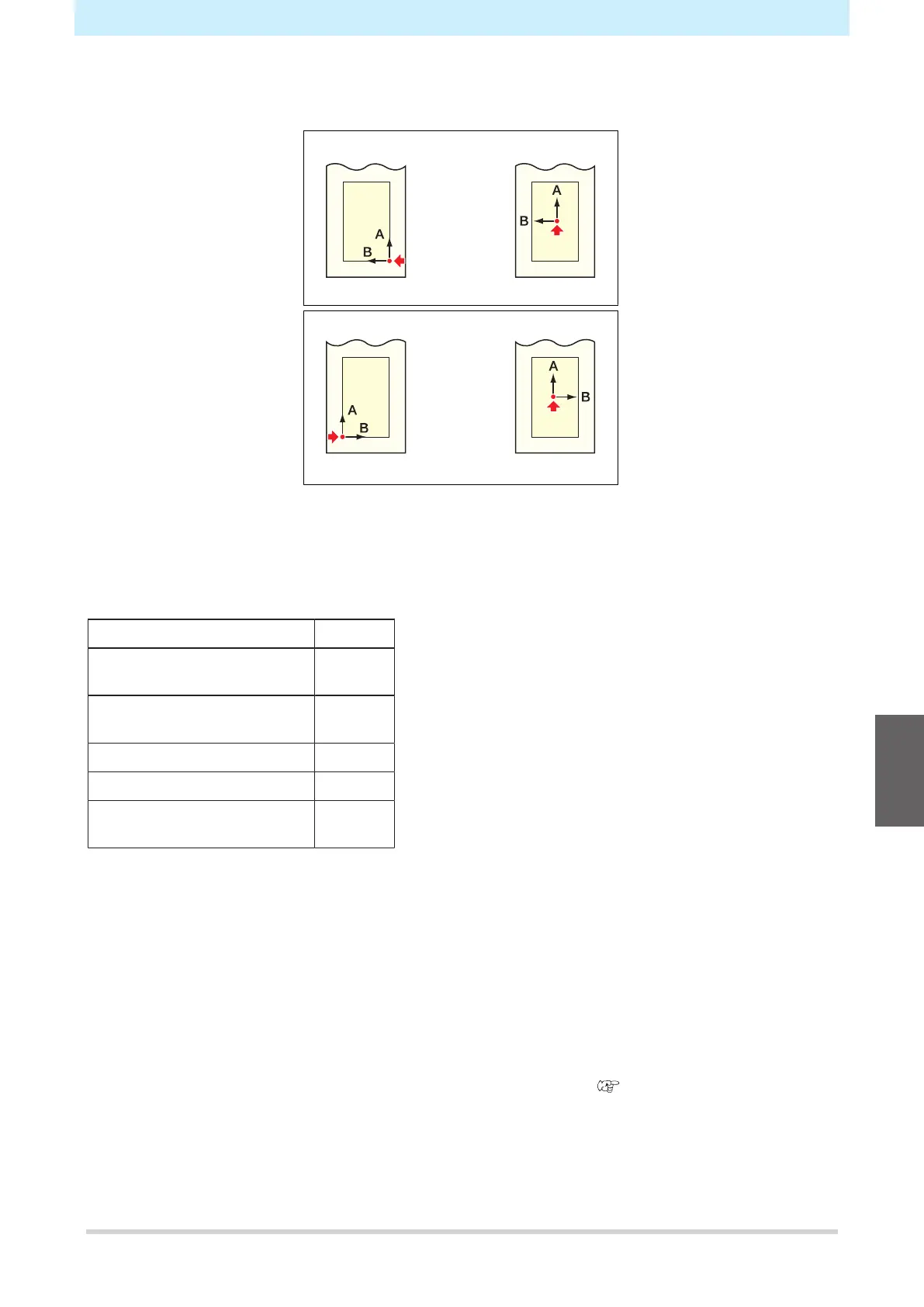

The origin position will be as follows when the rotation function is enabled:
[Rotation disabled]
[Rotation enabled]
Command
origin
With "Low-R" selected
With "Low-R" selected
With "CENTER"
selected
With "CENTER"
selected
• Setting the command origin to "Low-R" when using roll sheet expands the cutting area to up to 51 m.
• Setting the command origin to "CENTER" when using roll sheet gives a cutting area of 5 m.
l
Priority
The priority setting is enabled when using the MGL-IIc command. It covers the following items:
Pen selection command SP;
Pen down movement speed
setting command
VS;
Pen up movement speed
setting command
ZA;
Acceleration setting command AS;
Pen pressure setting command FS;, ZF;
Cutting blade correction setting
command
ZO;
l
Size response value
The value set for size response value is the maximum response size to be sent to the host computer. The
actual available cutting error will not be changed.
If the sheet detection size is smaller than [DISTANCE], the detection size will form the response value.
l
SHEET sensor
It may not be possible to detect sheets when using transparent sheets or sheets with a black underside,
resulting in an error message appearing.
If this occurs, disabling the sheet sensor function disables sheet detection and enables cutting.
• Be sure to set the cutting area if the sheet sensor function is disabled. "Cut Area Setting [CUT
AREA]"(P. 101)Cutting may continue even if data protrudes beyond the sheet and the sheet ends.
