– 5.11 –
to Slicer PCB assy.
CN29

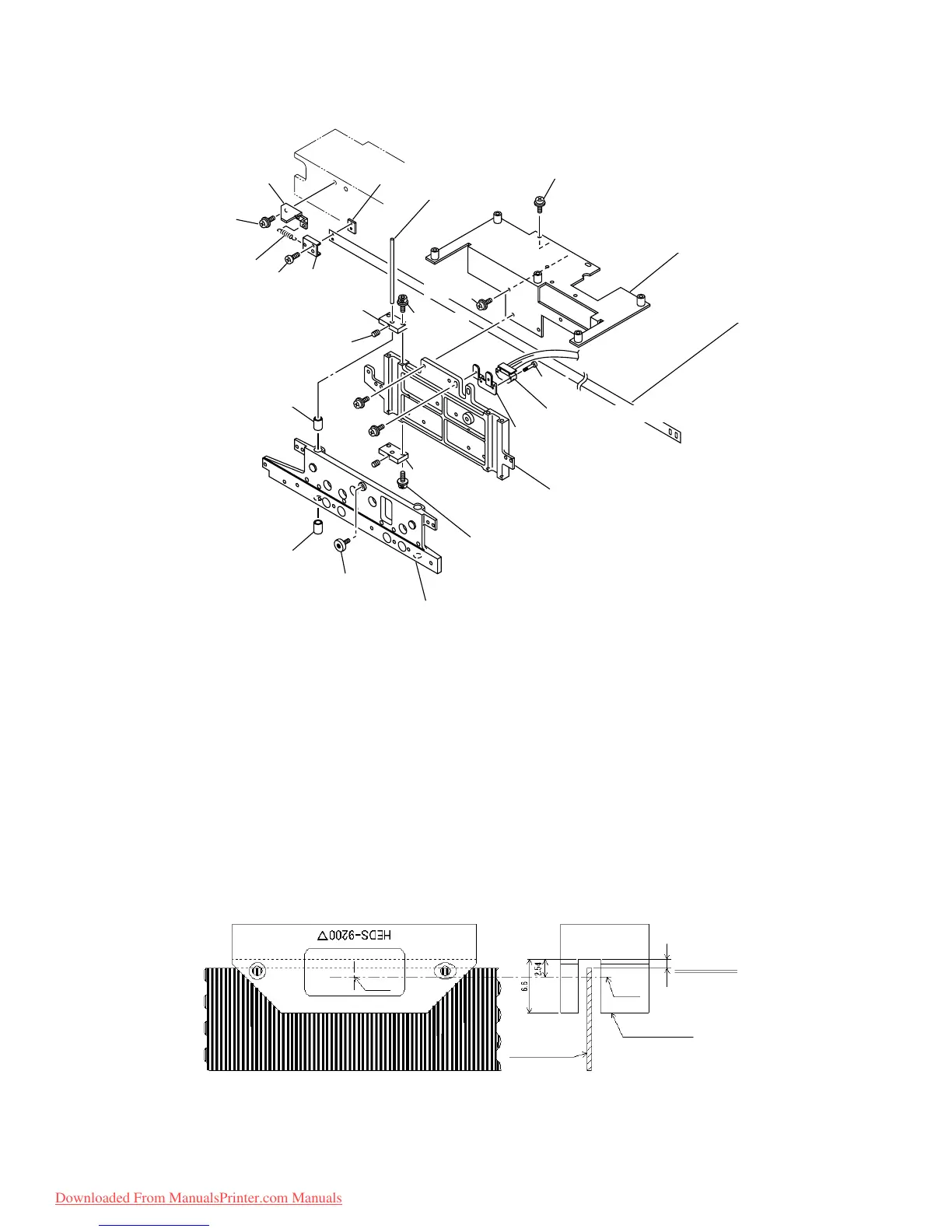

Mounting position of the linear encoder PCB
Attach the linear encoder PCB assy so that the mounting position (overlapping condition
to the linear scale) satisfies the following rough standard over the entire scale. Also check
1) and 2) below.
1) The following overlapping condition is met at the right, center, and left of the device.
2) The linear scale is positioned approximately at the center of the sensor's recessed section
but does not contact the wall.
Linear encoder
Linear scale
Front view
Side view
Optical axis
Optical axis
P3 x6SMW
B3 x6SMW
P3 x6SMW
CS3 x8SMW
P2 x12
CS3 x8SMW
B3 x6Ni
Scale hook
Scale holder
Shaft holder
SS flat 3
Shaft holder
Slider
L sensor BKT
Linear encoder scale assy.
Slider stopper L
Slider PCB BKT
H-axis hold shaft
Scale spring
Linear bushing
Head base
TDK bearing
Linear bushing
Linear encoder PCB assy.
About:1±0.5mm
