– 4.25 –
4-3-11. 500mmSQUARE
[Function]
Range accuracy is adjusted.
The adjustment value in the Y-direction shall be applied to the detected mediun width.
The dimension of the Y-direction for the drawing itself will not be changed.
The adjustment values are stored under the system parameters No. 0 and 1. (X-direction =
No. 0, Y-direction = No. 1)

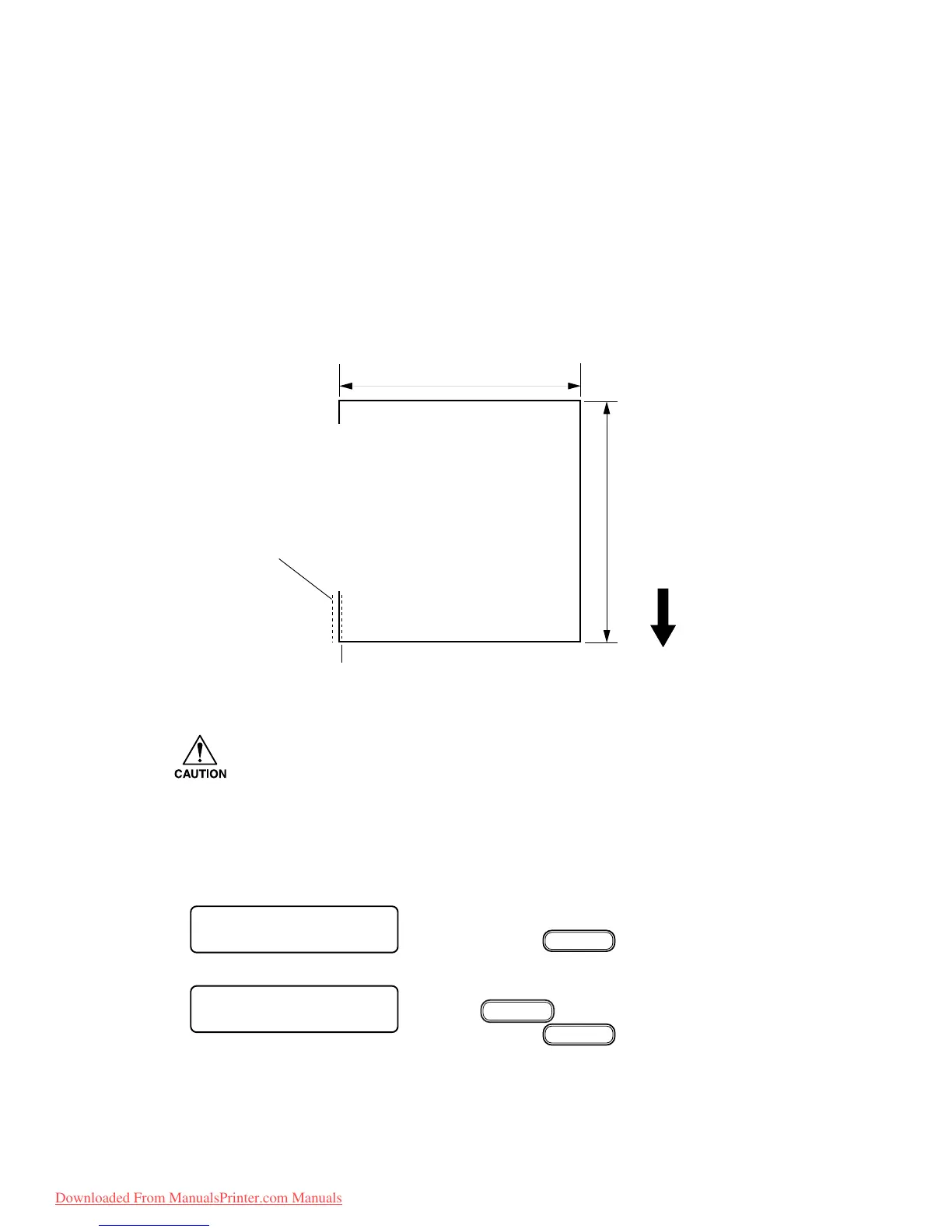

The measured value in the Y direction becomes the b position when the distance a –
a’ in the above diagram is taken to be 500 mm.
In this adjustment, the actual measurement is entered, but the value found from the
following formula is stored under the system parameter.
Adjustment value = 500 mm – Actual measurement (mm) (stored in units of 0.1 mm)
[Operation]
1) Select the ADJUSTMENT.
Press the
ENTER
key.
2) Select the “500mmSQUARE” pressing the
FUNCTION
key.
Press the
ENTER
key.
500mm
500mm
Flashing b
a
a'
Medium
feeding
direction
FUNCTION
# ADJUST < ENT >
# ADJUST
500mmSQUARE < ent >
