– 6.12 –
6-2-6. Adjustment of the head (head angle / head stagger)
[The case that needs adjustment]
• In the case where the head is replaced
[Tools to be used]
• Phillips screwdriver (No.2 for M3 to M5)
• Phillips screwdriver (No.1 for M2)
• Small Slotted screwdriver
• Hexagon wrench (opposite side distance: 2.5mm, Bondhus type polarized)
• Magnifier (Magnification of approx. 50)
[Adjusting procedure]
• Make adjustment in the following order with the head lowered to the bottom position.
Follow the steps below.
1. Adjustment of the head angle / [SLANT adjust]. (for each head, six positions)
2. Adjustment of the head angle / [REAR/FRONT adjust]. (for each head, three positions)
(3. Adjustment of the dot position / [PRINT adjust2], operation adjustment)

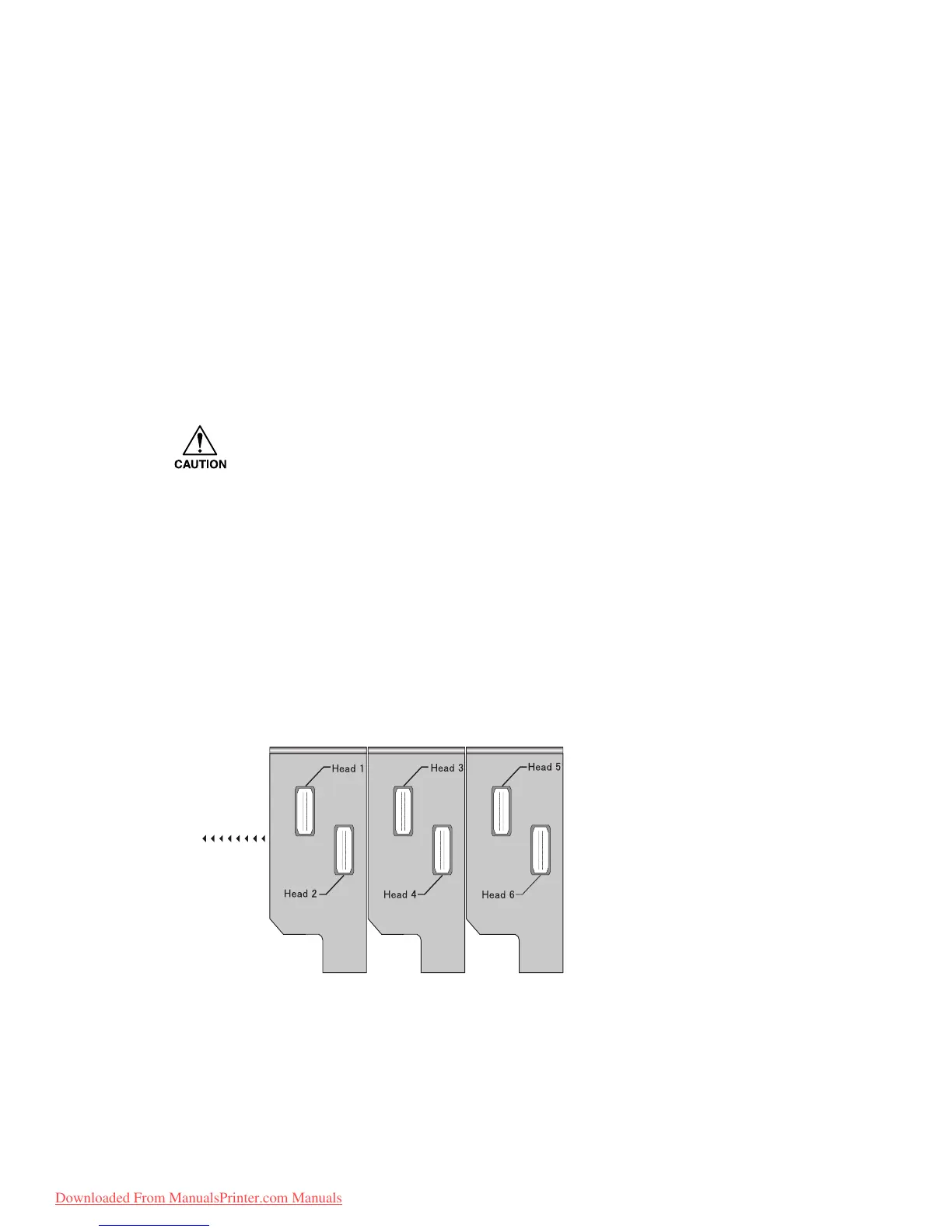

1. Adjustment of the head angle
Head Scan
Rear Head = Head 1,3,5
Front Head = Head 2,4,6
