Mindray M5

Probes and Biopsy
18-30
<5> Needle distance scales Indicate distance between needle and the
transducer head surface
<6> Guiding block Used for installing biopsy needle; there are five
specifications of guiding blocks for different
needles
<7> Knob of fixing the needle Used for fixing the needle
<8> Guiding hole of the needle Used for installing the biopsy needle
<9>
Specification of guiding
block
Matched with the corresponding biopsy needle
<10> Mark of indicating scales Indicating needle distance scales
<11>
Knob of fixing the guiding
block
Used for fixing the guiding block

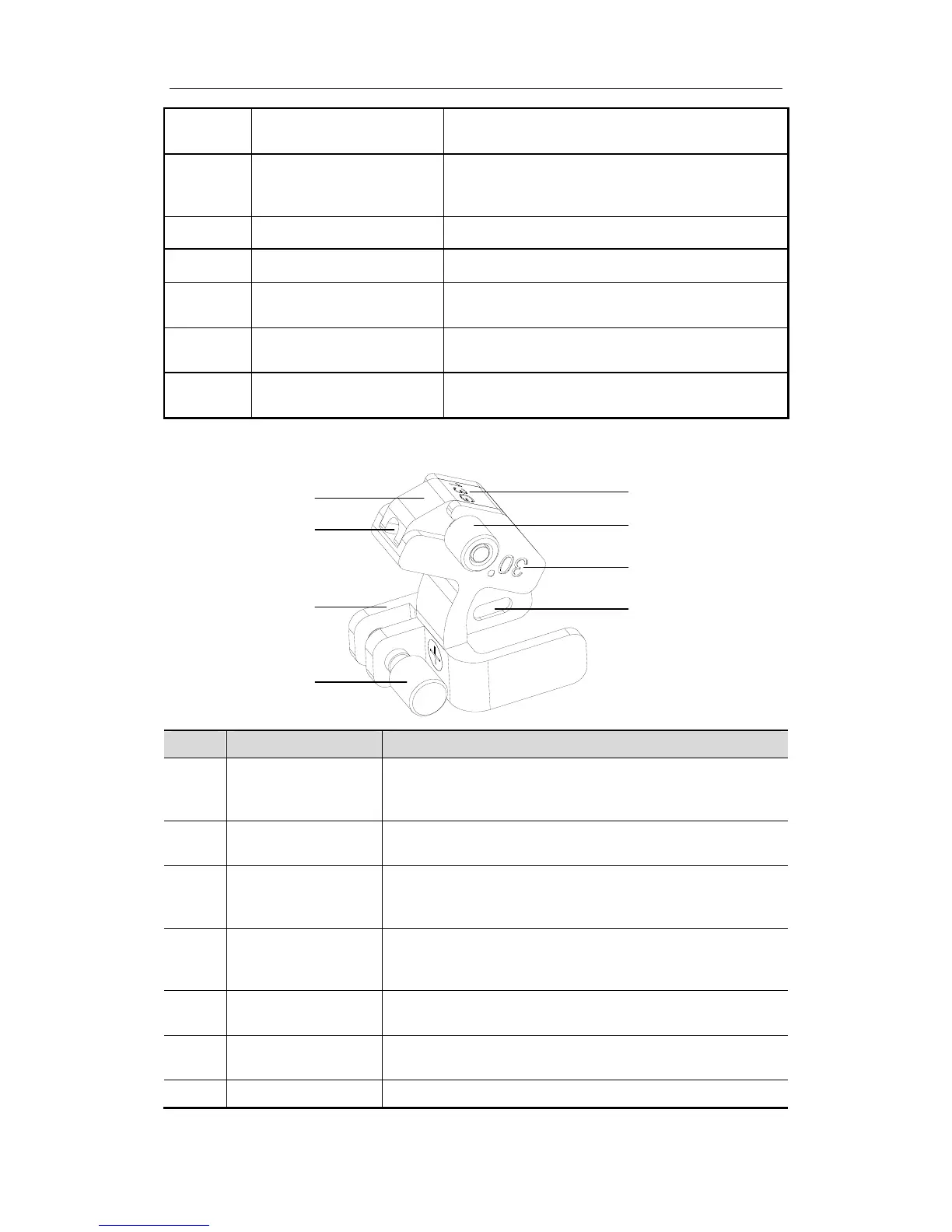

 NGB-010
5
1
2
3
4
6
7
8
No. Name Description
1 Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
2
Guiding hole of the
biopsy needle
Used for installing the biopsy needle.
3
Support of
needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
4
Knob of fixing
needle-guided
bracket
Used for fixing the needle-guided bracket on the probe.
5
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G).
6
Knob of fixing the
guiding block
Used for fixing the guiding block.
7 Needle guide angle The needle guide angle of this needle-guided bracket.
