Set-up & Connections
5-3

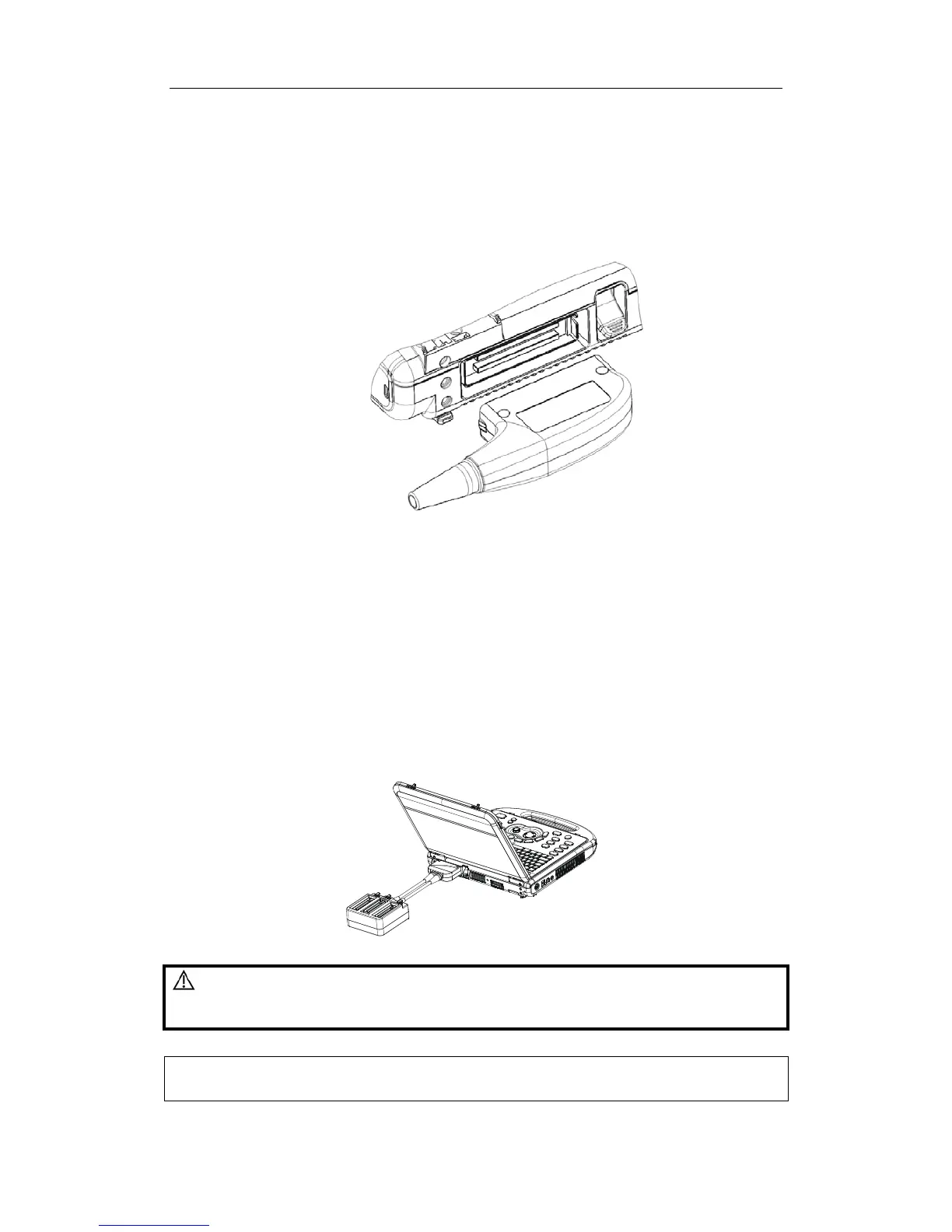

5.3.2 Disconnecting a Transducer
To disconnect a transducer:
1 Toggle the locking lever to the bottom position to unlock the connector of the transducer.
2 Pull the transducer connector straight out, as shown in the figure below.
5.4 Connecting the Probe Extend Module
Connect the probe extend module to the main unit via the transducer port, thus the transducer
port is extended to two usable ports and one docking port. See the following figure.
To connect the probe extend module:
1 Turn off the ultrasound system.
2 Align the connector with the probe port and carefully push into place with the bulge
facing to the right side of the system (when you are facing to the front of the system.).
3 Toggle the lock lever to the top position.
CAUTION:
You must press the power button to turn off the system before
connecting or disconnecting the probe extend module.
Otherwise the system may be damaged.
NOTE: If you use the probe extend module to connect a transducer, the image quality
may be degraded.
