Set-up & Connections
5-2
z When disconnected from the external power supply, the system is powered by the lithium
ion batteries. Refer to “Chapter 21 Batteries” for the detailed operations and precautions.
5.3 Connecting / Disconnecting a
Transducer
CAUTION:
1. Press [Freeze] key to freeze an image or turn off the
power of the system before connecting / disconnecting
the transducer. Otherwise, system or transducer failure
may occur.
2. When connecting or disconnecting a transducer, place
it in a proper position, to prevent the transducer from
falling off or becoming damaged.
3. Only use the transducers provided by Mindray.
Aftermarket transducers may result in damage or cause
a fire.
5.3.1 Connecting a Transducer
WARNING:
The transducers, cables and connectors are in proper
operating order and free from surface defects, cracks and
peeling. Using a defective transducer may cause electric
shock.
To connect a transducer:
1 Keep the cable end of the transducer to the right side of the system, and insert the
connector into the port of the system, and then press in fully.
Note: Do keep the cable end of the transducer to the right-hand side so that you can
connect it to the system correctly.

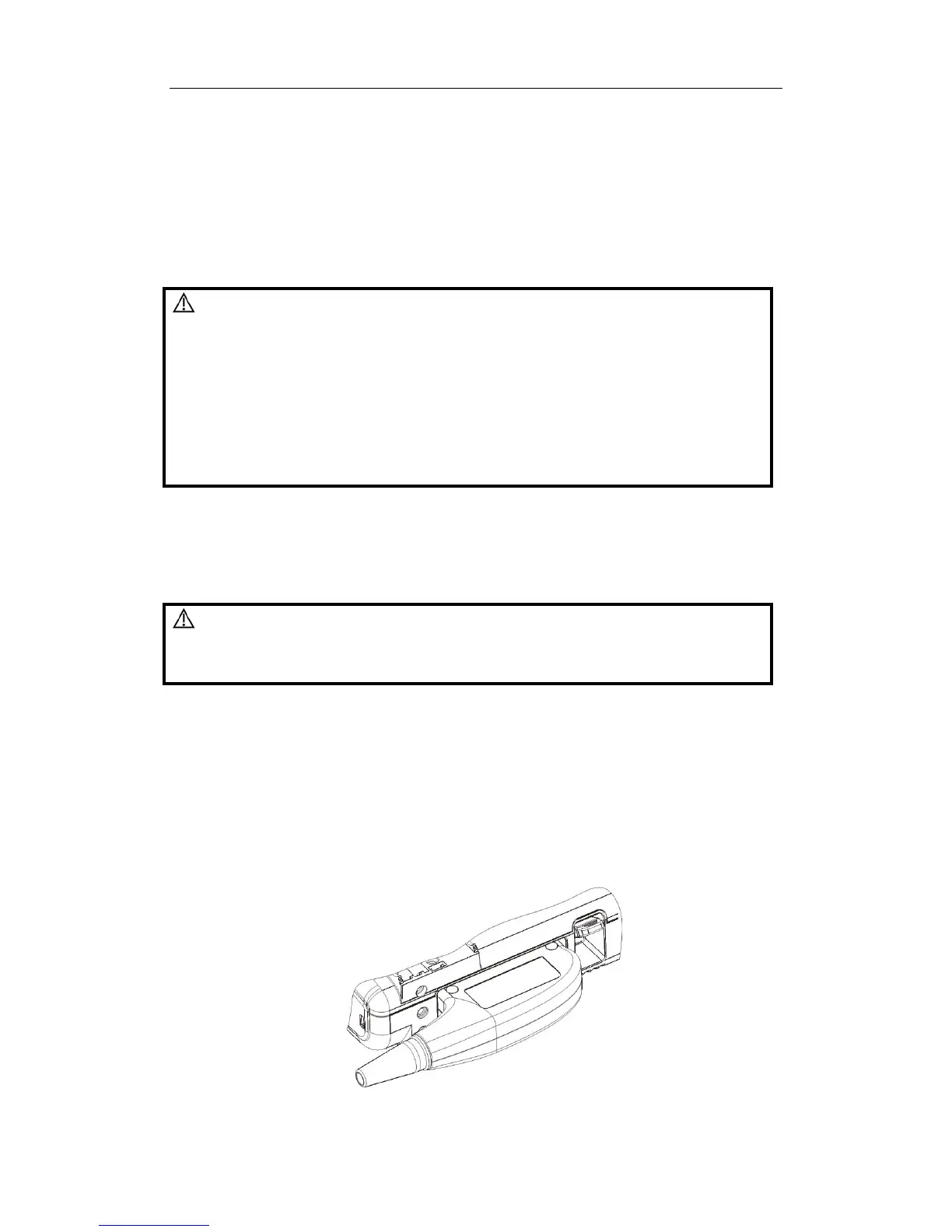

2 Toggle the locking lever to the top position. See the figure below.
Locking lever
To Next Page
