Probes and Biopsy
18-47
Plastic needle-guided bracket:
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the
needle.
(3) Remove the support of needle-guided bracket from the probe.
îš„ NGB-008
Metal/needle-detachable needle-guided bracket;
(1) Screw the nut of the guiding block and remove the guiding block slightly along
the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from
the transducer.
Plastic/needle-detachable needle-guided bracket;
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
(3) Remove the support of needle-guided bracket from the transducer.
îš„ NGB-009
(1) Turn on the knob of fixing the needle and separate the needle from the
needle-guided bracket.
(2) Turn on the knob of fixing guiding block and remove the guiding block from the
hole of installing guiding block.
(3) Turn on the knob of fixing needle-guided bracket and remove the needle-guided
bracket.
îš„ NGB-010
(1) Remove the guiding block slightly along the direction of the needle’s tail, and
separate the residual part of the needle-guide bracket and the probe from the
needle.
(2) Remove the support of needle-guided bracket from the probe.
îš„ NGB-011
Hold the probe and the needle-guided bracket, and then open the grip knob of the
needle-guided bracket.
îš„ NGB-012

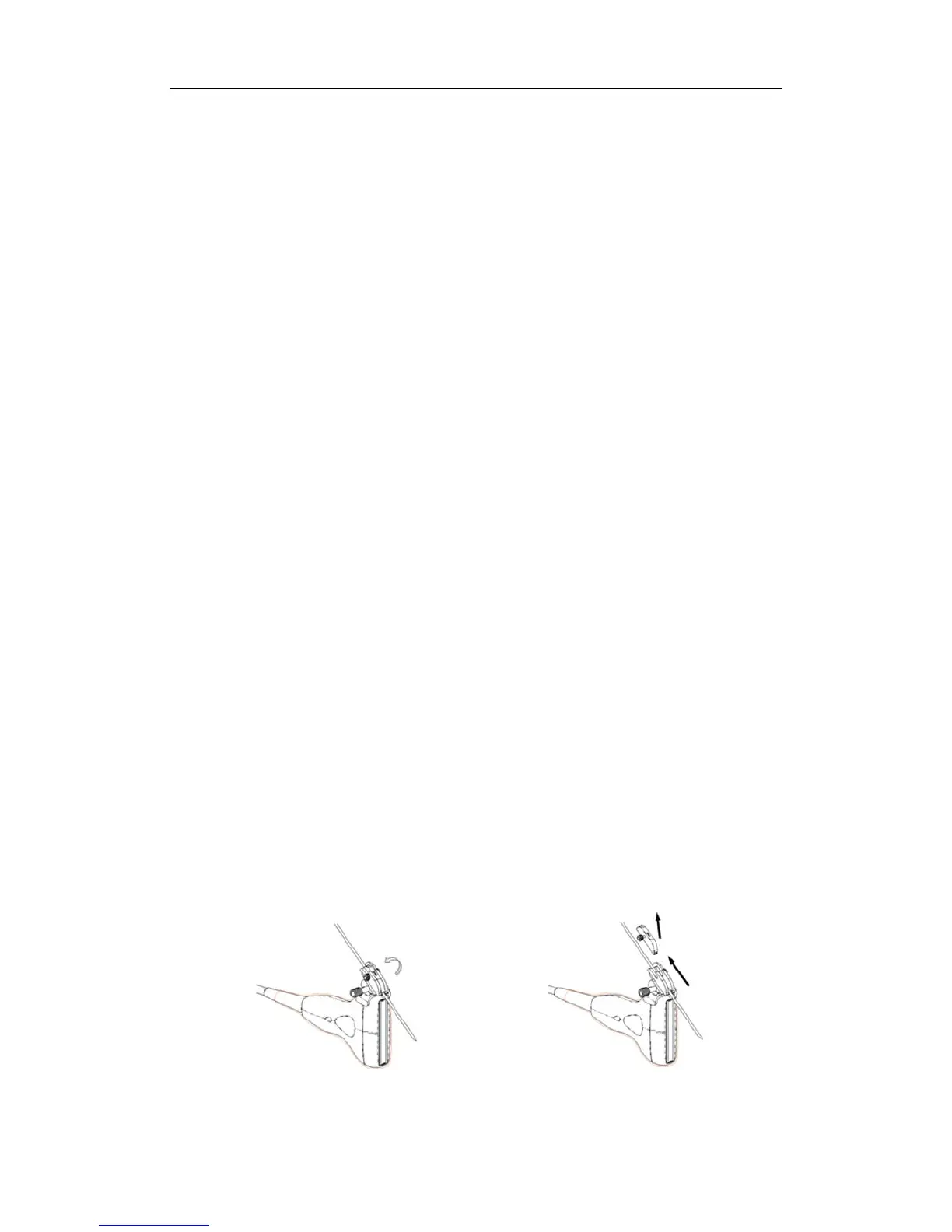

Metal/needle detachable needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along
the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
