DICOM
B-11

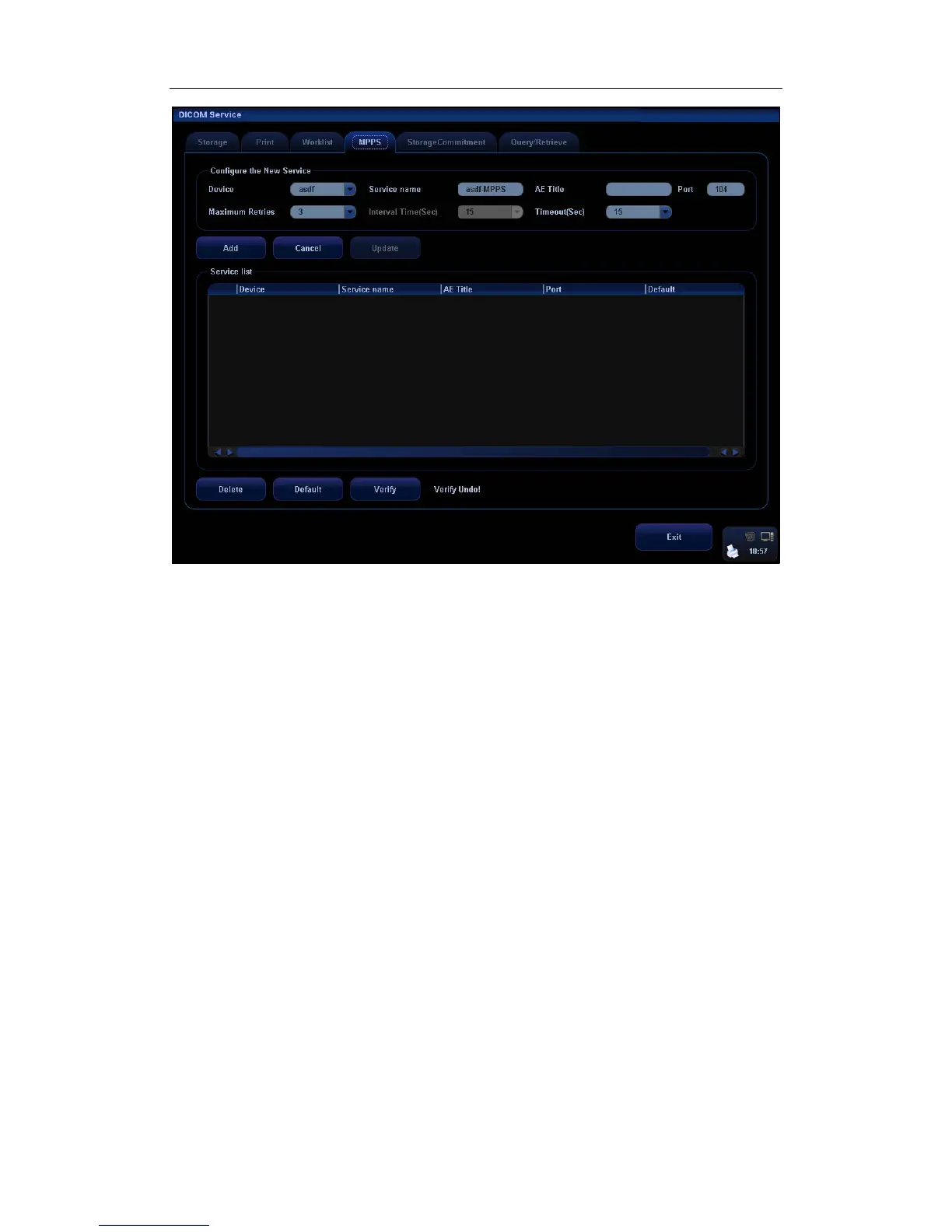

MPPS setting items are described as follows:
1 Device: After you set the server (s) in DICOM Server Setting, the name (s) will
appear in the drop-down list, select the name of the MPPS server.
2 Service Name: Default is xxx-MPPS, and it can be modified.
3 AE Title: Application Entity title, which should be consistent with that of the
MPPS server.
4 Port: Here, the port should be consistent with that of the MPPS server.
5 Maximum Retries: Reserved feature.
6 Interval Time (s): Reserved feature.
7 Timeout: Refers to time after which the system will stop trying to establish a
connection to the service. Value: 5
－60s, in increments of 5s, and 15 by default.
8 Add: Click to add services to the service list.
9 Cancel: Click to cancel parameter setting.
10 Update: Select an item in the service list, change the parameters in the above
area, and click [Update] to update the item in the service list.
11 Delete: Click to delete the selected service in the service list.
12 Default: Select an item in the service list, click [Default] and you can see “Y” in
the Default column.
13 Verify: Click to verify if the two DICOM application entities are normally
connected.
