Image Modes
10-18
B IP and THI
IP

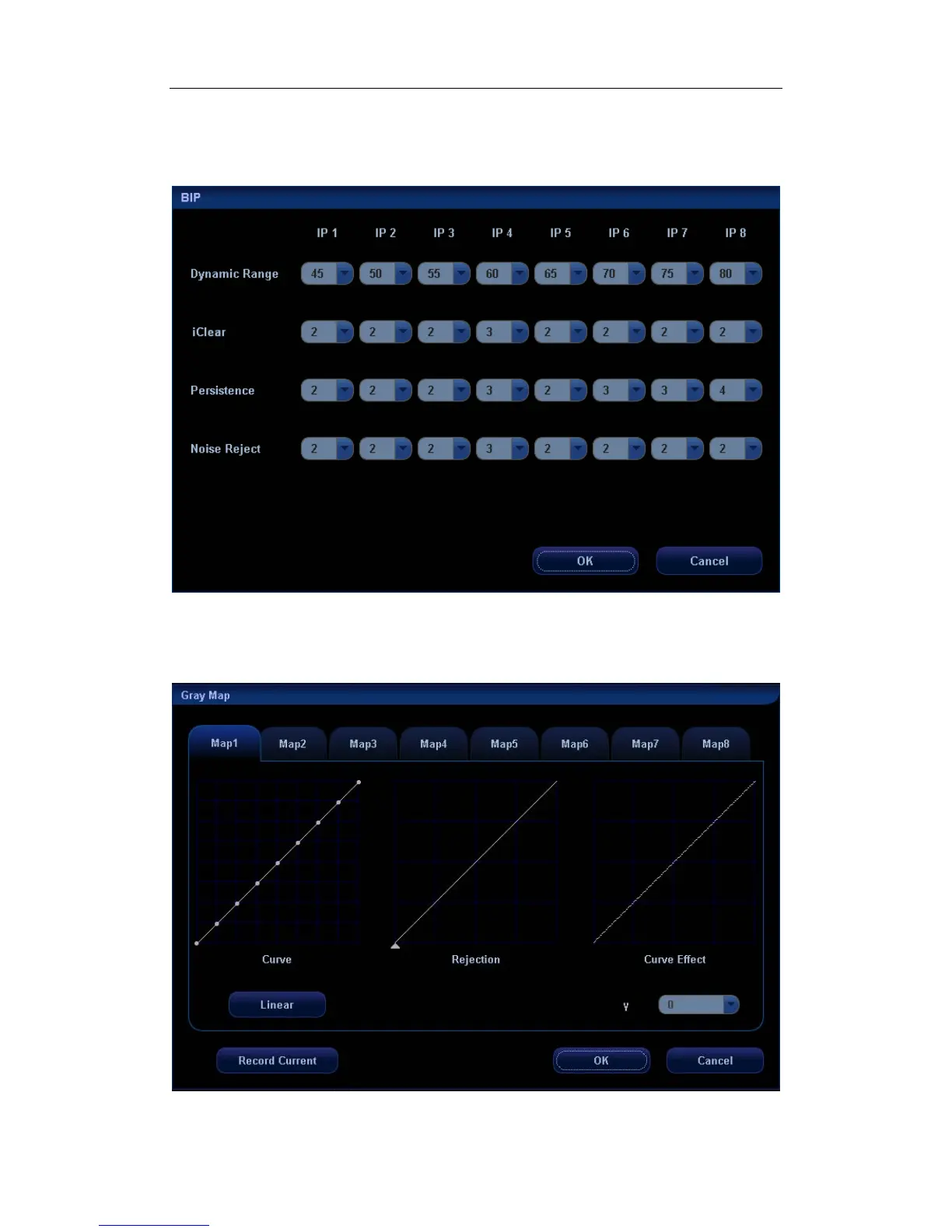

Click the [BIP] or [THI IP] button, and the co
rresponding IP
combination of settings can be
entered, as shown in the figure below
. Y
ou can set the parameter values of each IP
combination, and click [OK] to store the new
setup.
B Gray Map and THI Gray
Map
Click [B Gray Map] or [THI Gray Map] on the le
ft field to enter the se
ttings of gray map, as
shown in the figure below
.
96
98
