※1 When tension is applied with the application of tension type or
universal(compression/tension) type of load cell, and display of “+”
direction is required, connect “Green” with Terminal No.2 and
“Blue” with Terminal No.4 individually. As there is a case which
standard wiring color is different, please confirm the inspection data
sheet of the load cell being used.
※2 When the length of CAB−502 is more than 30 m totally, there may
have the case that the accuracy is out of warranty because the
resistance of cable makes the input voltage of the instrument
decreased.
2

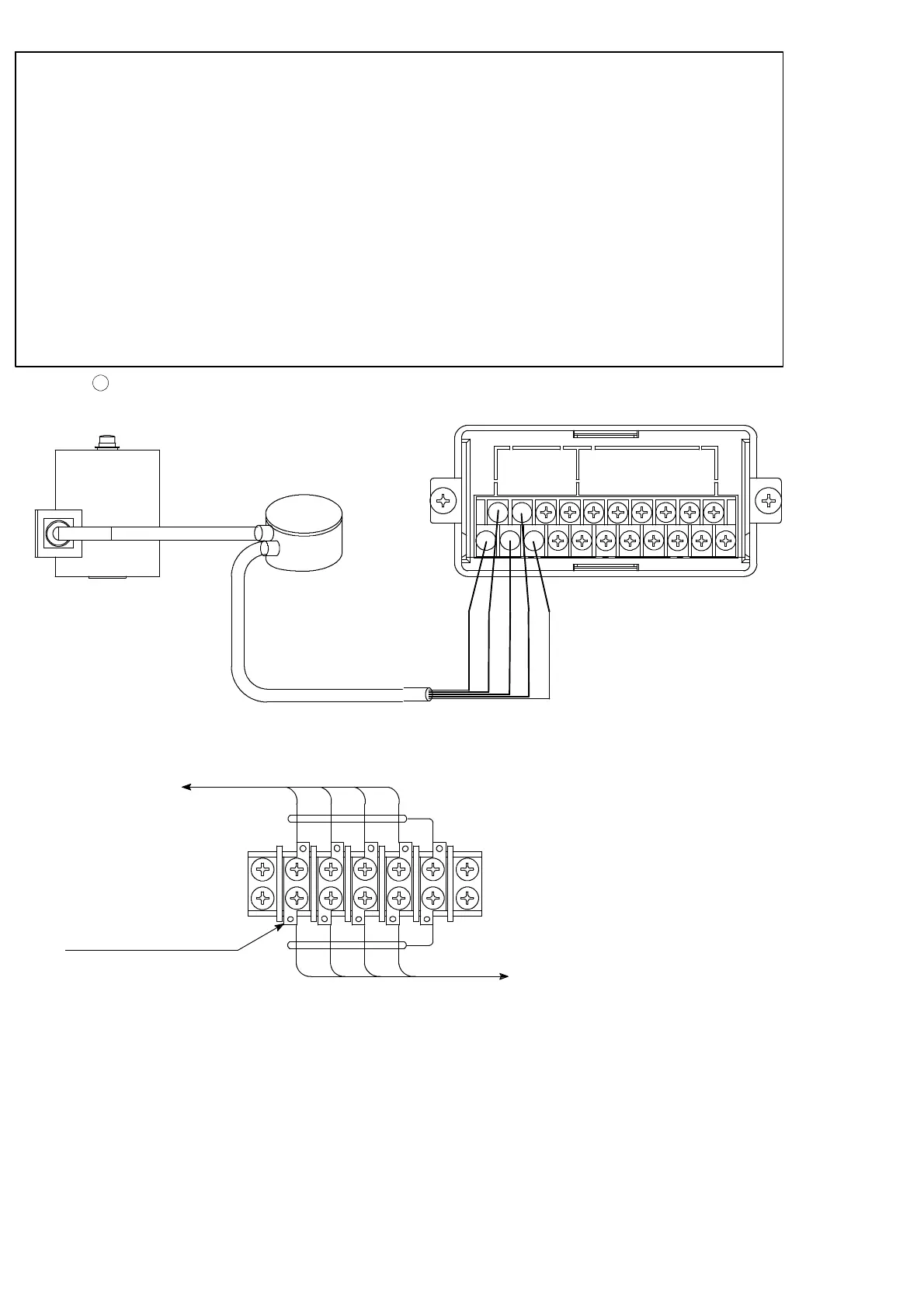

Connection with 1 piece of load cell and Junction box for extension use(B−304) and
CSD−701B.
B−304
CAB−502
3m
Junction box
※2 (Total length of CAB−502 is within 30 m)
RED
※
１
※
１
WHT
GRN
Shield
BLU
Internal wiring diagram of B−304
to CSD−701B
to load cell
RED WHTBLU
GRN YEL(Shield)
Terminal pitch 9.5 mm
Suitable crimp type terminal lugs
：1.25−4or2−4
RED WHTBLU
GRN
YEL(Shield)
