 ※1 When tension is applied with the application of tension type or
universal(compression/tension) type of load cell, and display of “+”
direction is required, connect “Green” with Terminal No.2 and
“Blue” with Terminal No.4 individually. As there is a case which
standard wiring color is different, please confirm the inspection data
sheet of the load cell being used.
※2 When the length of CAB−502 is more than 30 m totally, there may
have the case that the accuracy is out of warranty because the
resistance of cable makes the input voltage of the instrument
decreased.
3

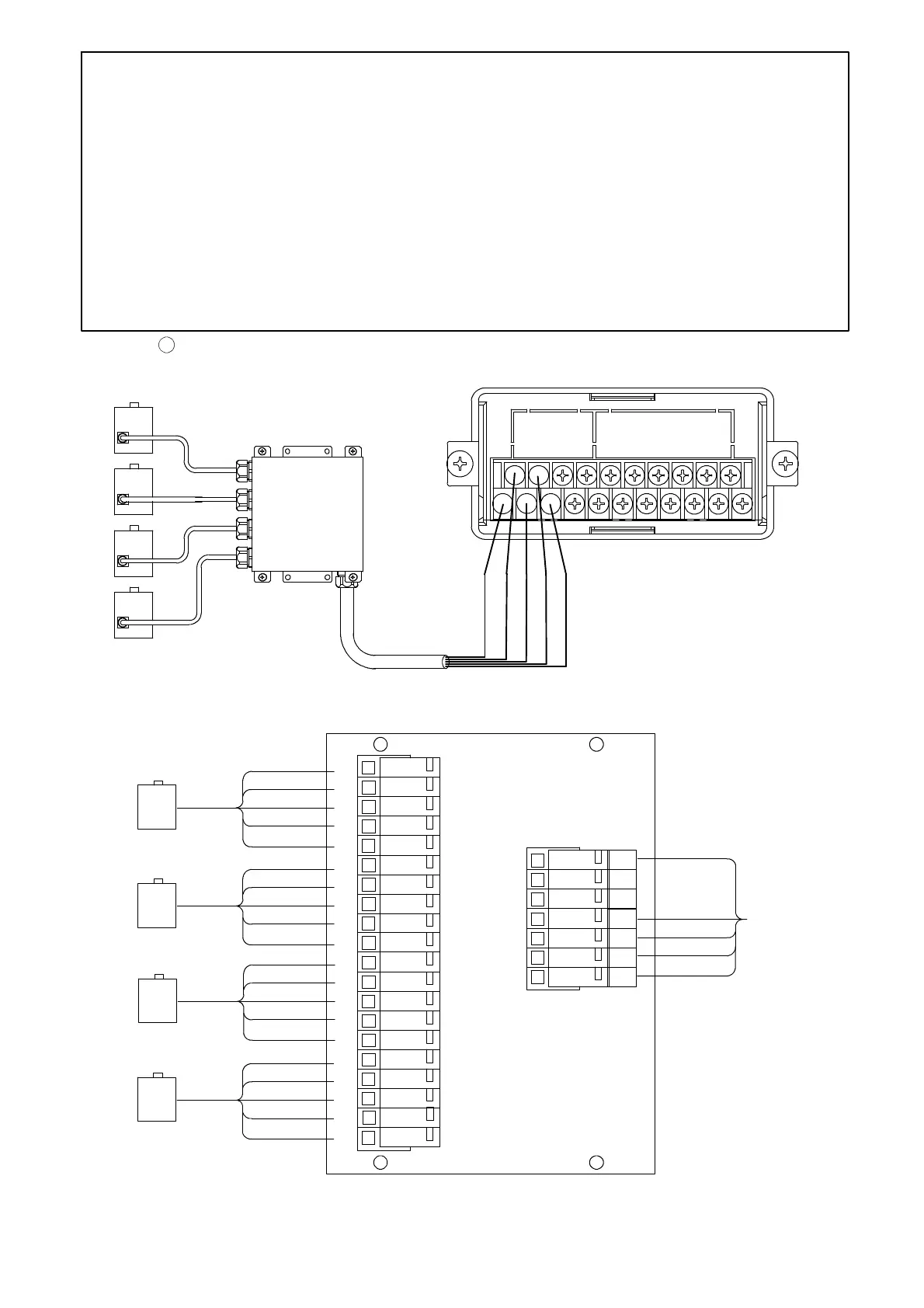

Connection with 2 to 4 pieces of load cells, Summing type junction box(B−307) and
CSD−701B.
CAB−502
B−307
RED
※
１
※
１
WHT GRN Shield BLU
Junction box
※2 (Total length of CAB−502 is within 30 m)
Internal wiring diagram of B−307
to CSD−701B
WHT
1W
1R
1G
1B
1Y
2W
2R
2G
2B
2Y
3W
3R
3G
3B
3Y
4W
4R
4G
4B
4Y
RD
OR
BK
WH
GN
BL
YE
RED
GRN
YEL(Shield)
BLU
WHT
RED
GRN
YEL(Shield)
BLU
WHT
RED
GRN
YEL(Shield)
BLU
WHT
RED
GRN
YEL(Shield)
BLU
WHT
RED
GRN
YEL(Shield)
BLU
