Minebea CSD-701B - 7−15−3. Fine adjustment 2 on analog output

69
Procedures
5
Fine adjustment on the maximum value of
analog output

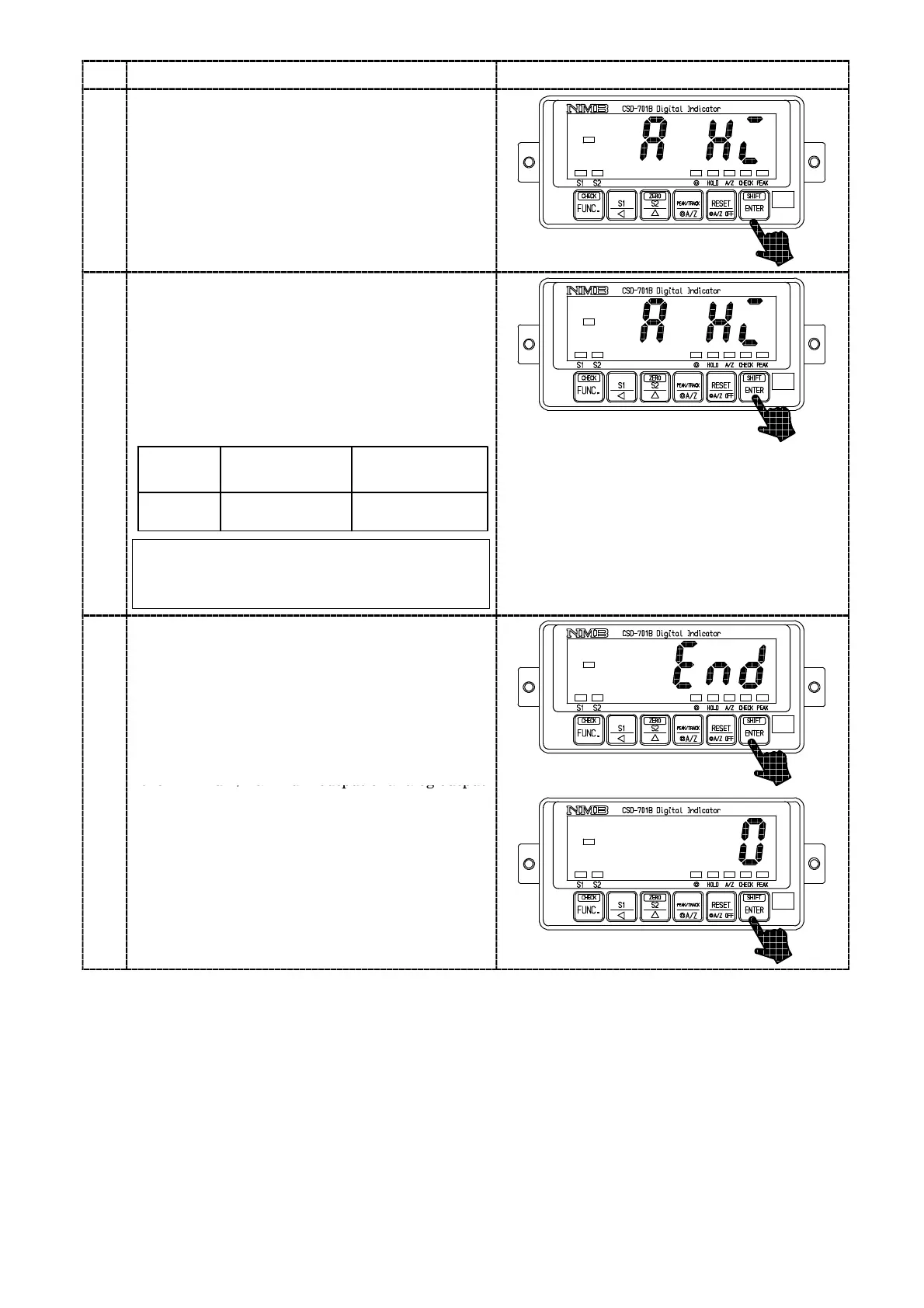

Press the  key.
The load display will flashing display showing
“A_HI”.
6
Press the  key.
The load display will flash on and off showing
“A_HI”.
At the same time, the analog output equivalent
to the maximum value of analog output will be
obtained.
Adjust so the output will become the maximum
value with the right keys.
Maximum
value
Voltage output
(Standard)
Current output
(Optional)
5 V 20 mA
 It can be increased continuously by the
continuity press of the key.
 key ：Decrease the analog output
 key ：Increase the analog output
7
Press the  key.
The load display will show “END”.
By pressing the
 key again, the
Measurement mode can be returned through the
VCAL mode, then the present load will be
shown.
At this moment, the result of fine adjustment on
the minimum/maximum output of analog output
7
te
u/a u
output
o
aaog
output
can be renewed.
