Mircom FX-MNS-6000 User Manual

143
This command builds the current job (this means taking data from the database and
transforming it into the data structures that are understood by the firmware) and prepares a

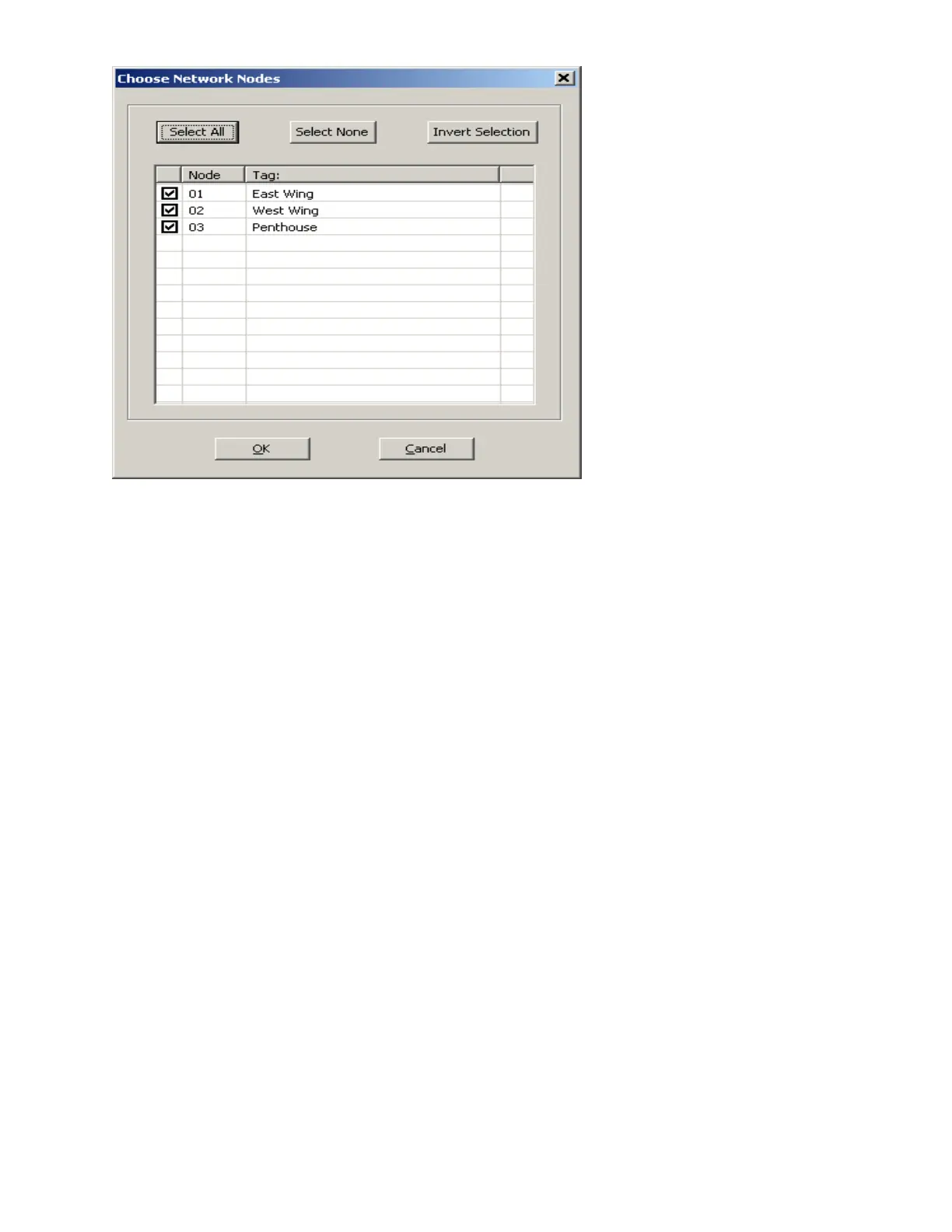

file for every CPU on each selected node.
Validation is automatically done as part of the build process.
Before the job is sent, the configurator interrogates the panel to discover what version of
the product it is running. The configurator is able to build the correct data structures for the
majority of older product versions. If the user is running a version of the configurator that is
out of date with respect to the firmware version, then it cannot build the job, and will
display an error message. The configurator builds the data structures to match the Product
Version. At this time, it also checks that each selected Node and CPU on the panel is online
and agrees with the information in the job's database. An error message is issued if there is
a mismatch.
Warning - Send Job over writes the job on the panel. If you do not have a copy of the
panel's current job on your database, you will be warned that it is about to be overwritten.
