52

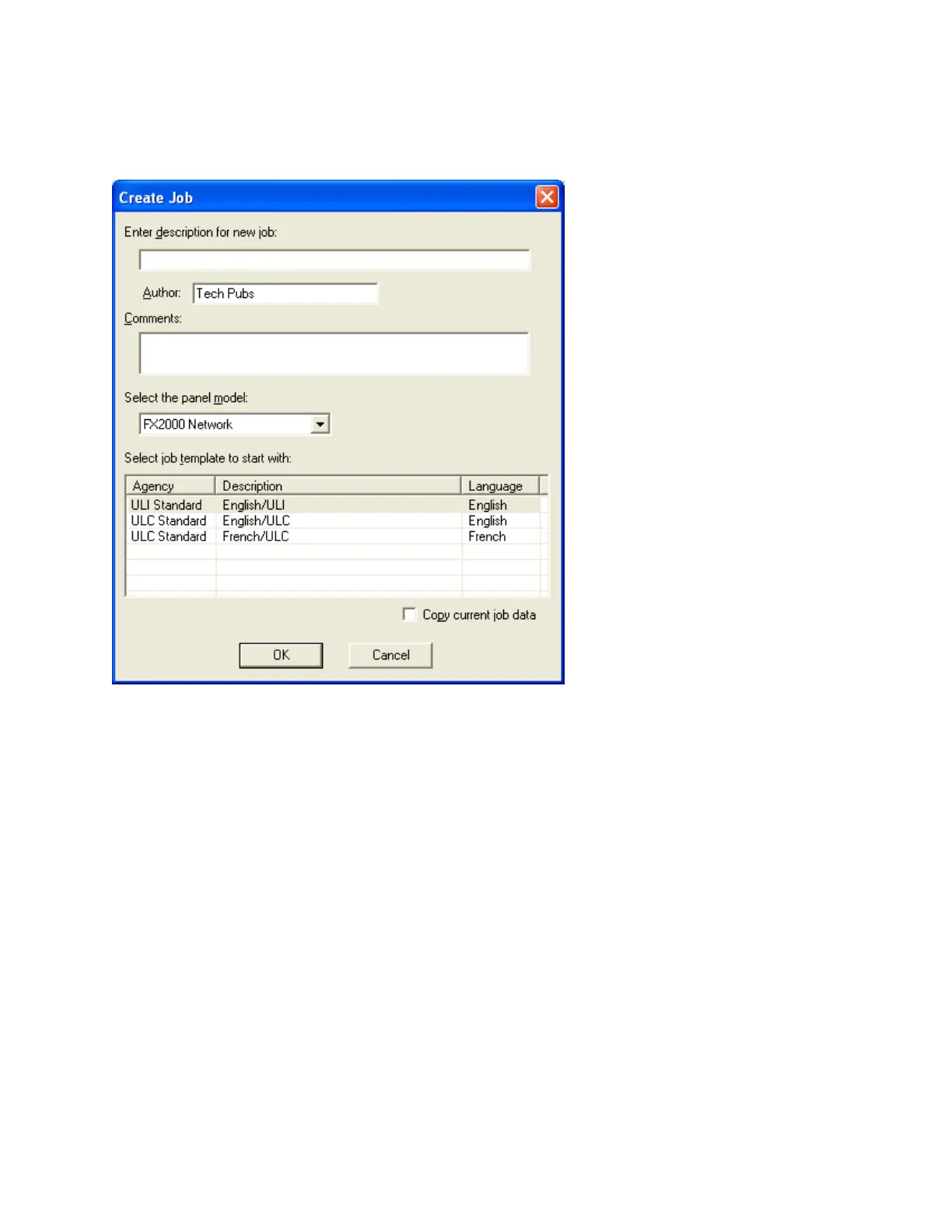

• Copy current job data As an alternative to choosing a standard template, check
this box to make a copy of the current job (which is presently open in the
configurator). In this case the Panel Model and Job Template controls are
disabled.
Note: This dialog is also shown when Get Job is used to retrieve a job from the panel and no
previous version of the job is stored on the database. The same dialog is used if the job
name on the panel and the database are the same, but the Product is different. You will be
prompted for a new, unique name. In these cases the Panel Model, Job Template and Copy
current job data controls are disabled.
Display Structure
This utility allows you to view the contents of a panel data structure. You have the option of
continually retrieving and displaying the same structure at a refresh rate you specify. You
can also log the results to a file.
To display a structure proceed as follows.
• Connect to the panel and click Display Structure under the Tools menu (you
must have selected Show Tools Menu under preferences). The following dialog
appears.
