22

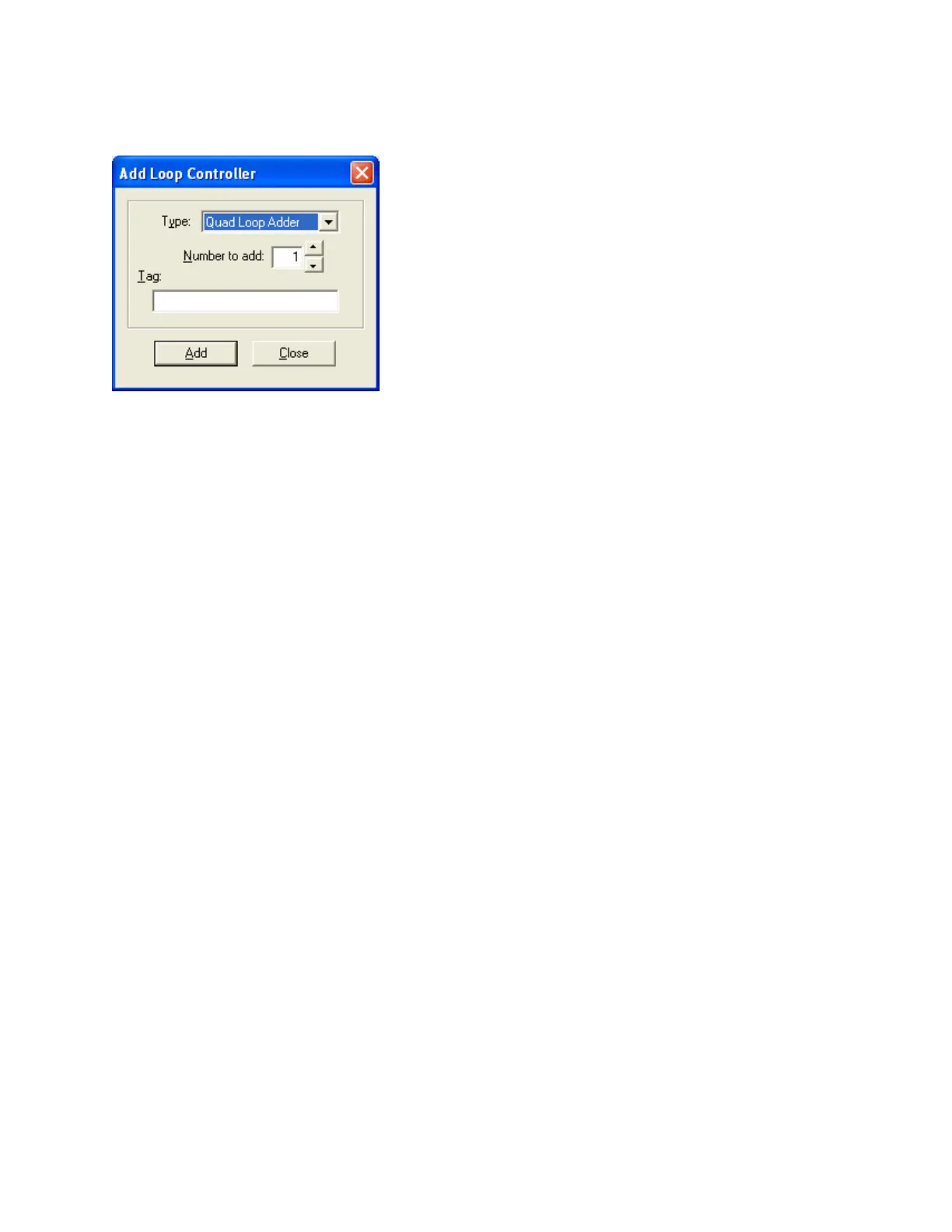

Add Loop Controller
This dialog appears in response to an Add Loop Controller command.
Type - Choose the type of adder you want to add. Different products may list different
options. Only the Quad Loop Adder is available in FleX-Net™ jobs.
Number to add - Enter the number of loop controllers you want to add. You can have a
maximum of 7 Quad Loop Adders per node, 6 if an Audio Controller is used.
Tag - Enter the optional tag to describe the loop controller.
Click Add to continue.
Loop controllers will be added, up to the capacity of the target panel. If the capacity would
be exceeded a message is displayed and the operation is stopped after the configurator has
added as many Loop Controllers as it can. If a tag was specified and more than one loop
controller was added, they will all receive the same tag. Tags can be edited in the Loop
Controller Information view
The dialog remains open so that you can add more.
Press Close to dismiss the dialog.
