16
Note: The Tools menu is only available if you checked the Show Tools Menu option. See
User Preferences

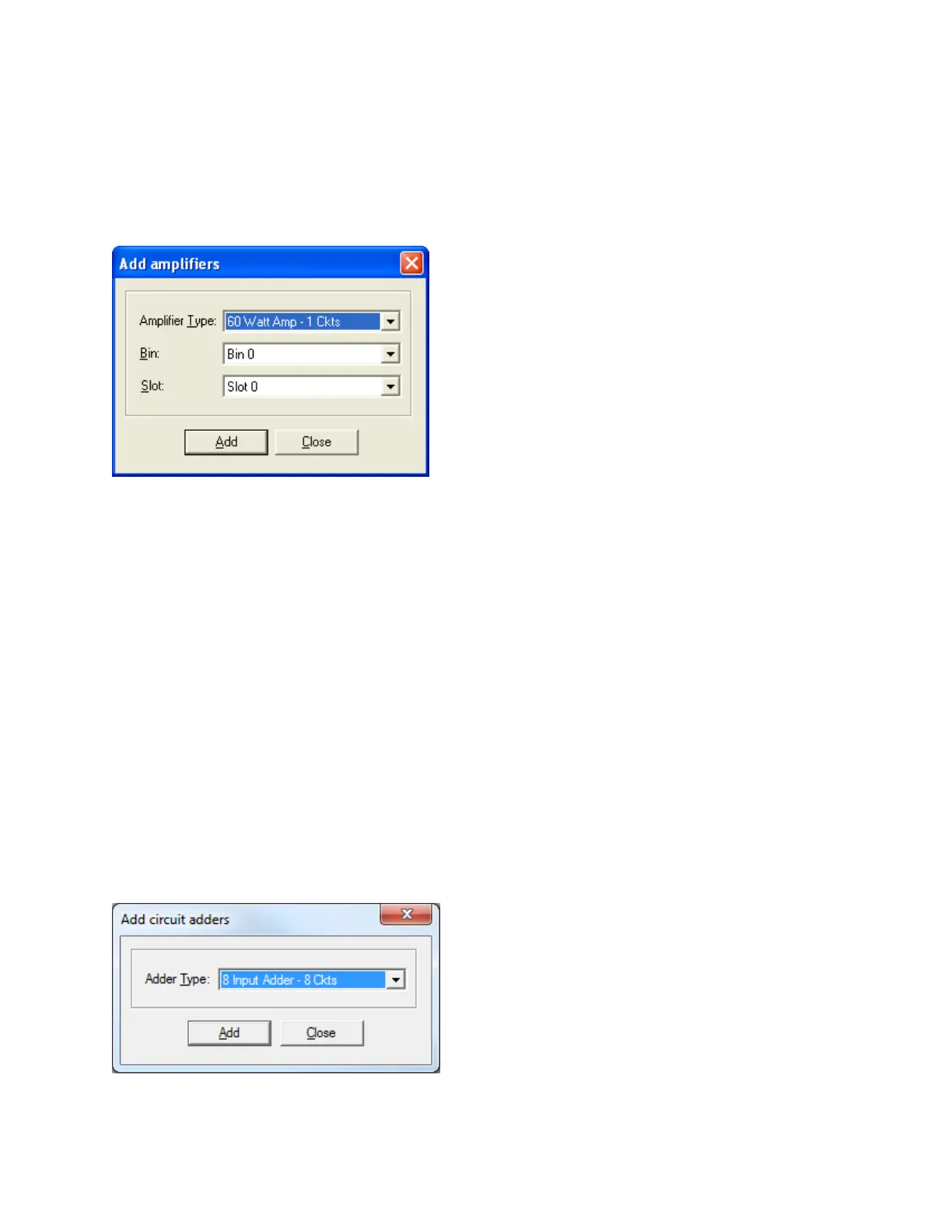

Add Amplifier
This dialog is displayed in response to an Add Amplifier command, which is available when
an Amplifier Loop is selected in the Job Tree.
Select the amplifier type. Choose from a single 60 Watt amp., 2*30 Watt or 4*15. If Splitter
Circuit Operation is selected in the Audio Setup dialog then each of those amplifiers will
also have a Split version available for selection.
Choose the bin and slot for the location of the amplifiers. The program will suggest the next
available, suitably aligned location, but you can choose another that does not immediately
follow those amplifiers that are already configured.
Click the add button to add the amplifiers. The dialog remains open so that you can add
more. The Slot and Bin locations are recalculated.
Add Circuit Adder
This dialog is displayed in response to an Add Circuit Adder command. That command is
available when a Conventional (hard wired) Loop is selected in the Job Tree, and the user
right click on the upper right pane.
