21
The Close button dismisses the dialog.

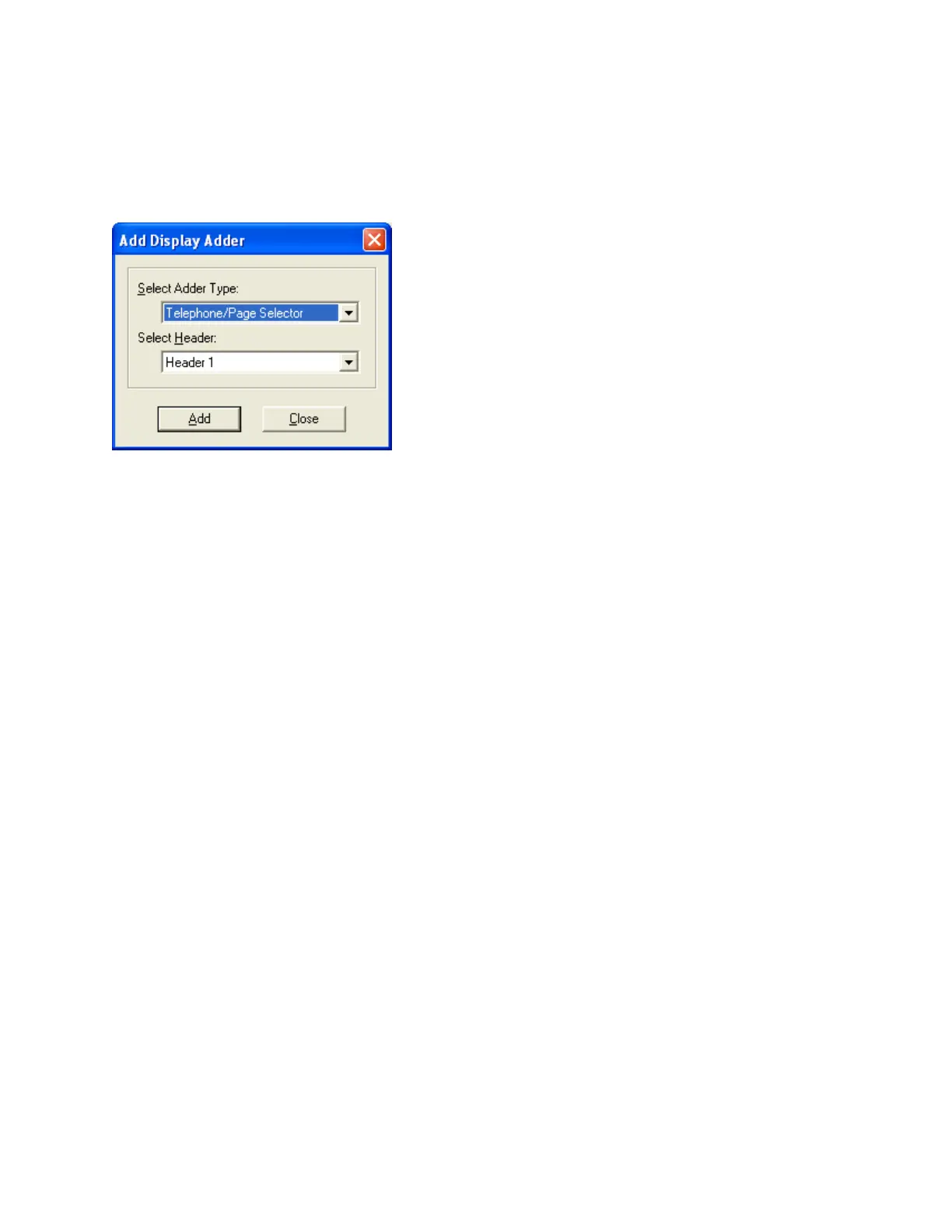

Add Display Adder
This dialog is displayed in response to an Add Display Adder command, which is accessible
when a Main Display or Remote Annunciator is selected in the Job Tree.
Select Adder Type - This control lists valid adder types.
The list only shows adder types that are allowed for the chosen annunciator.
Select Header - This control lists the headers (connectors) of the annunciator.
You may distribute display adders among the headers if an annunciator lists more than one.
Add - Press Add to insert an adder of the selected type. The Job Tree will be updated to
show the new adder. If the frame limit for the annunciator/header is exceeded an error
message will be displayed. Some Adders consume two or three frames.
The dialog remains open for adding more Display Adders. Press Close to dismiss the dialog.
