90
only show unassigned LEDs and Switches as available to be correlated. Correlating the
Common System Status to a display item changes the display item's type and assignment.
Correlations

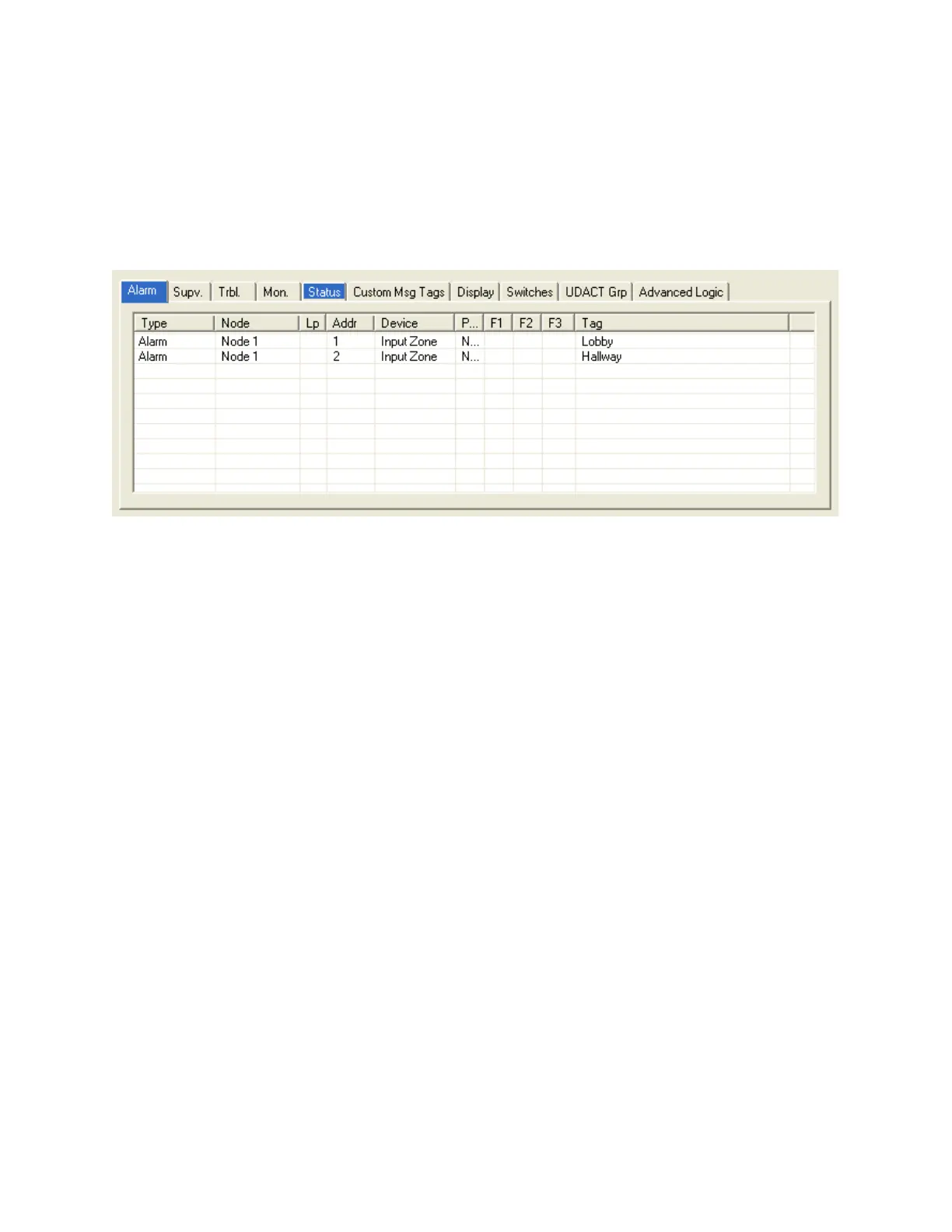

Most of the primary list views (shown in the top right pane) are used in combination with a
correlation view in the bottom right pane. The correlation view is a tabbed pane. Each tab
shows a different category of correlations (circuit, display LED, etc.).
Output Circuit Correlations
If the currently selected circuit(s) is/are outputs then the correlation view typically has tabs
for:
• Alarm Zones
• Supv Zones
• Trouble Zones
• Monitor Zones
• Proving
• Status
• Display Points (Output Zones and Bypass LEDs etc.).
• Switches
• UDACT Grp
• Advanced Logic
• Output Group
