85
Audio Controller Details

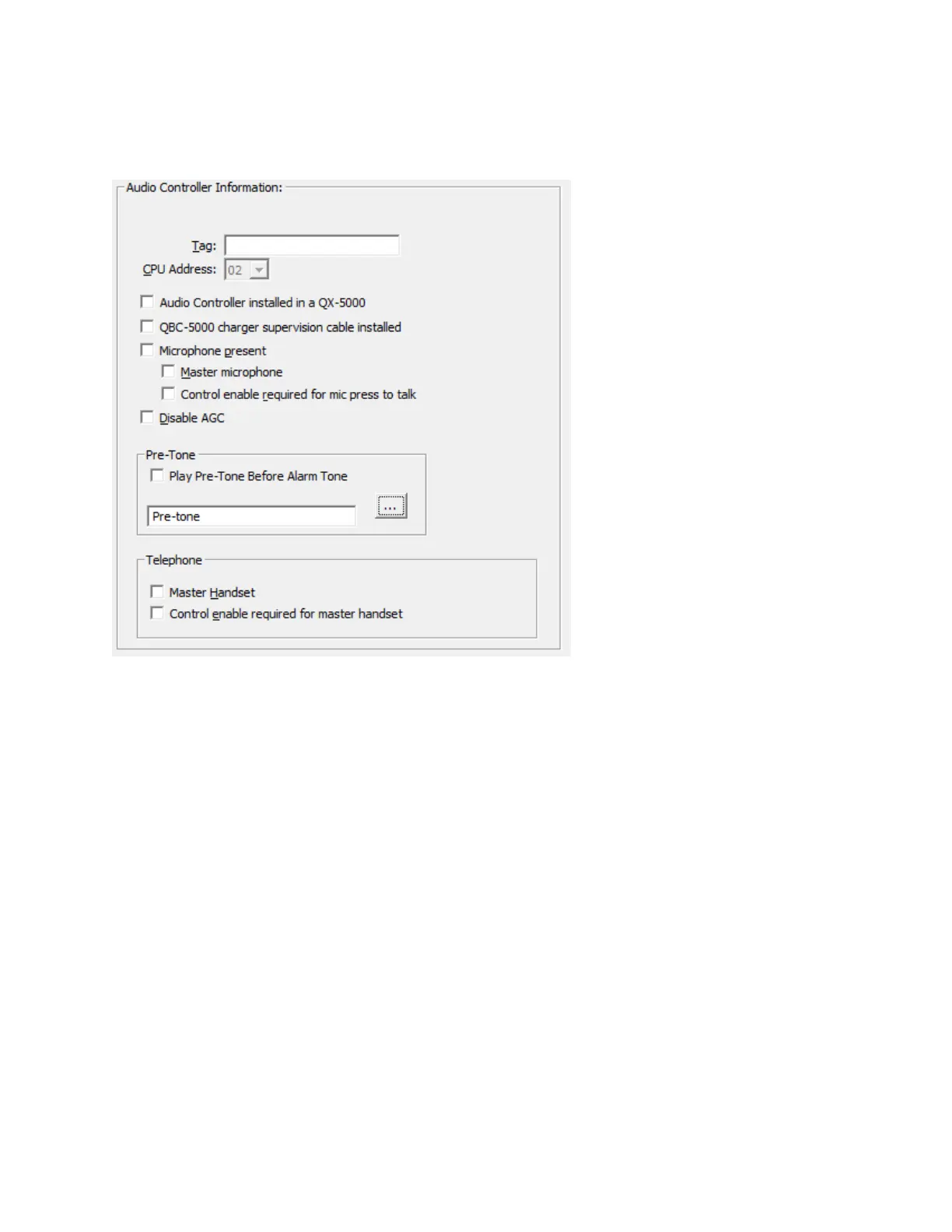

This form view appears in the top, right pane when an Audio Controller item is selected in
the Job Tree view.
Tag: Enter a description for the audio controller. This will appear in the Job Tree
view.
CPU Number: Enter the CPU address for the audio controller. A drop down
combo box lists the available addresses.
ANC-5000 installed in a QX-5000 box: check this box if the amplifier bin
arrangement is that of the QMB-5000B. The legacy QMB-5000B has seven
amplifier slots. If the box is not checked the QMB-5000N is assumed. It has only
four amplifier slots. During conversion from QMB-5000N to QMB-5000B any
existing amplifiers in expansion bins are re-arranged to first fill the additional
bins of the QMB-5000B. During conversion from QMB-5000B to QMB-5000N
any existing amplifiers in the base unit's extra slots are moved to the expansion
bins.
QX-5000 charger cable installed: check this box if the amplifier battery charger
is a legacy QBC-5000B. Leave the box un-checked if a QBC-5000N charger is in
use. WX-518 cable is required for the QBC-5000N operation (charger
