ITTING THE COMMUNICATION SERVER
CHAPTER 4 INSTALLATION

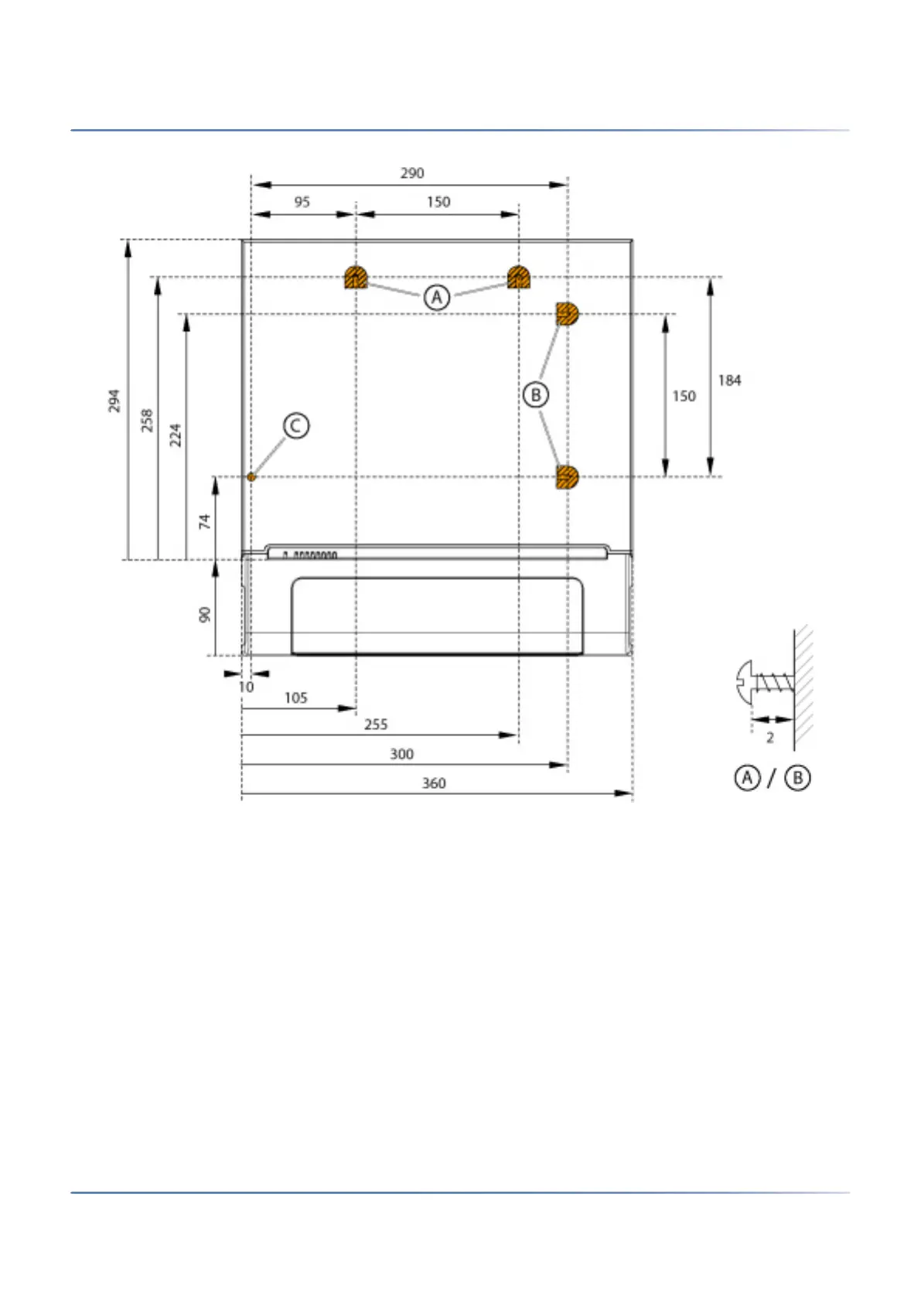

Figure 4.4: Drilling plan for wall mounting
All dimensions in mm
Drilling template
The packaging box of the communication server can also be used for marking out the drill holes. To do
so it is best to detach the part of the inner packaging box that contains the drill holes.
NOTE: The holes on the cardboard box are not labelled.
