Mitel SMB Controller User Manual

149
I
NSTALLING, POWERING, CONNECTING AND REGISTERING TERMINALS
CHAPTER 4 INSTALLATION
Depending on the power requirements different classes are defined in the IEEE 802.3af standard. The
following table provides information on the class allocation of the IP system phones.
You can obtain information on how to operate and register the IP system phones on a MiVoice Office 400
communication server in the WebAdmin online help.
Mitel 6800/6900 SIP phone series
Mitel SIP phones are platform-independent phones with a wide range of features. They can also be
perfectly integrated into one of the Mitel Platforms and used as a system phone. Mitel SIP Phones on
MiVoice Office 400 first support MiVoice Office 400 features and have a separate user's guide. Many of
the device-specific functions are less significant or are not used at all. Please read the Mitel SIP admin-
istration instructions if you wish to carry use device-specific functions or carry out device-specific settings.
Device-specific installation instructions are available for installing the phones. You can obtain information
on how to register a Mitel SIP phone on a MiVoice Office 400 communication server in the WebAdmin
online help.

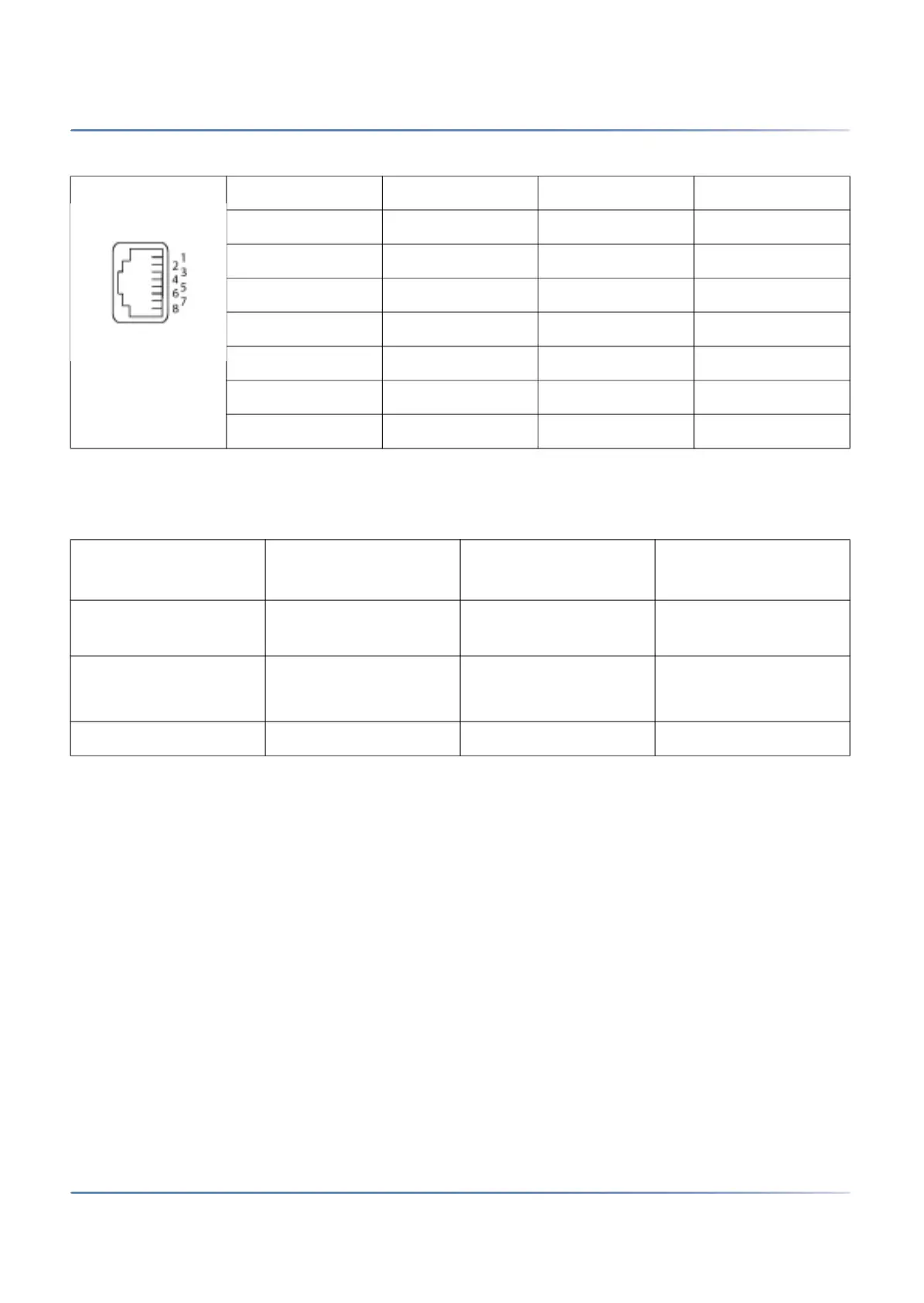

1 Rx DC+ —
2 Rx DC+ —
3 Tx DC- —
4 — — DC+
5 — — DC+
6 Tx DC- —
7 — — DC-
8 — — DC-
Table 4.42:PoE class allocation
Class
Max. load, PSE
1
1. PSE (Power Source Equipment) = power supply device, e.g. a switch
Max. power
requirement, PD
2
2. PD (Powered Device) = power consumer, e.g. an IP system phone
IP system phones
1 4.0 W 0.44...3.84 W MiVoice 5360 IP,
MiVoice 5361 IP
2 7.0 W 3.84...6.49 W
MiVoice 5370 IP
3
,
MiVoice 5380 IP
4
3. including an MiVoice M530 or MiVoice M535 expansion keypad
4. including up to three MiVoice M530 or MiVoice M535 expansion keypads
3 15.4 W 6.49...12.95 W
Table 4.41:Power over Ethernet (Continued) (Sheet 2 of 2)
