NSTALLING, POWERING, CONNECTING AND REGISTERING TERMINALS
CHAPTER 4 INSTALLATION
Standard SIP phones and standard SIP terminals
For information on installation, powering and connection, please refer to the installation instructions of the
corresponding phones and terminals. Information on how to register Mitel or third-party standard SIP
phones and standard SIP terminals as internal users in MiVoice Office 400 is given in WebAdmin.
Mobile/external phones
The integration of mobile/external phones in the MiVoice Office 400 communication system is described
in the System Manual "System Functions and Features".
OIP and other applications
Mitel Open Interfaces Platform (OIP) is also available as OIP Virtual Appliance and can be installed on
the same server as the Virtual Appliance communication server. The operating requirements and instal-
lation instructions for the OIP applications MiVoice 1560 PC Operator and Mitel OfficeSuite are described
in the "Mitel Open Interfaces Platform" System Manual.
Digital system phones
General information
Accesses
The connections on the underside of the system phones are identified by the symbols. The meaning of
the symbols is described in the corresponding operating instructions.
DSI terminal interface
NOTE: The total length of the cables from the communication server to the system phone must not be less
than 10 m.
Terminal selection
Two system phones can be connected to a DSI interface (DSI-AD2 only). The system can only differen-
tiate the two system phones by the position of the address switch on the phone. The following settings
are possible (TSD = Terminal Selection Digit):

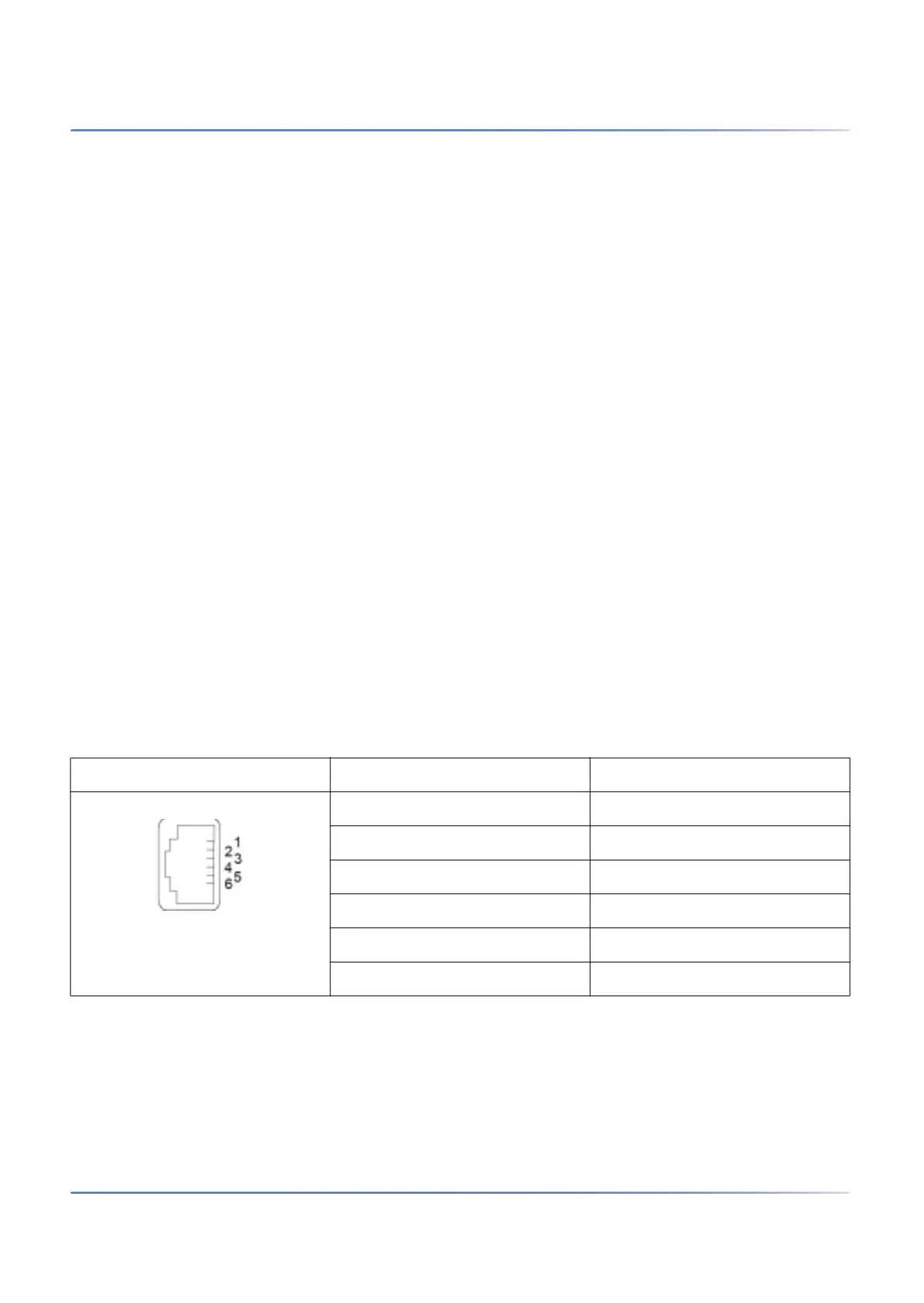

Table 4.43:DSI interface on the phone
RJ45 socket Pin Signal
1 —
2 —
3 b
4 a
5 —
6 —
