CHAPTER 4 INSTALLATION

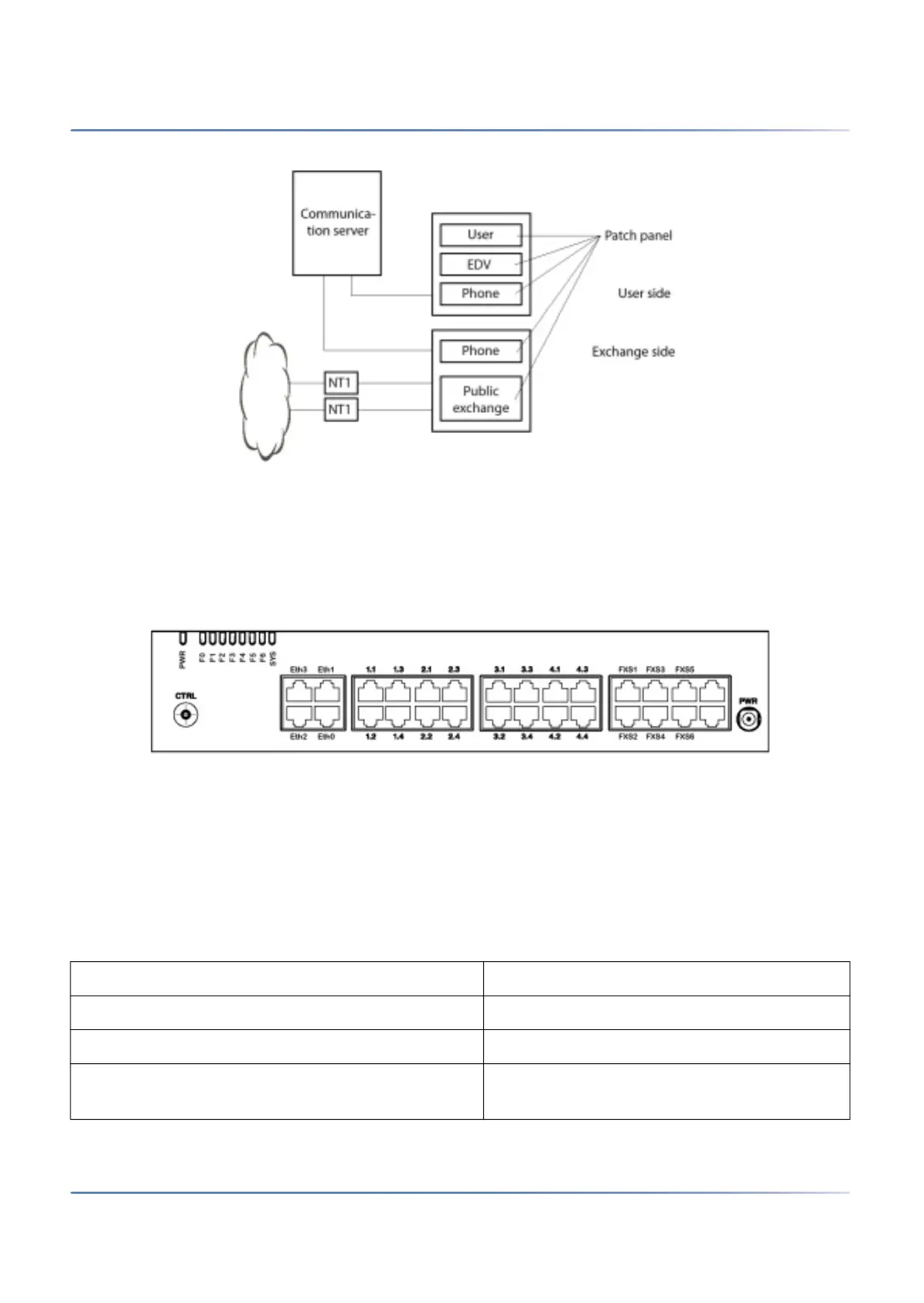

Figure 4.17: Connecting to a UBC via wiring centre (example)
Cabling interfaces
All the interfaces are routed to the front panel and are therefore accessible without opening the commu-
nication server.
Figure 4.18: Interfaces on the front panel with port designation (Mitel SMBC)
Port addressing
A port address is always of the type x.y. (x is the number of the card slot, and y, the port number.)
The slot numbering begins with 0 (=mainboard) and ends with 4 (=IC4)
With BRI-S interface and DSI interface addresses, the terminal selection digit (TSD) is relevant, in addi-
tion to the slot and port numbers. This is always -1 in analogue terminal interfaces.
Table 4.6:Examples of interface addressing
Slot Port address
Mainboard; FXS interface x.5 0.5
Interface card on slot IC1; interface x.3 1.3
Terminal with TSD2 on interface card in IC3;
interface x.4
3.4-2
