CHAPTER 3 EXPANSION STAGES AND SYSTEM CAPACITY
CAUTION: Do not use other interface cards or interface cards with older hardware versions than listed in
the table above. The interface cards or even the communication server could be damaged.
Wiring adapter
The wiring adapters route the interfaces of the various interface cards with the right connection diagram
to the RJ45 sockets on the front panel. The adapters are fitted to WA1...WA4 sockets.

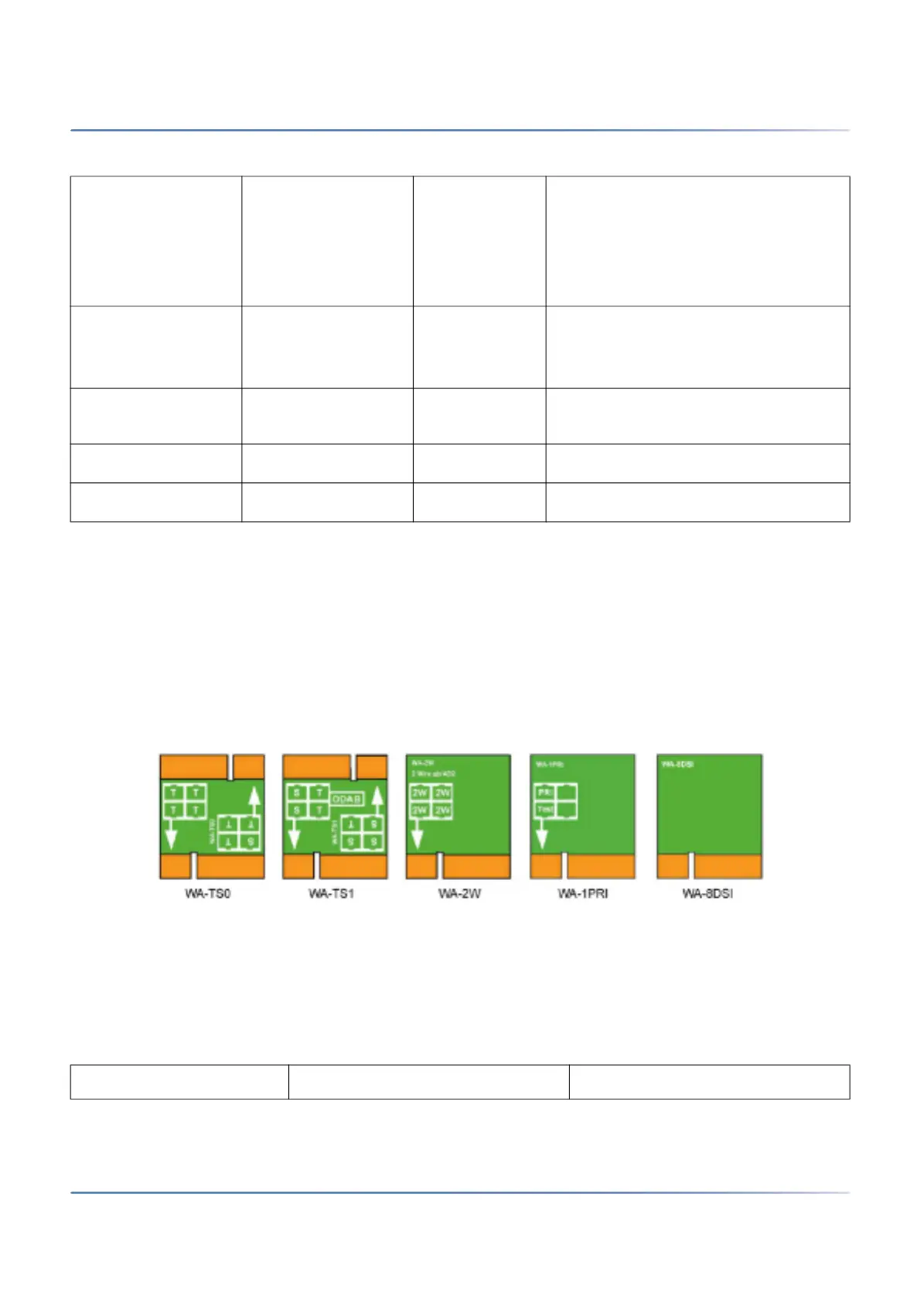

Figure 3.5: Types of wiring adapters
WA-8DSI not yet supported with Release 6.0.
There are different types of wiring adapters, of which two (WA-TS0 and WA-TS1) have different plug-in
orientations. This determines the ratio of BRI-S interfaces to BRI-T interfaces.
NOTE: A configuration with wiring adapter is mandatory. An incorrect or missing configuration generates
the corresponding error display on the LED display (F1...F4).
TIC-1PRI 1 PRI-E1 4 • Contains 30 B channels
• 10 B channels can be used
licence-free
• Not usable in USA/Canada for the
public network
TIC-4TS 3 BRI-S/T + 1 BRI-T 4 • Three BRI-T interfaces configu-
rable to BRI-S
• One fixed BRI-T interface
TIC-2TS 2 BRI-S/T 4 • Both BRI-T interfaces configu-
rable to BRI-S
TIC-4AB
1
4 FXO 2
TIC-2AB
a
2 FXO 4
1. Card with hardware version >= "1A" only. Card must not be used in USA/Canada.
Table 3.13:Wiring adapter (Sheet 1 of 2)
Type Use with... Remarks
Table 3.12:Trunk cards (Continued) (Sheet 2 of 2)
