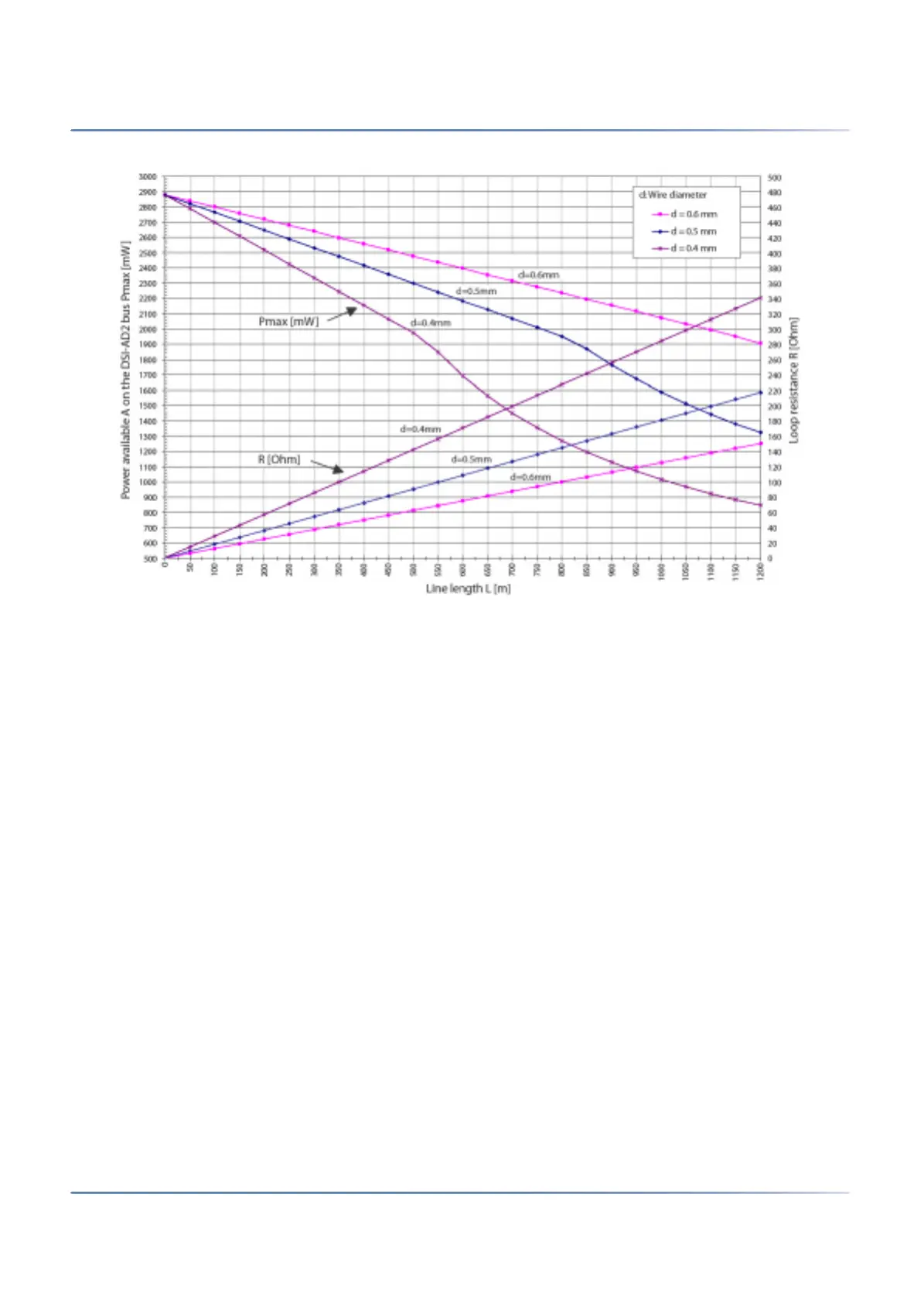

Figure 4.32: Power available case A on the DSI-AD2 bus
Power available case B:
Applies to the SB-4+/SB-8 DECT radio units with hardware version "-2" and system phones of the Dialog
4200 series.
