ABLING INTERFACES

CHAPTER 4 INSTALLATION

Connection sockets

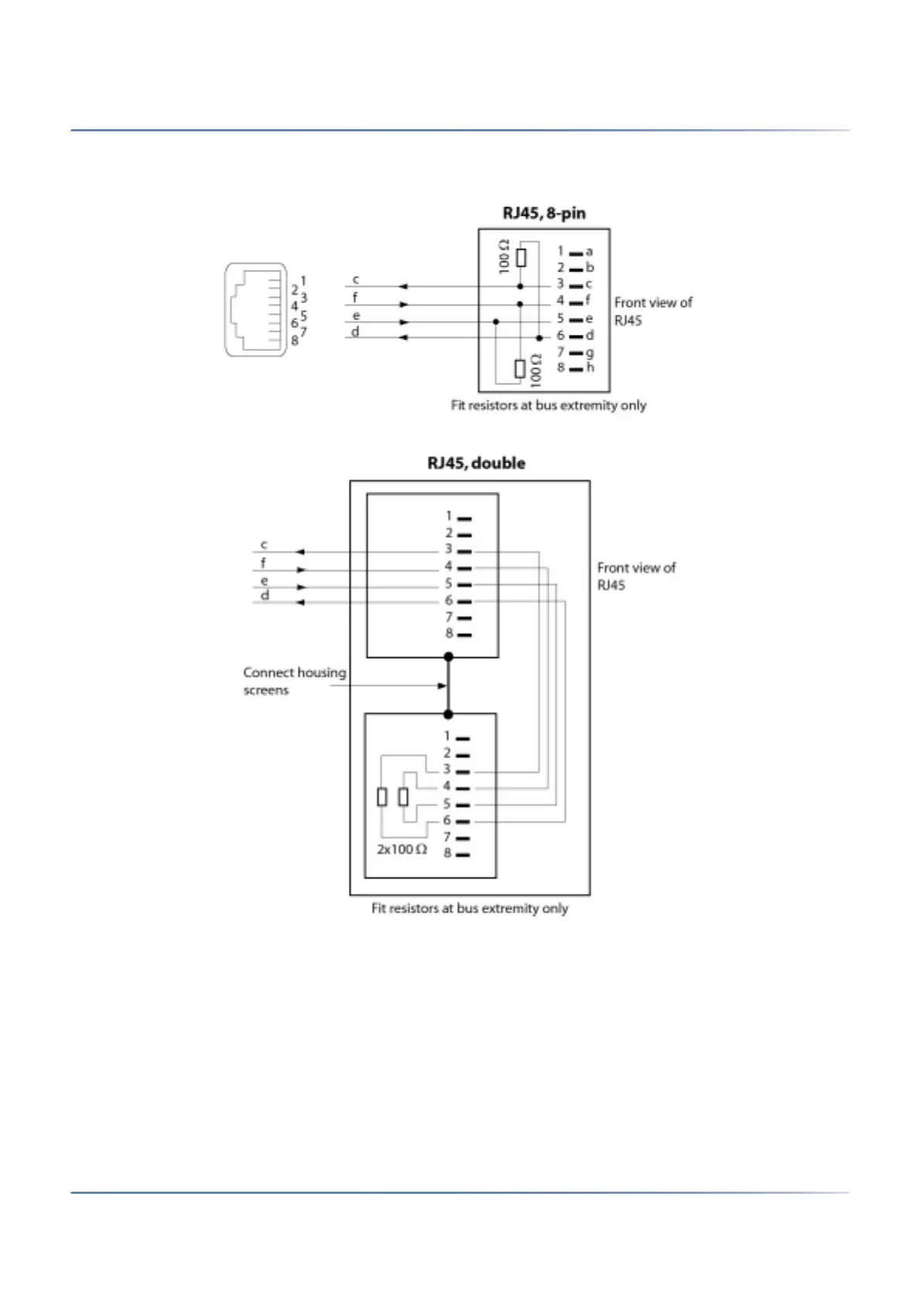

Figure 4.39: RJ45 connection, single socket

Figure 4.40: RJ45 connection, double socket

Installation rules

NOTE: Circuit type as per EN/IEC 60950: SELV

Always terminate the bus extremity with 2 ´ 100 W (0.25 W, 5%)!
