Mitel SMB Controller User Manual

17
M
ITEL SYSTEM PHONES AND CLIENTS
CHAPTER 2 SYSTEM OVERVIEW
• Intuitive and user-friendly
menu prompting with
Foxkey and central naviga-
tion key
• All the system features can
be used
• Excellent voice quality due
to Mitel Hi-Q™ wideband
audio technology
• Automatic update of the
phone software
• Connection via Ethernet
• Powered via Ethernet (POE)
or power supply
• Wall mounting possible
• Web configuration inter-
face
MiVoice 5370 IP/MiVoice 5380
IP:
• Expansion key modules can
be connected
• Headset socket with DHSG
standard
• Integrated switch for
connecting a PC
MiVoice 5380:
• Backlit display
• Optional Bluetooth module
• Can be used as reception
phone in hospitality envi-
ronments
• Can be used as operator
console when combined
with expansion key
module
NOTE: The MiVoice 5360 IP IP system phone is supported as before.

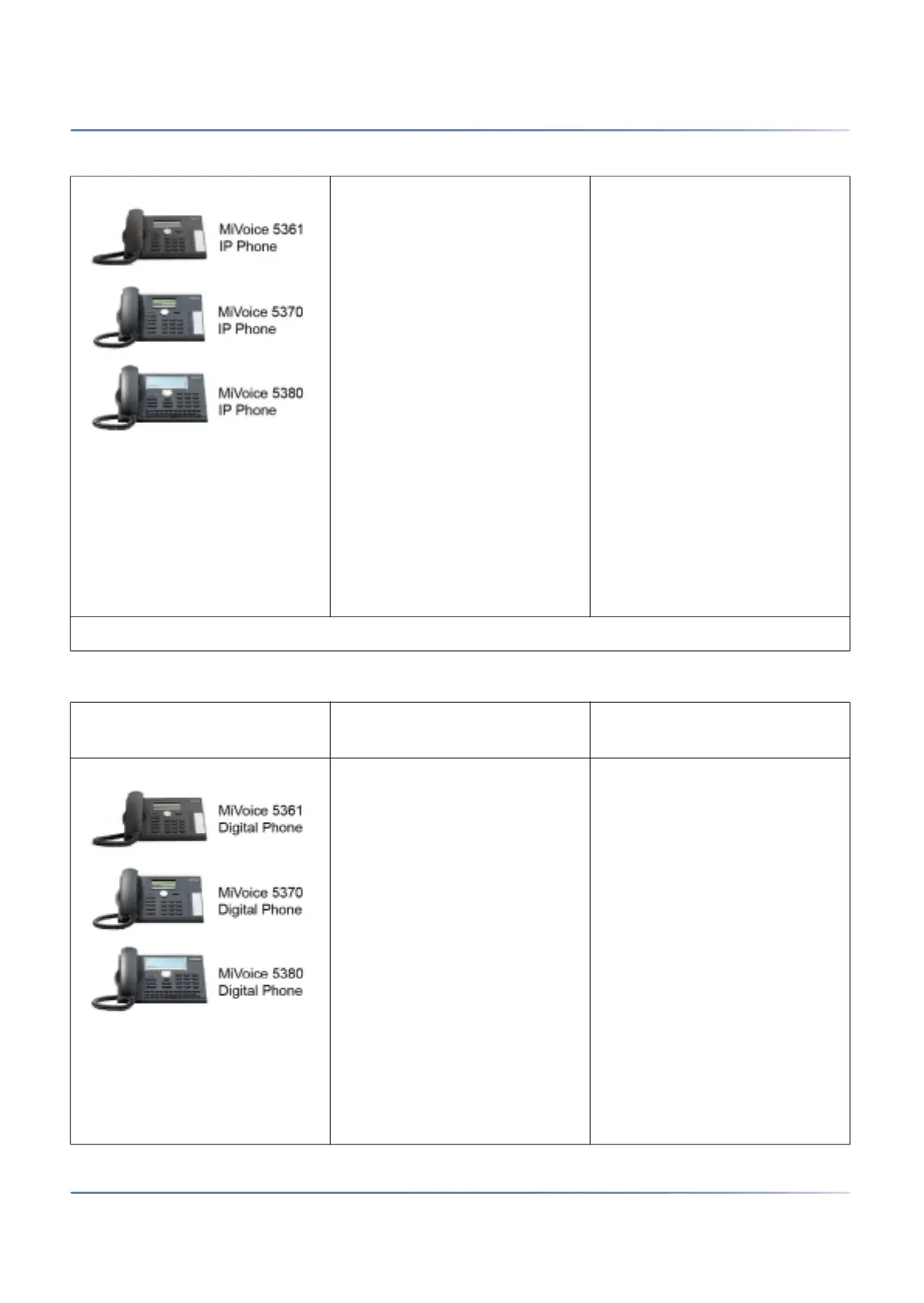

Table 2.6:Digital system phones of the MiVoice 5300 family
Product Principal common features Additional model-specific
features
• Intuitive and user-friendly
menu prompting with
Foxkey and central naviga-
tion key
• All the system features can
be used
• Automatic update of the
phone software
• Connection via DSI inter-
face
• Two phones can be
connected per DSI inter-
face
• Powered via DSI bus or
power supply
• Wall mounting possible
MiVoice 5370/MiVoice 5380:
• Expansion key modules can
be connected
• Headset socket with DHSG
standard
MiVoice 5380:
• Backlit display
• Optional Bluetooth module
• Can be used as operator
console when combined
with expansion key
module
Table 2.5:MiVoice 5300 IP series IP system phones (hardphones) (Continued) (Sheet 2 of 2)

Mitel SMB Controller Specifications

General

Category	Controller
Target Market	Small and Medium Businesses (SMB)
Type	Network Controller
Protocols Supported	SIP, H.323, MGCP
Security Features	Encryption, Authentication, Firewall
Management	Web-based GUI, SNMP
Network Interfaces	Ethernet (10/100/1000 Mbps)
