Mitsubishi F700 Series User Manual

194
Selection of operation mode and
operation location

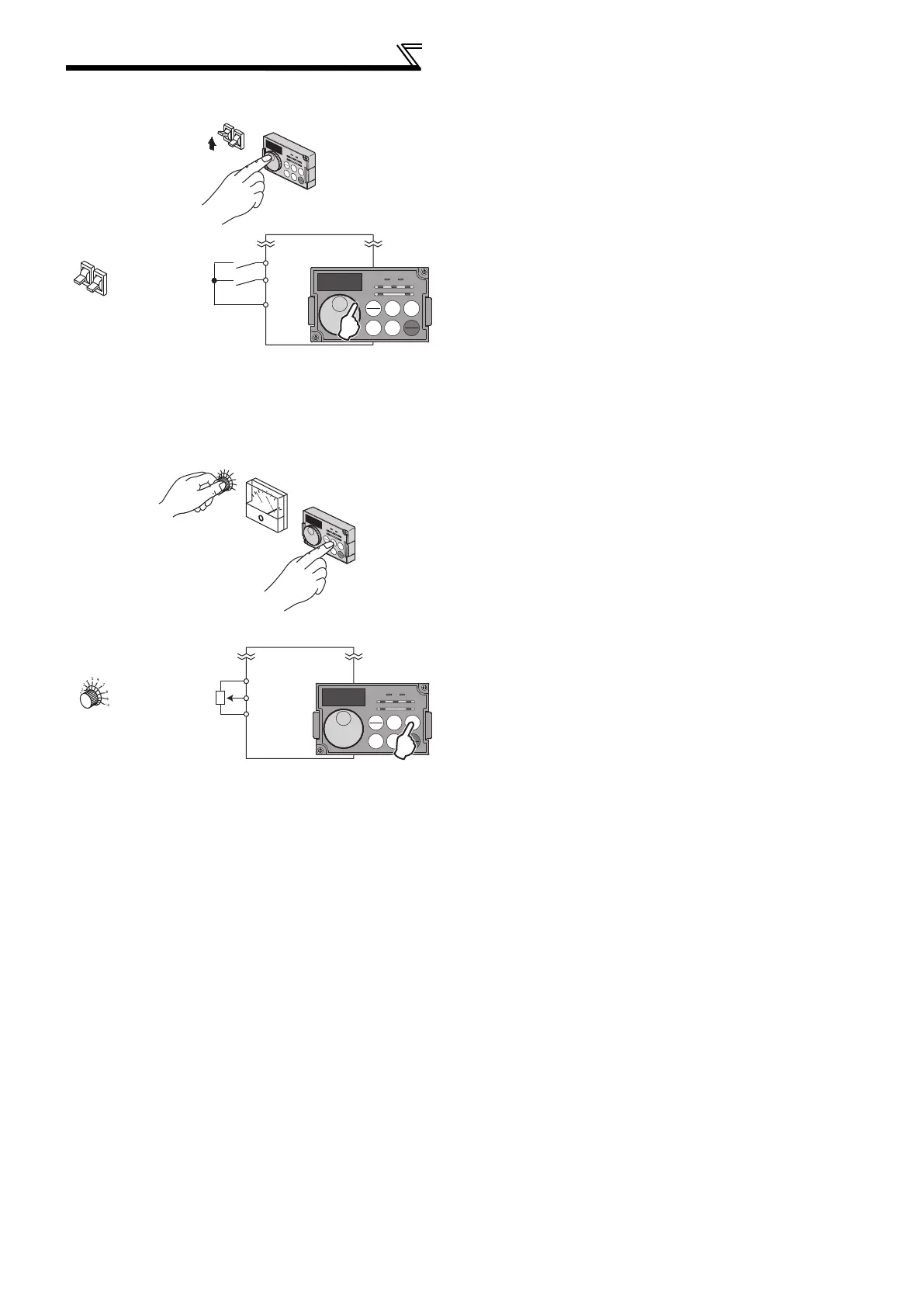

(6) PU/External combined operation mode 1 (setting "3")
(7) PU/External combined operation mode 2 (setting "4")
 Select the PU/external combined operation mode 1
when applying frequency command from the operation
panel (FR-DU07) or parameter unit (FR-PU04/FR-
PU07) and inputting the start command with the
external start switch.
 Select "3" for Pr. 79. You cannot change to the other
operation mode.
 When a frequency is input from the external signal by
multi-speed setting, it has a higher priority than the
frequency setting from the PU. When AU is ON, the
command signal to terminal 4 is used.
 Select the PU/External combined operation mode 2
when applying frequency command from the external
potentiometer, multi-speed or JOG signal and inputting
the start command by key operation of the operation
panel (FR-DU07) or parameter unit (FR-PU04/FR-
PU07).
 Select "4" for Pr. 79. You cannot change to the other
operation mode.
Operation panel
(FR-DU07)
PC
STF
STR
Forward rotation
start
Reverse rotation
start
3
4
5
6
7
8
9
10
Hz
Operation panel
(FR-DU07)
5
10
2
Inverter
Frequency setting
potentiometer

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
