Mitsubishi F700 Series User Manual

272
PID control

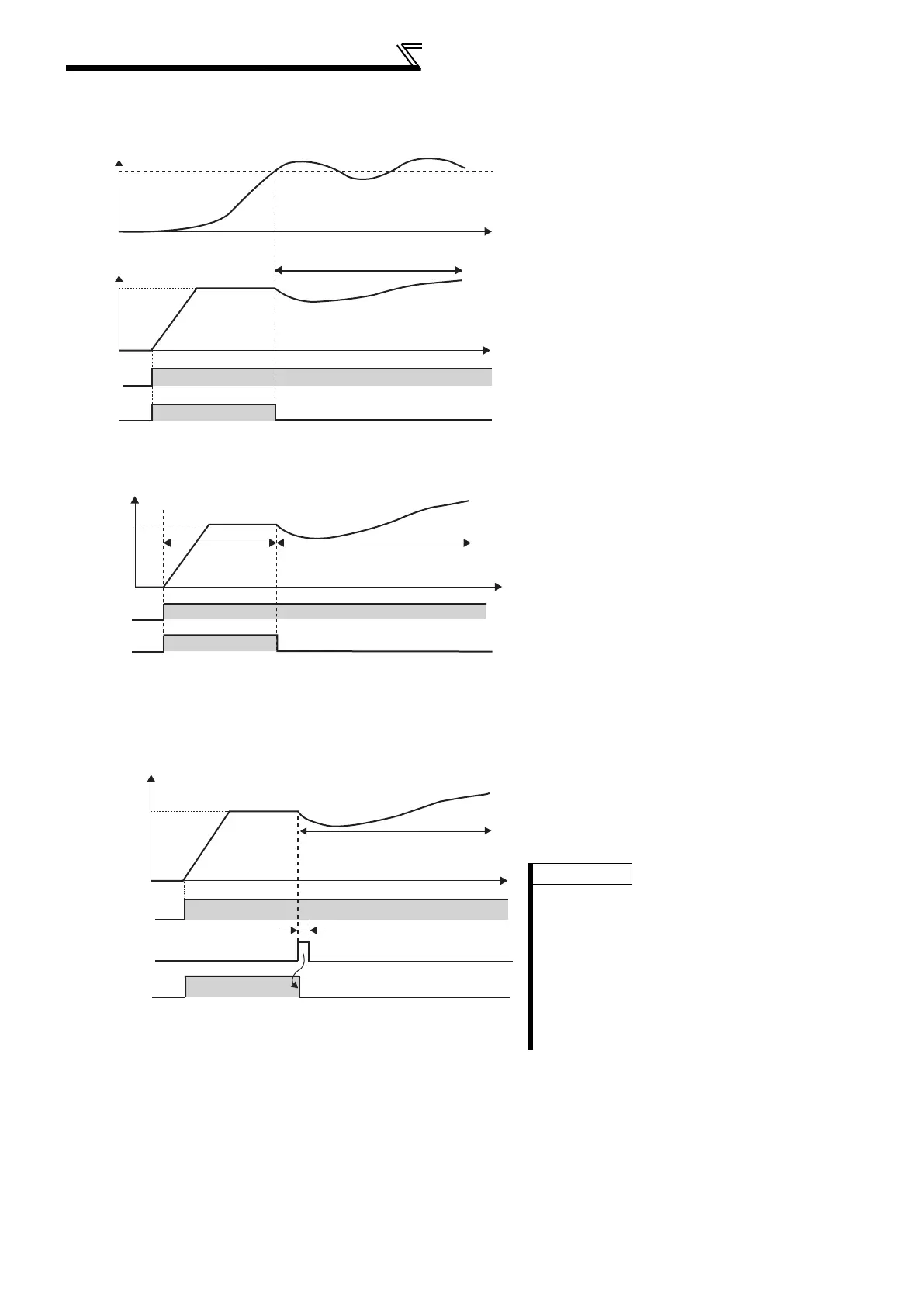

Pre-charge operation
 When the measured amount reaches the pre-charge ending level
When the measured amount reaches the Pr. 761
setting or higher, the pre-charge operation
ends, and PID control starts.
Pr. 761 Pre-charge ending level
 9999
 When the elapsed time reaches the pre-charge ending time
When the pre-charging time reaches the Pr. 762
setting or higher, the pre-charge operation
ends, and PID control starts.
Pr. 761 Pre-charge ending level
 9999
Pr. 762 Pre-charge ending time
 9999
 When the signal is input to end the pre-charge operation
When the X77 signal turns ON, the pre-charge
operation ends, and the PID control starts.
(If a start command is given while the X77
signal is ON, the pre-charge operation is not
performed, and PID control is performed from
the beginning. )
Pr. 178 to Pr. 189
 X77 assigned
Time
Time
Pr.127
0 Hz
STF
PID control
Pr.761
Measured value[PSI]
Output frequency [Hz]
Output signal
Y49
Pre-charge
Ending level
Pr.127
0 Hz
STF
PID control
Pr.762
Output frequency [Hz]
Output
signal
Y49
Pre-charge
Ending time
Time
Pre-charge end
command
X77
Pr.127
0 Hz
STF
PID control
Output frequency [Hz]
Output signal
Y49
Pre-charge
Time
20ms or more
REMARKS
 If the X77 signal stays ON, the pre-charge
operation is not performed after the PID
output suspension (SLEEP). To enable the
X77 signal function after the PID output
suspension (SLEEP), confirm the during pre-
charge operation signal (Y49) = OFF, and
turn OFF the X77 signal.
 To perform PID control immediately after the
PID output suspension (SLEEP), keep the
X77 signal ON until the PID control ends.

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
