Mitsubishi F700 Series User Manual

273
PID control
4
PARAMETERS

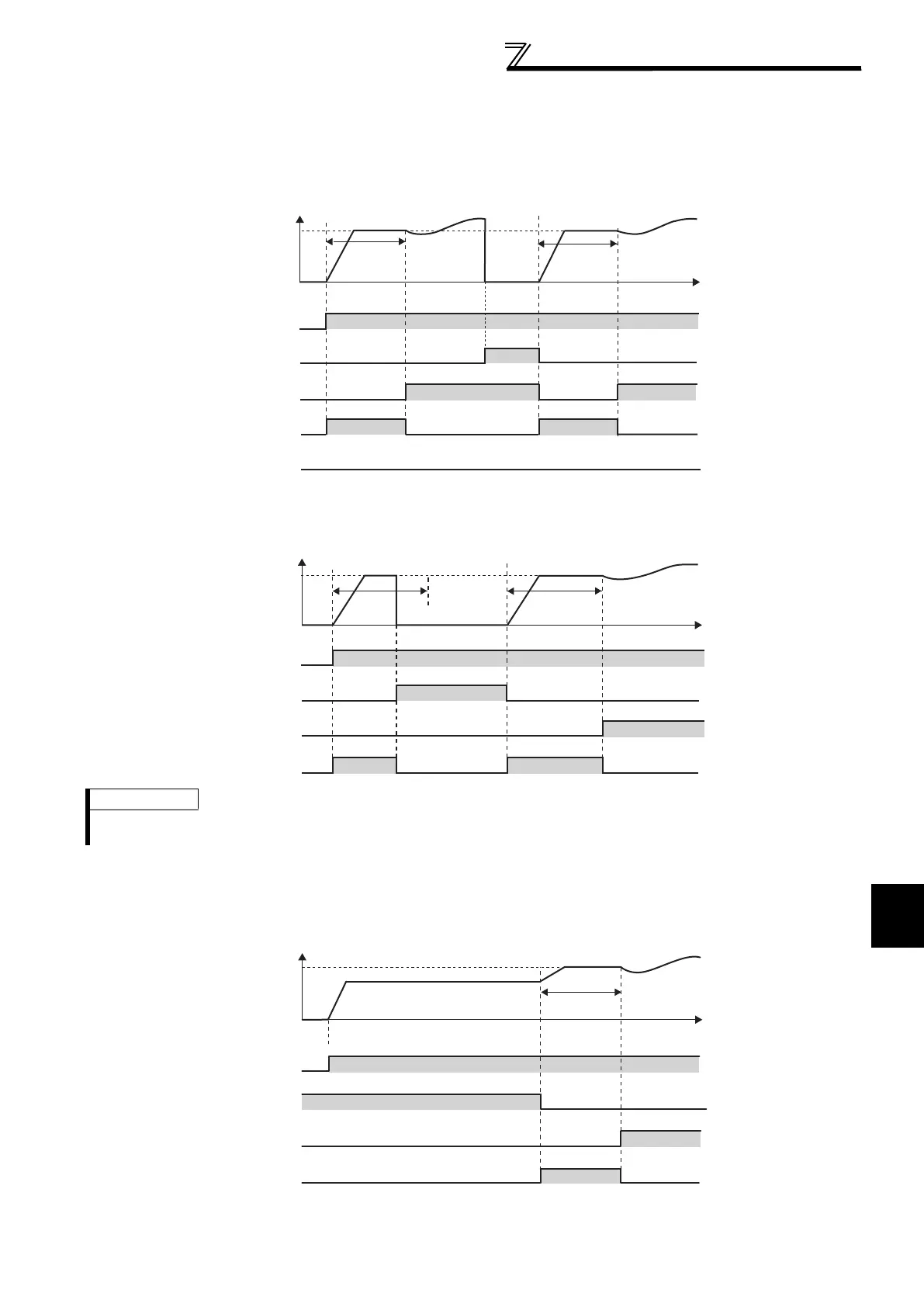

Pre-charge operation at output shutoff
When the pre-charge operation is valid, the pre-charge operation is performed at the output shutoff cancellation.
(The pre-charge operation is also performed even if the automatic restart after instantaneous power failure is valid.)
When the operation method is changed to PID control from another control
When the control method is changed to PID control from a control with higher priority in frequency command (multi-
speed setting, Jog operation, etc.), the motor is accelerated/decelerated until its speed reaches the automatic
switchover frequency, and the pre-charge is performed.
When the output is shutoff during PID control, which is performed after the pre-charge operation
When the output is shutoff during the pre-charge operation
REMARKS
If the output shutoff is canceled while the X77 signal is ON, the pre-charge operation is not performed and PID control is
performed.
STF
MRS
X77
OFF
Y49
Pre-charge
Pre-charge
Y47
Output signal
PID control
PID control
Pr.127
0Hz
Pr.762
Pr.762
Output frequency[Hz]
Output
shutoff
Pre-charges again.
Time
Pr.127
0Hz
STF
MRS
Pr.762
Pr.762
Y47
Output signal
PID control
Y49
Pre-charge
Pre-charge
Output frequency [Hz]
Pre-charge
Output shutoff
Time
Pr.127
0Hz
STF
Pr.762
Y49
Pre-charge
Multi-speed operation
RH
Y47
Output signal
PID control
Time
