Mitsubishi F700 Series User Manual

374

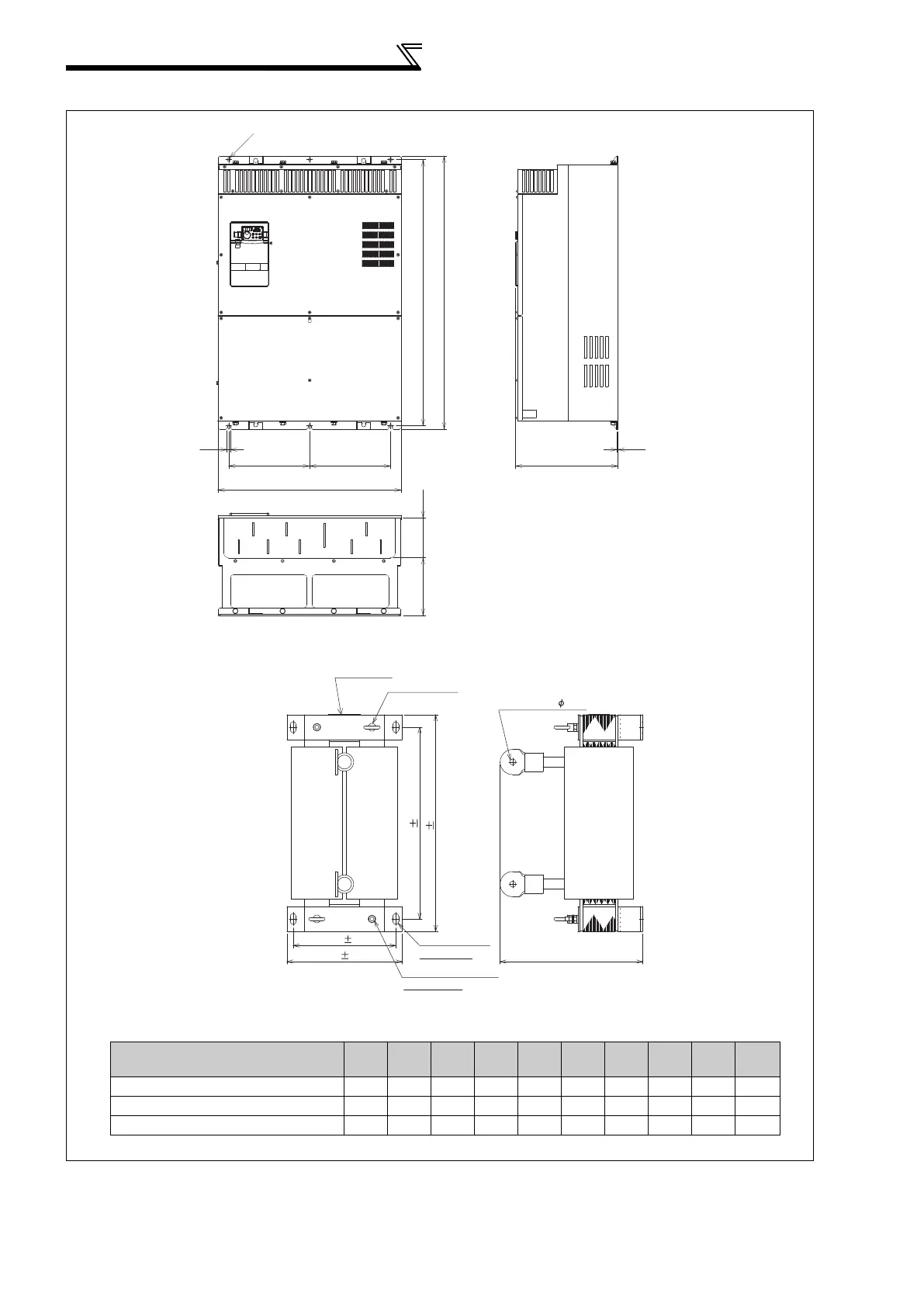

Outline dimension drawings
 FR-F740-05470, 06100, 06830-EC
 DC reactor supplied
(Unit: mm)
R/L1
S/L2
T/L3
N/-
P1
P/+
U
V
W
984
1010
12
300
300
680
3.2
380
148214
3-φ12 holes
DC reactor Model W W1 H H1 D S S1 S2 
Mass
(kg)
FR-HEL-H280K (FR-F740-05470-EC) 190 165 440 400 255 M8 M8 M8 M16 38
FR-HEL-H315K (FR-F740-06100-EC) 210 185 495 450 250 M10 M8 M8 M16 42
FR-HEL-H355K (FR-F740-06830-EC) 210 185 495 450 250 M10 M8 M8 M16 46
E
P1
P
P1
P
H1 10
H 10
Earth (ground) terminal
(for S1 screw)
Rating plate
2-S2 eye nut
* Remove the eye nut after installation of the product.
4-installation hole
(for S screw)
Within D
2-terminal (for bolt)
W1 1
W 2

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
