Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
89
IB-1501269-J

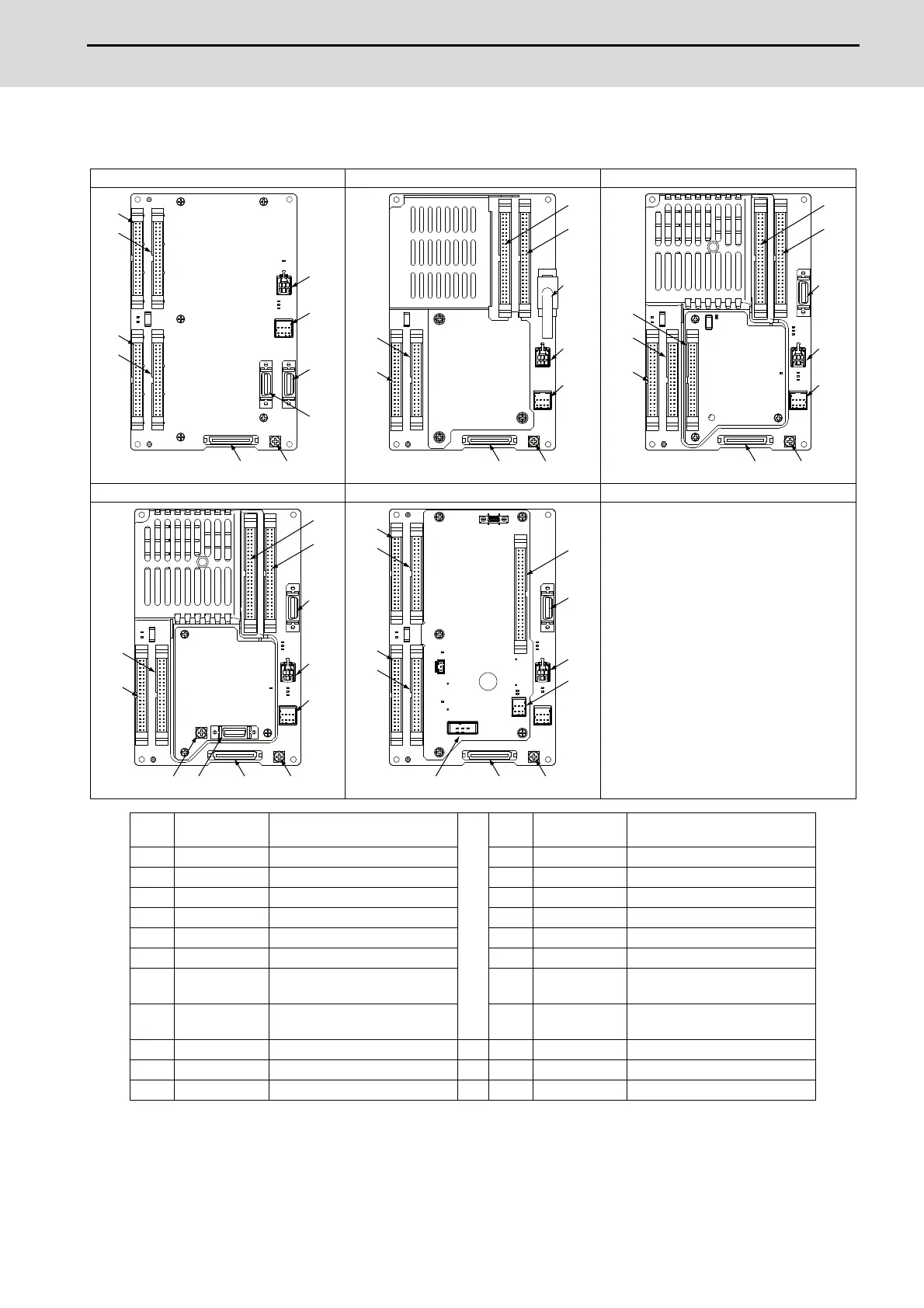

[Connector]
(Note) The CJ71 connector of FCU8-DX834 is not used.
FCU8-DX731 FCU8-DX750 FCU8-DX760
FCU8-DX761 FCU8-DX834
No.
Connector
name
Function No.
Connector
name
Function
(1) CG31 Machine signal input (12) MPG Manual pulse generator input
(2) CG32 Machine signal output (13) RIO3EXT Remote I/O 2.0 communication
(3) CG33 Machine signal input (14) RIO3 Remote I/O 2.0 communication
(4) CG34 Machine signal output (15) CJ71 Control unit I/F
(5) CG35 Machine signal input (16) NCKB Keyboard I/F
(6) CG36 Machine signal output (17) AO Analog output
(7) CJ37 Machine signal input (18) AIO
Analog input
Analog output
(8) CJ38 Machine signal output (19) OPKB
Scan input
Scan output
(9) CJ39 Machine signal input (20) DCIN 24VDC input
(10) CJ40 Machine signal output (21) FG FG terminal
(11) CJ42 Machine signal output
(12)
(13)
(15)
(16)
(2)
(6)
(21)
(17)
(1)
(5)
(12)
(13)
(15)
(9)
(16)
(8)
(10)
(7)
(21)
(12)
(13)
(15)
(9)
(16)
(8)
(10)
(7)
(21)
(11)
(12)
(13)
(15)
(9)
(16)
(8)
(10)
(7)
(21)(18)(21)
(12)
(13)
(16)
(2)
(4)
(21)
(1)
(3)
(19)
(14)
(20)

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
