Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
106
IB-1501269-J

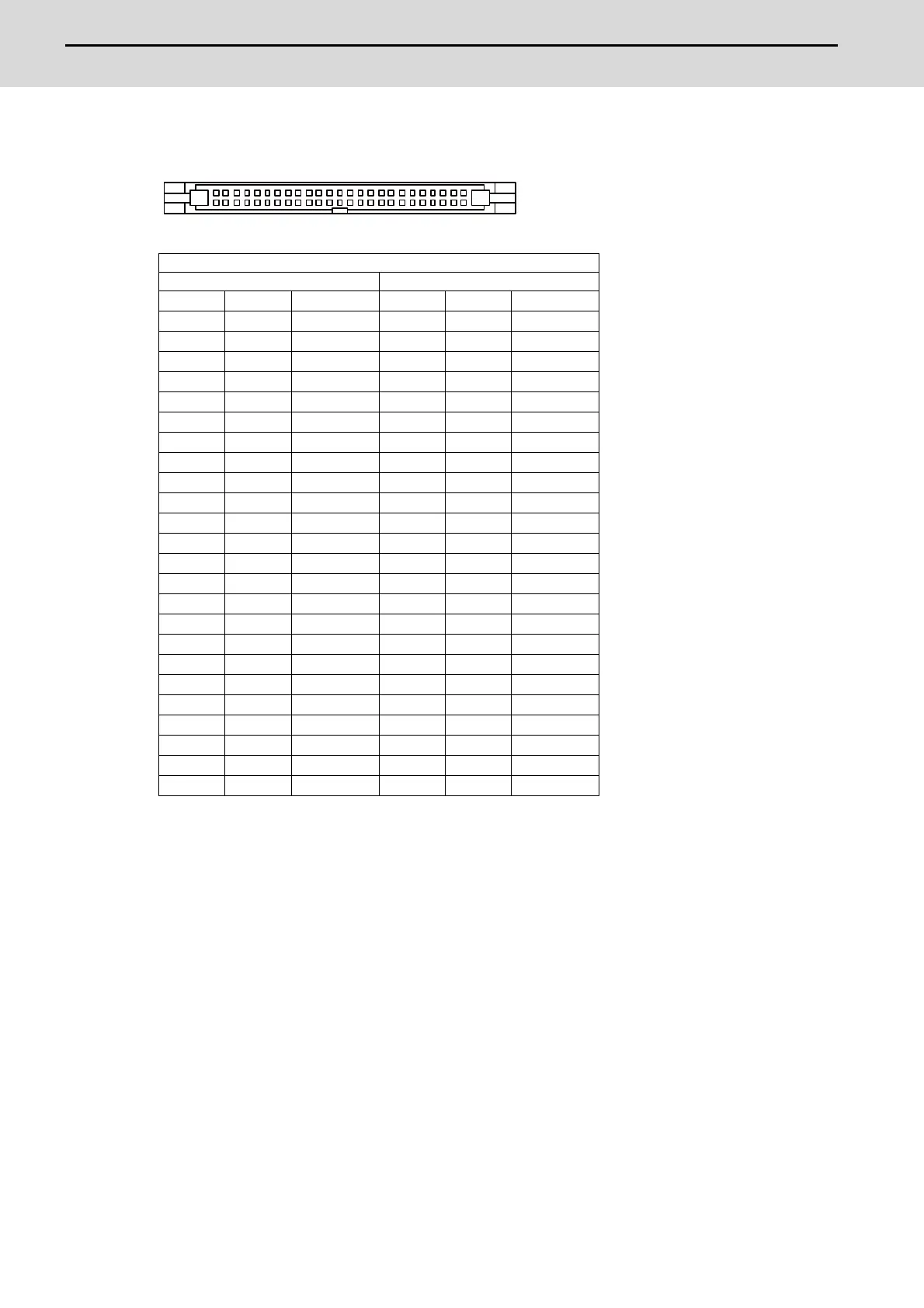

(19) OPKB (Scan input, Scan output)
<Cable side connector type>
Connector : XG4M-5030 / 7950-6500SC
Strain relief : XG4T-5004 / 3448-7950
Recommended manufacturer : OMRON / 3M
OPKB
BA
25 0V 25 0V
24 OLC3B 24 OLC3A
23 OLC2B 23 OLC2A
22 OLC1B 22 OLC1A
21 OLC0B 21 OLC0A
20 ILD7B* 20 ILD7A*
19 ILD6B* 19 ILD6A*
18 ILD5B* 18 ILD5A*
17 ILD4B* 17 ILD4A*
16 ILD3B* 16 ILD3A*
15 ILD2B* 15 ILD2A*
14 ILD1B* 14 ILD1A*
13 ILD0B* 13 ILD0A*
12 0V 12 NC
11 NC 11 NC
10 NC 10 ONC
9 O KYC7* 9 O KYC6*
8 O KYC5* 8 O KYC4*
7 O KYC3* 7 O KYC2*
6 O KYC1* 6 O KYC0*
5 I KYD7* 5 I KYD6*
4 I KYD5* 4 I KYD4*
3 I KYD3* 3 I KYD2*
2 I KYD1* 2 I KYD0*
1 NC 1
0V
A25
B25
A1
B1

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
