M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
157
IB-1501269-J
[Connector]

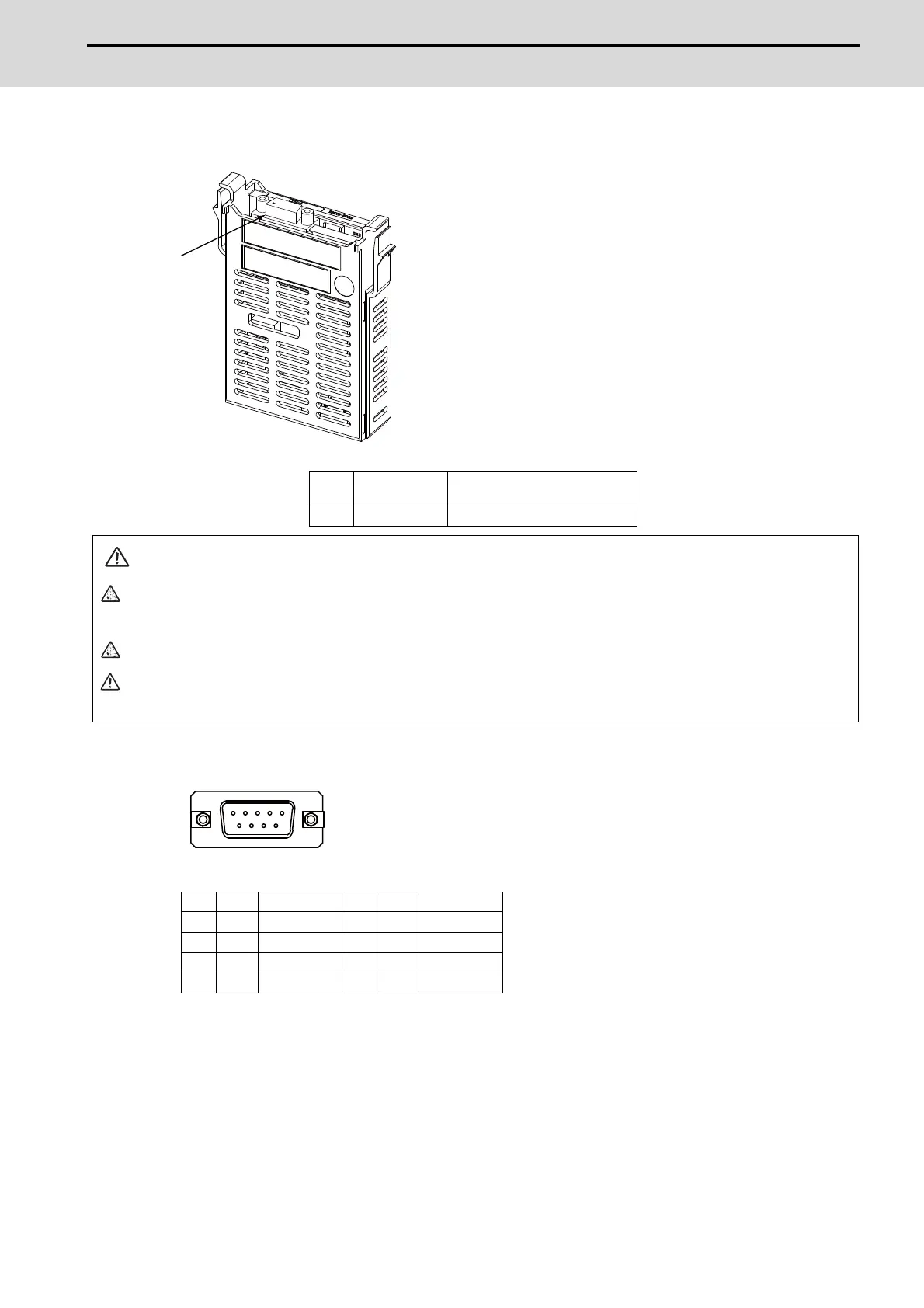

(1) PBD (PROFIBUS-DP communication)
<Cable side connector type>
Connector : 6GK1 500-0FC10
Recommended manufacturer : Siemens
No.
Connector
name
Function
(1) PBD PROFIBUS-DP
CAUTION
Do not apply any voltage to the connectors other than voltage specified in this manual. Failure to observe this
could cause bursting, damage, etc.
Connect the cables to the designated connectors. Incorrect connections could damage the device.
5V output from connectors are to supply the power for dedicated peripheral devices. Do not use for other
equipment to supply the power since we do not guarantee the NC operation by voltage down or noise sneaking.
1 NC 6 +5V
2 NC 7 NC
3 I/O RXD/TXD-P 8 I/O RXD/TXD-N
4 I/O CNTR-P 9 NC
5 0V
