Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
181
IB-1501269-J

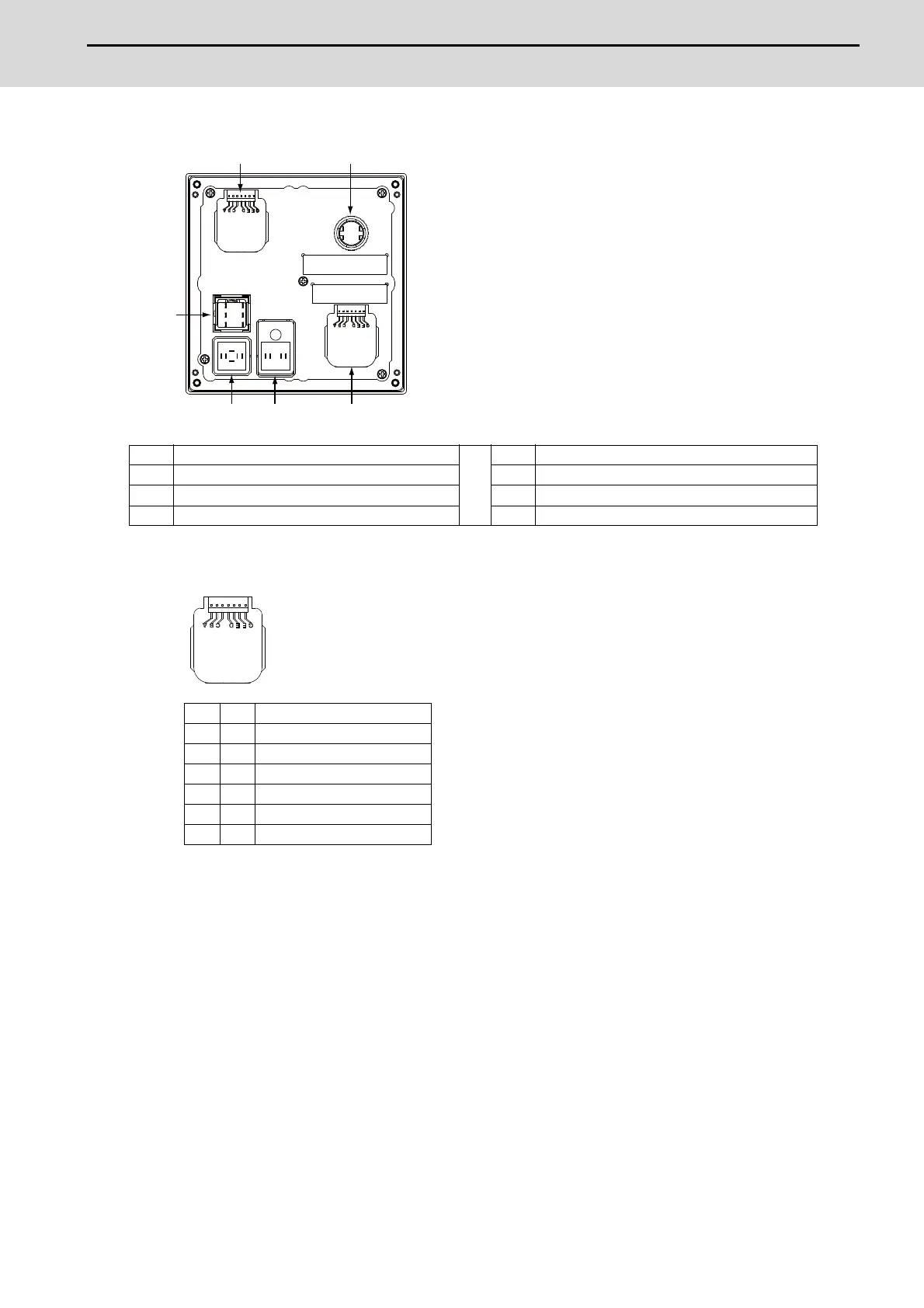

[Connector]
(1) Rapid traverse override
<Switch type>
Switch : AC09-GY0/10L3B02
Recommended manufacturer : Fuji Electric
Connection : Connector
<Switch side connector type>
Connector : IL-7P-S3EN2
Recommended manufacturer : Japan Aviation Electronics
<Cable side connector type>
Connector : IL-7S-S3L-(N)
Contact : IL-C2-10000
Recommended manufacturer : Japan Aviation Electronics
No. Switch name No. Switch name
(1) Rapid traverse override (4) ON switch
(2) Emergency stop switch (5) OFF switch
(3) Memory protection switch (6) Cutting override
A O Output signal a
B O Output signal c
C O Output signal e
D - Common terminal
E O Output signal d
F O Output signal b
G O Parity check signal
(1)
(6)
(2)
(3)
(5)
(4)

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
