M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
182
IB-1501269-J

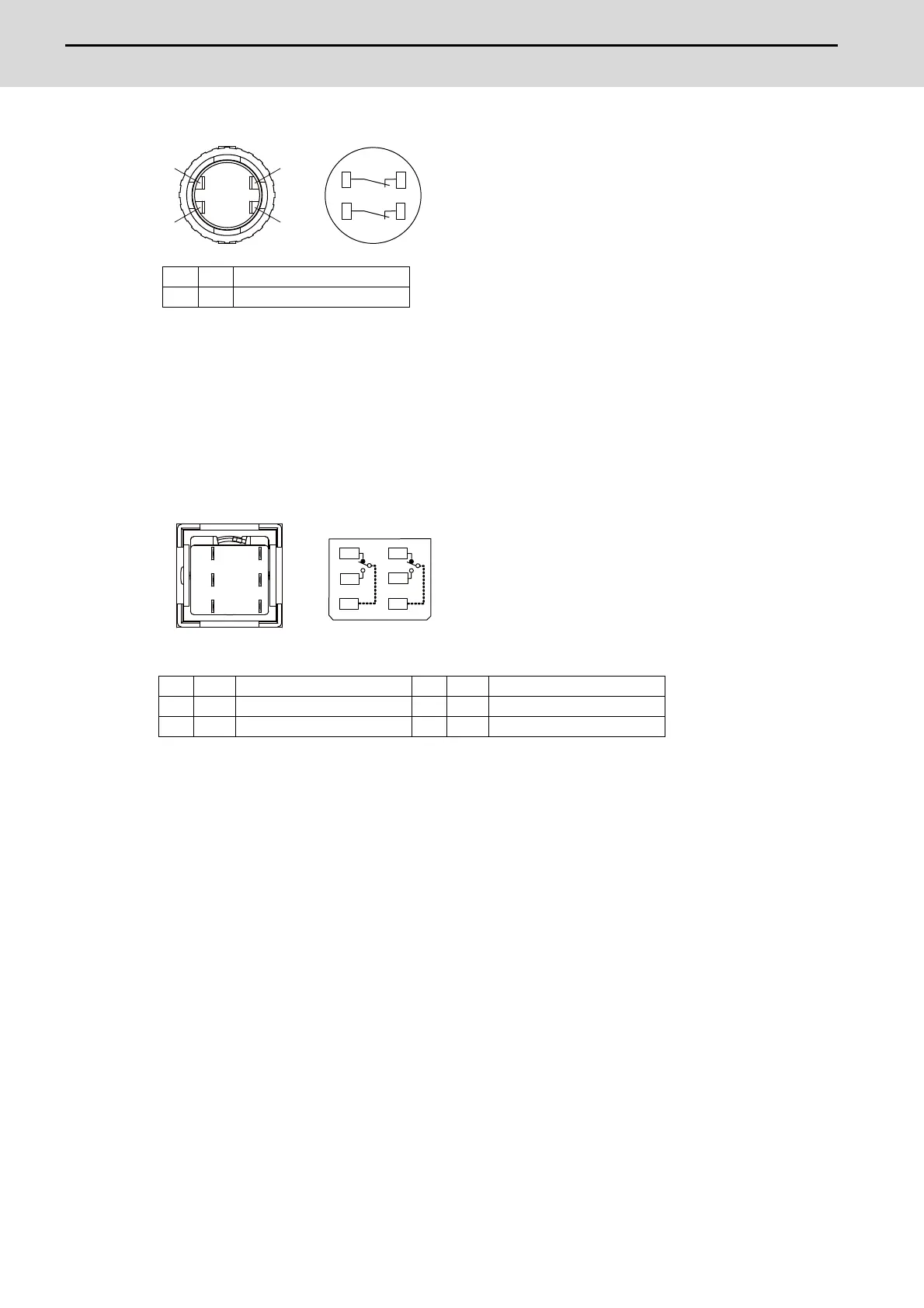

(2) Emergency stop switch
<Switch type>
Switch : XA1E-BV4U02TR
Recommended manufacturer : IDEC
Connection : Terminal
<Cable side connector type>
Connector: Faston terminal #110
Recommended manufacturer : -
(3) Memory protection switch
<Switch type>
Switch :LB6K-2ST2B
Recommended manufacturer : IDEC
Connection : Terminal
<Cable side connector type>
Connector: Faston terminal #110
Recommended manufacturer : -
A O Contact 1 (B contact)
B O Contact 2 (B contact)
22 O Contact 2 (B contact) 12 O Contact 1 (B contact)
24 O Contact 2 (A contact) 14 O Contact 1 (A contact)
21 - Contact 2 (Common) 11 - Contact 1 (Common)
12
12
2 1
21
Contact 2 Contact 1
22
24
21
12
14
11
