M800S/M80/E80 Series Connection and Setup Manual
31 Device Open Parameter Screen
548
IB-1501269-J
Display items Details Setting range

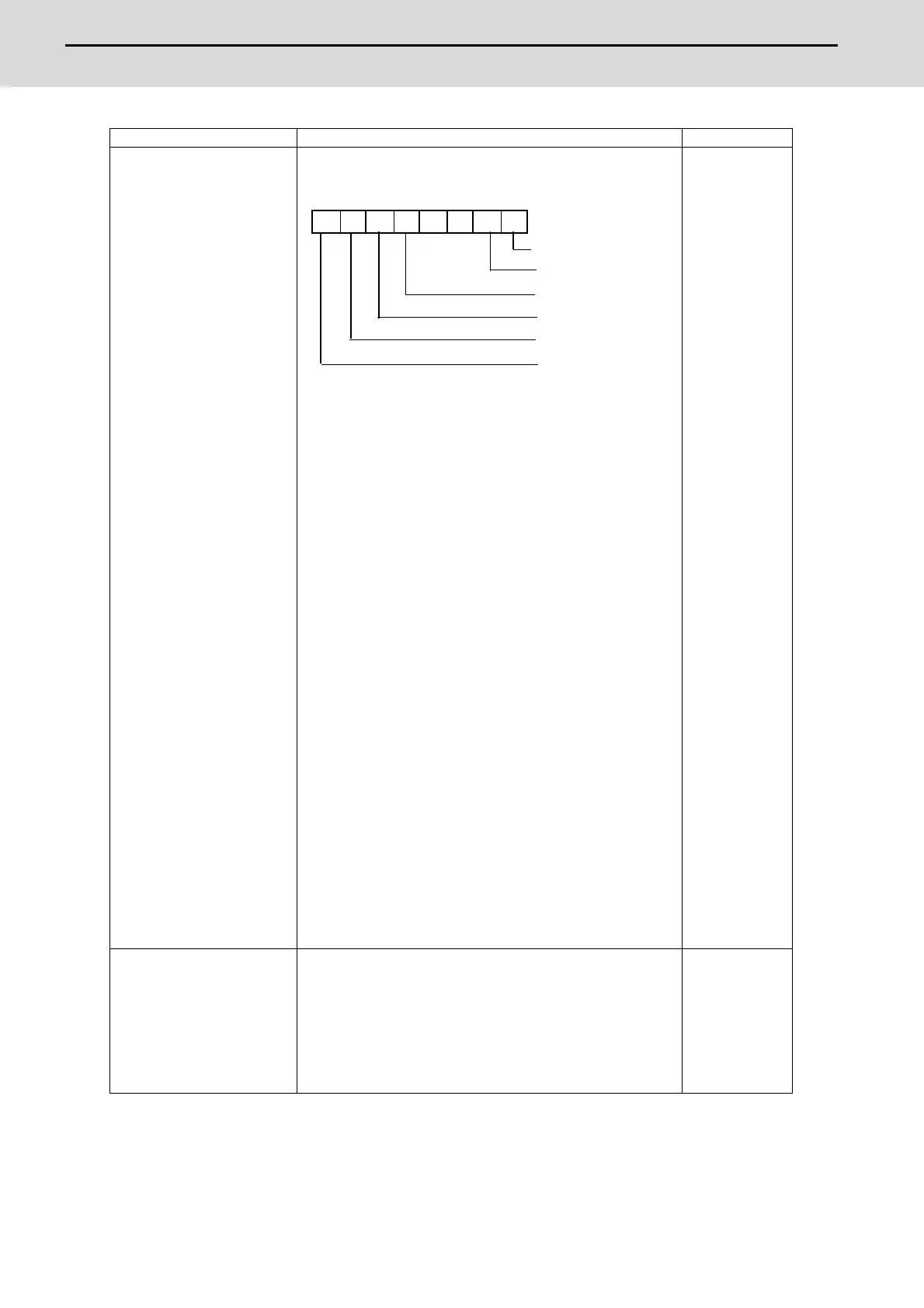

(5) Display format
Designate the display format of the data, the restriction of display, and
the state of input protection.
a) Cancellation of input protection
1: Not check
Input protection check for the data protection key 2 will not
be executed in the group detail screen.
0: Check
Input protection check for the data protection key 2 will be
executed in the group detail screen.
(Note) The name of the data protection key varies depending
on the machine tool builder. Refer to the instruction
manual issued by the machine tool builder for details.
b) Cancellation of restriction on display
1: Display
The group detail screen is displayed without entering
the machine tool builder's password
0: Not display
The group detail screen is not displayed when the password
is not entered.
c) BCD fromat
1: Valid
Display the group detail screen data in BCD format.
0: Invalid
d) BIT format
1: Display the group detail screen data in BIT format.
0: Invalid
e) HEX format (Hexadecimal format)
1: Valid
Display the group detail screen data in HEX format.
0: Invalid
f) Sign (Decimal format only)
1: Without sign
Display the group detail screen data in decimal format
without sign.
0: With sign
Display the group detail screen data in decimal format with sign.
(Note) When "BCD format", "HEX format" and "BIT format" are all set
to "0", the display format of the data is the decimal format.
-
(6) Group comment
Display a comment that is defined in the comment definition file for the
device open or a comment of a head device of the group.
a) When defining a group comment
Comment of each group will be displayed.
It will be displayed regardress of device allocation and the setting of
number of data.
b)When not define a group comment
A comment of the device which is set with "(2) device allocation" will
be displayed.
-
7 6 5 4 3 2 1 0
a)
b)
c)
d)
e)
f)
