Chapter 4 Installation, Wiring and Maintenance of the Produc

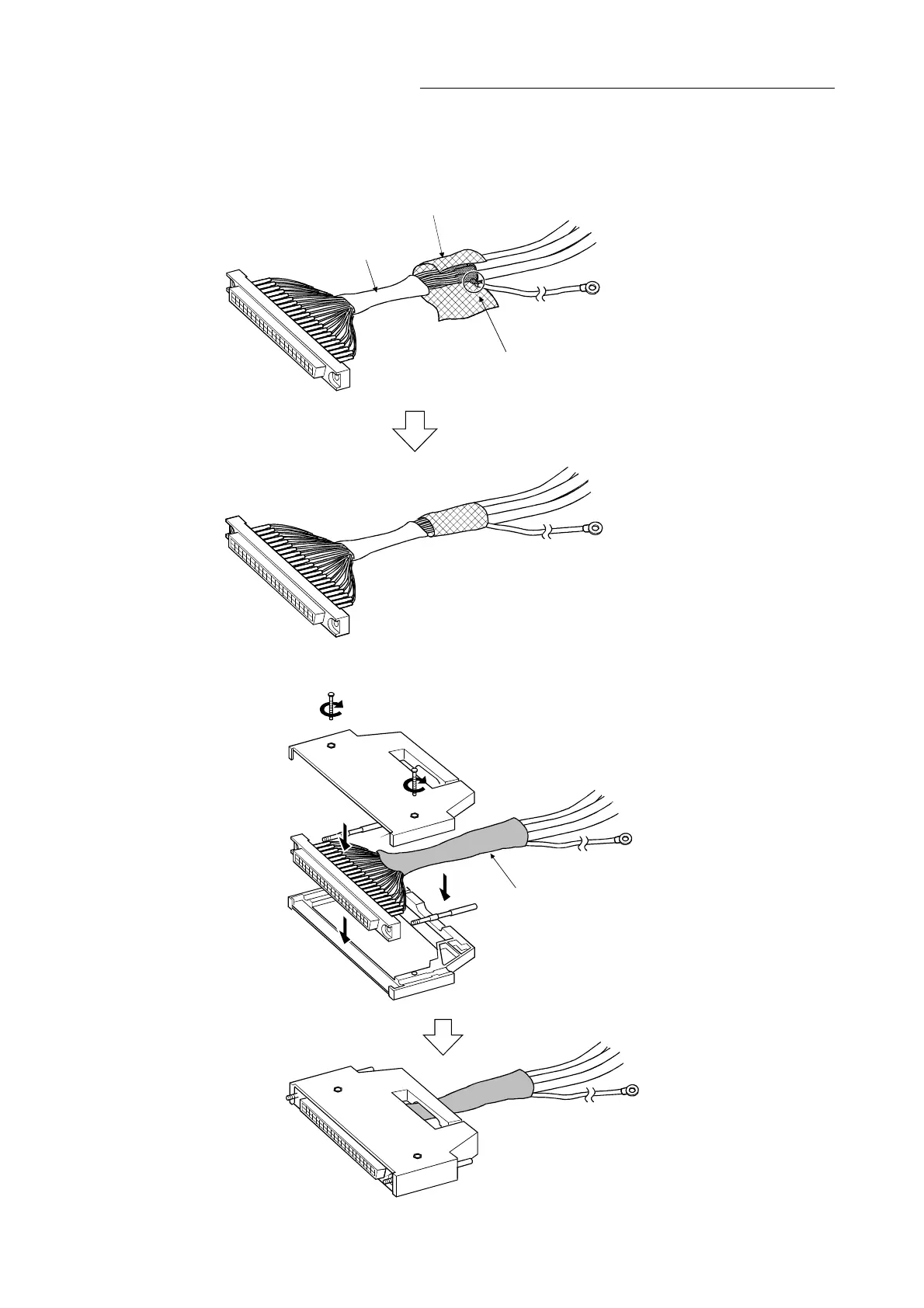

[Processing example of shielded cables]
Connections of FG wire and each shielded cable
Coat the wire with
insulating tape.
Remove the covering from all shielded cables and bind
the appeared shield with a conductive tape.
Solder the shield of any one of the
shielded cables to the FG wire.
Assembling of connector (A6CON1)
Wrap the coated parts
with a heat contractile
tube.
