4 - 14
Chapter 4 Installation, Wiring and Maintenance of the Produc

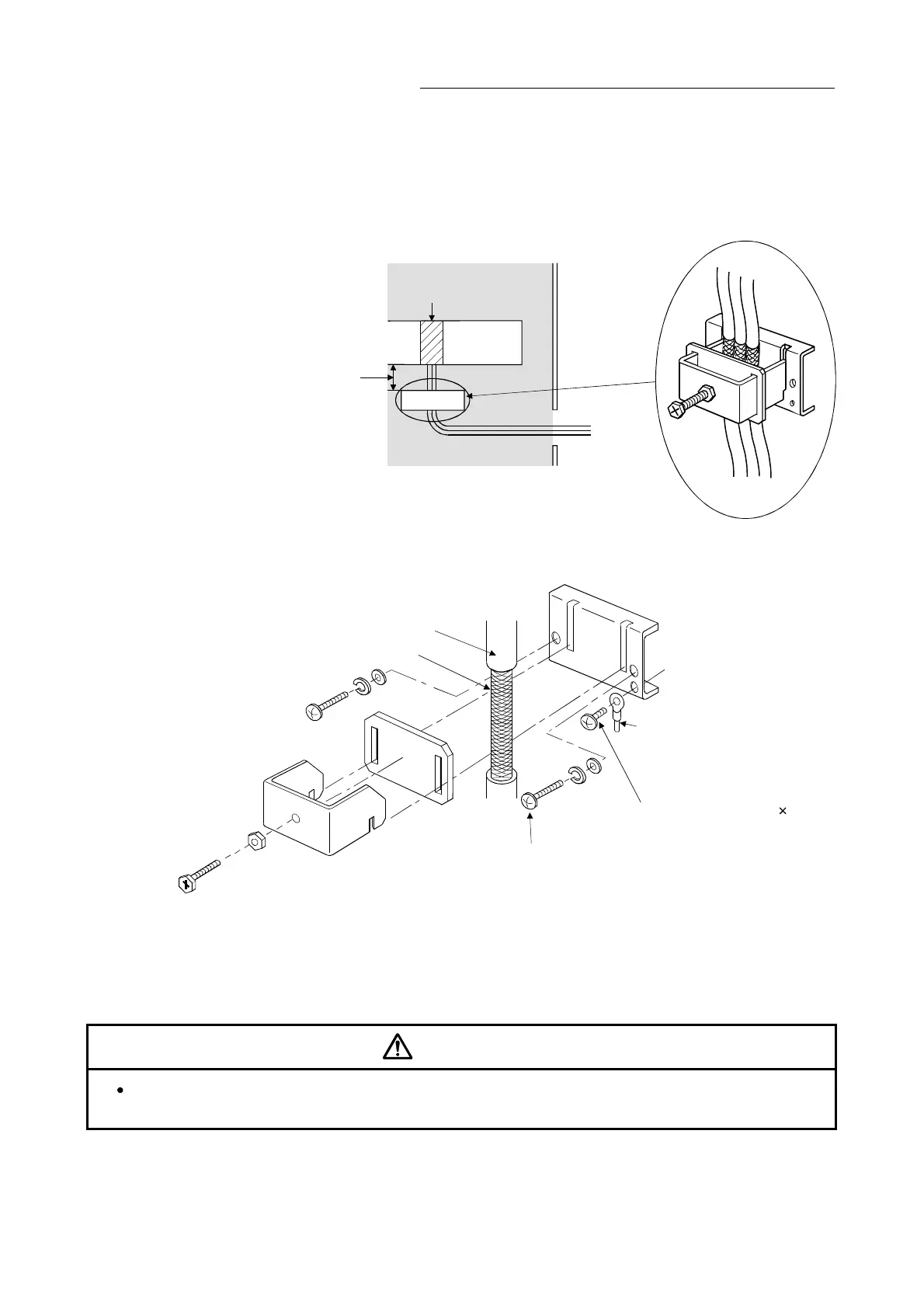

(6) To make this product conform to the EMC directive instruction and Low
Voltage Directives, be sure to used of a AD75CK type cable clamp
(manufactured by Mitsubishi Electric) for grounding connected to the control
box and the shielded cable.
AD75CK
ithin 30cm
(11.82inch)
QD77MS
Inside control box
[How to ground shielded cable using AD75CK]
Shielded cable
Shield
Installation screw to control box (M4 screw)
Ground terminal
Ground terminal installation screw (M4 8 screw)
Using the AD75CK, you can tie four cables of about 7mm outside diameter together for
grounding.
(Refer to the "AD75CK-type Cable Clamping Instruction Manual" (IB-68682).)
CAUTION
Do not ground the cable clamp to the top of control panel. Doing so may lead to damage by
damage of screws, etc. during installation or removing the cable clamp.
