LC100 Instruction manual
4/6 Parameters
8/12 Time
Type H
H-10
GONG signal duration
0-2,55s

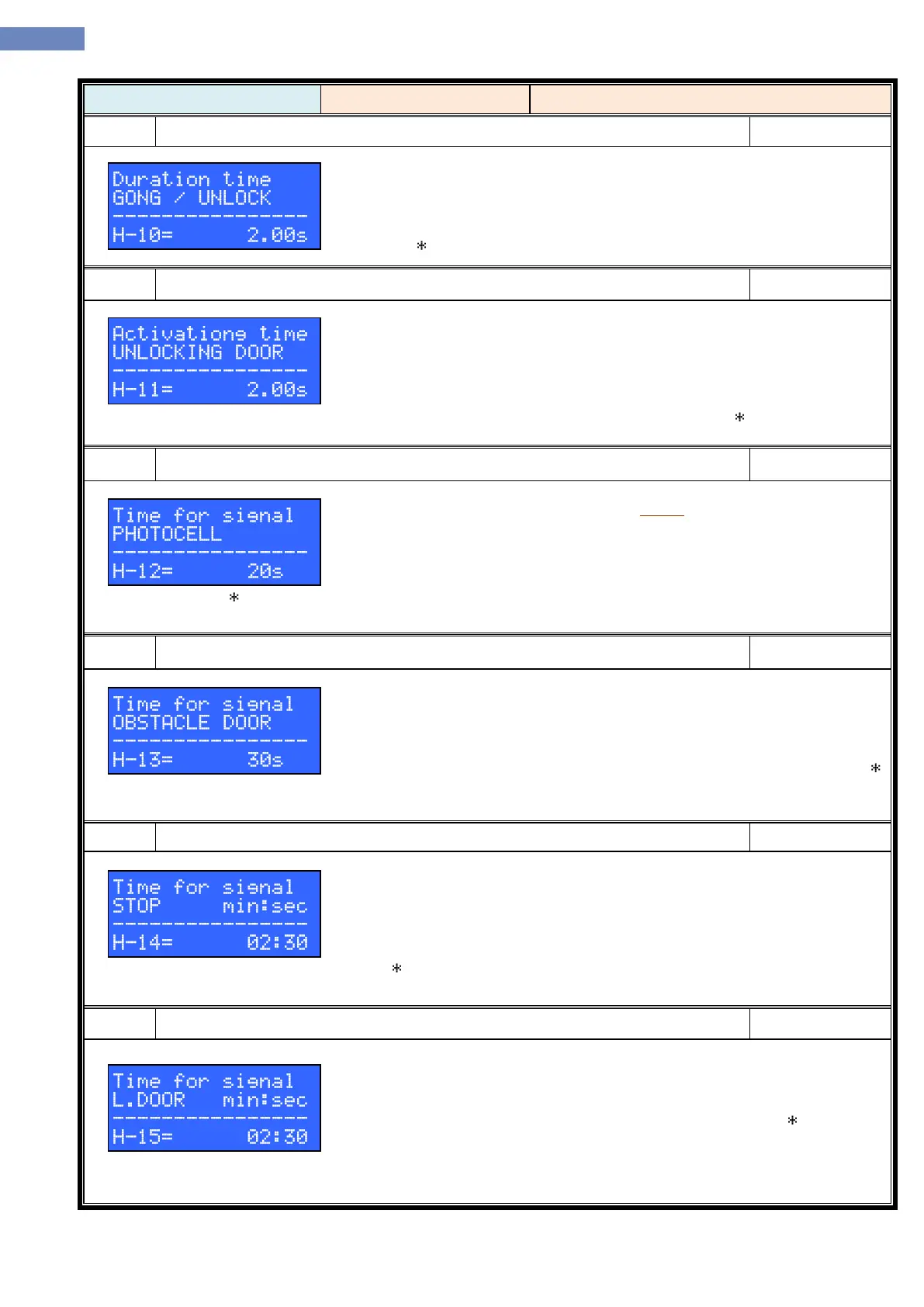

The parameter is used to adjust the duration of the gong signal coming to the
station. The arrival of the elevator on the slowdown zone switch triggers the
GONG signal.
For display LC100-M or L displays to signalize gong PML parameters must be
set (mark „ “ below letter „C“ for stations with LC100-M or L display).
H-11
UNLOCKING signal duration
0-25s
The parameter is used to adjust the duration of landing door unlocking signal.
Time H-09 is unlocking signal delay after cabin door opening. Unlocking signal
is used with semi-automatic landing door and automatic cabin door.
For display LC100-M or L to signalize unlocking PML parameters must be set (mark „ “ below letter „E“ for
stations with LC100-M or L display).
H-12
PHOTOCELL signal activation
0-250s
Parameter is used to delay photocell (FI-263 or FI-273) signalization on
LC100-M or L display.
If the photocell input is active longer than the time set by parameter, it is saved
in the statistic and signaled on display.
For display LC100-M or L to signalize photocell activity PML parameters must
be set (mark „ “ below letter “I“ for stations with LC100-M or L display).
H-13
CLOSING OBSTACLES signal activation
0-250s
Parameter is used to delay closing door obstacle (FI-262 or FI-272)
signalization on LC100-M or L display.
If the closing door obstacle input is active longer than the time set by
parameter, it is saved in the statistic and signaled on display. For display LC100-
M or L to signalize closing door obstacle PML parameters must be set (mark „ “
below letter “I“ for stations with LC100-M or L display).
H-14
STOP signal activation
0-41min40s
Parameter is used to delay safety circuit STOP interrupt signalization on
LC100-M or L.
If the safety circuit STOP input is interrupt longer than the time set by
parameter, it is saved in the statistic and signaled on display. For display LC100-
M or L to signalize safety circuit STOP interruption PML parameters must be set
(mark „ “ below letter “G“ for stations with LC100-M or L display).
H-15
LANDING DOOR signal activation
0-41min40s
Parameter is used to delay landing door open on LC100-M or L display.
If the landing door input is active longer than the time set by parameter, it is
saved in the statistic and signaled on display. For display LC100-M or L to
signalize landing door open PML parameters must be set (mark „ “ below letter
“H“ for stations with LC100-M or L display).
