MLC LC100 - Page 113

113
LC100 Instruction manual
NO

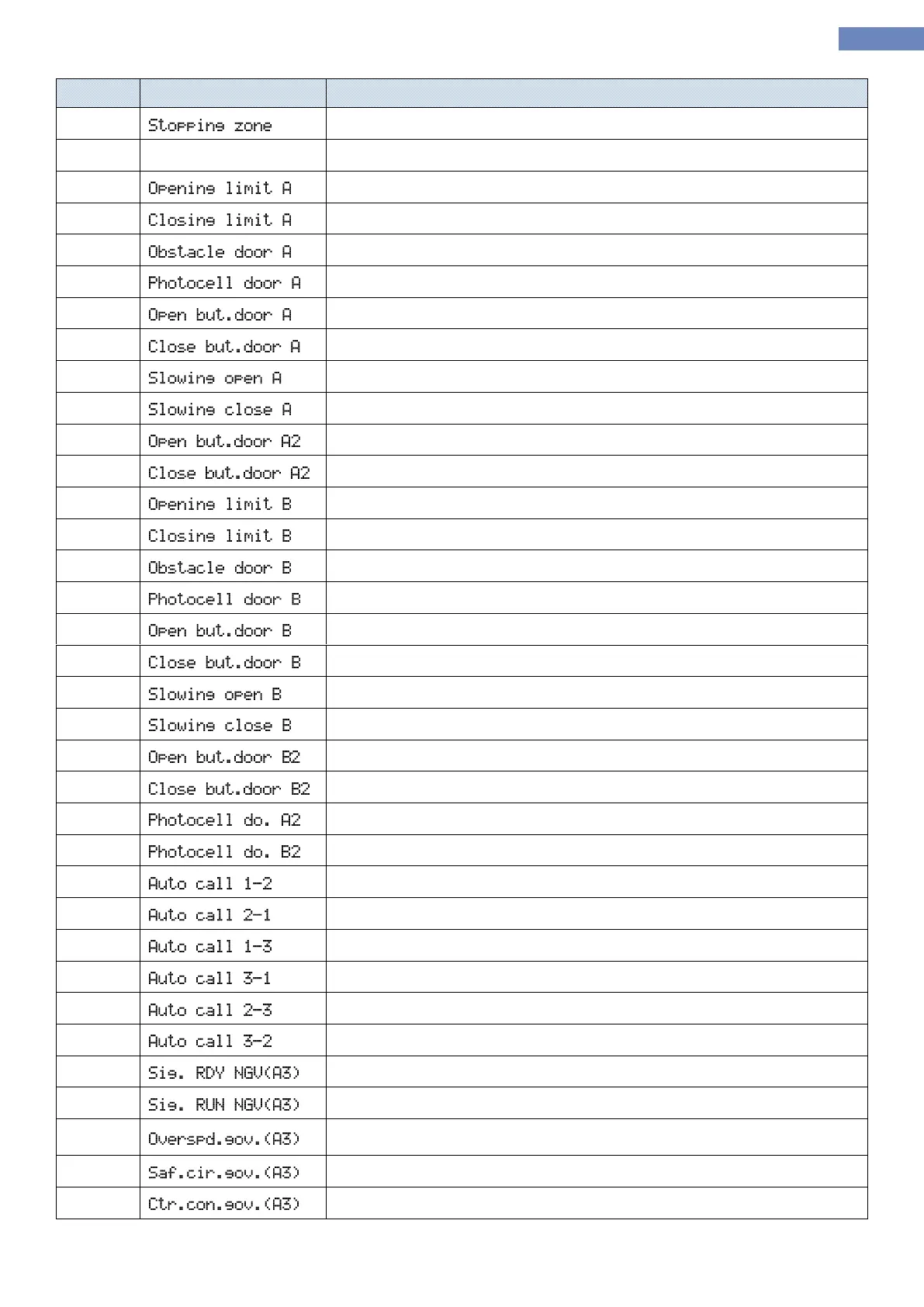

DYSPLAY ON LC100-D
DESCRIPTION
FI-258
Input for stopping zone switch.
FI-259
FI-260
Opening limit switch input for door A
FI-261
Closing limit switch input for door A
FI-262
Input for closing door obstacle side A
FI-263
Input for photocell door A
FI-264
Input for door A open pushbutton.
FI-265
Input for door A close pushbutton.
FI-266
Input for slowing the door A opening speed.
FI-267
Input for slowing the door A closing speed.
FI-268
Additional input for door A open pushbutton.
FI-269
Additional input for door A close pushbutton.
FI-270
Opening limit switch input for door B
FI-271
Closing limit switch input for door B
FI-272
Input for closing door obstacle side B
FI-273
Input for photocell door B
FI-274
Input for door B open pushbutton.
FI-275
Input for door B close pushbutton.
FI-276
Input for slowing the door B opening speed.
FI-277
Input for slowing the door B closing speed.
FI-278
Additional input for door B open pushbutton.
FI-279
Additional input for door B close pushbutton.
FI-280
Additional input for photocell door A
FI-281
Additional input for photocell door B
FI-282
Input for automatic call from floor 1 to floor 2 for car elevators.
FI-283
Input for automatic call from floor 2 to floor 1 for car elevators.
FI-284
Input for automatic call from floor 1 to floor 3 for car elevators.
FI-285
Input for automatic call from floor 3 to floor 1 for car elevators.
FI-286
Input for automatic call from floor 2 to floor 3 for car elevators.
FI-287
Input for automatic call from floor 3 to floor 2 for car elevators.
FI-288
Input control for READY relay from NGV agregat.
FI-289
Input control for RUN relay from NGV agregat.
FI-290
Overspeed governor coil control input or for control AMI safety device.
For enable work with AMI device (H-20 > 0).
FI-291
Overspeed contact control input.
FI-292
Overspeed contactor control input / AMI contact control input.
