LC100 Instruction manual

XS27 connector is a power supply 230VAC for cabin, XS26 connector is output power suply for the cabin connected

with the traveling cable.

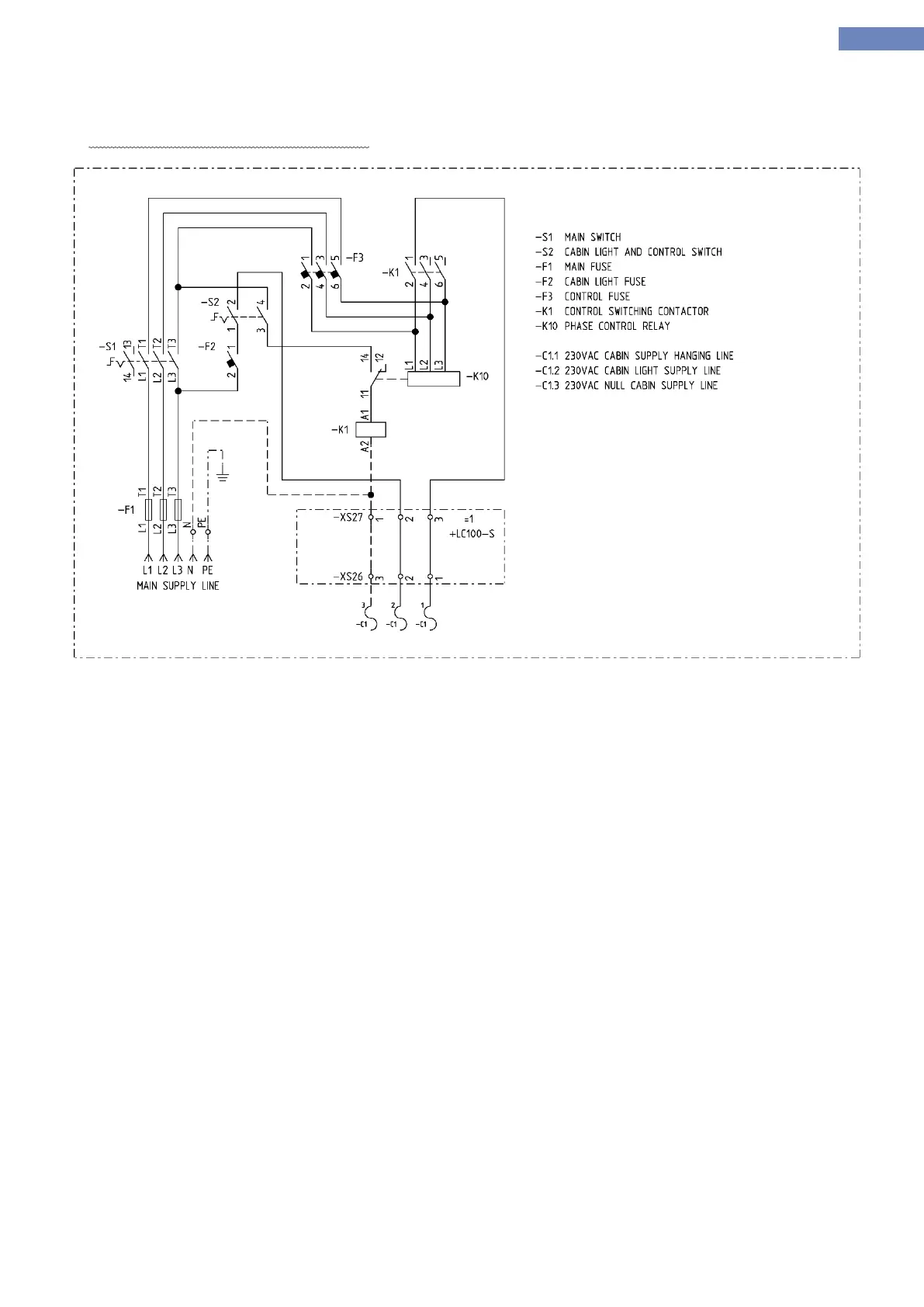

Cabin power supply connection diagram:
