A - 8 MC40 Integrator Guide
USB Connector

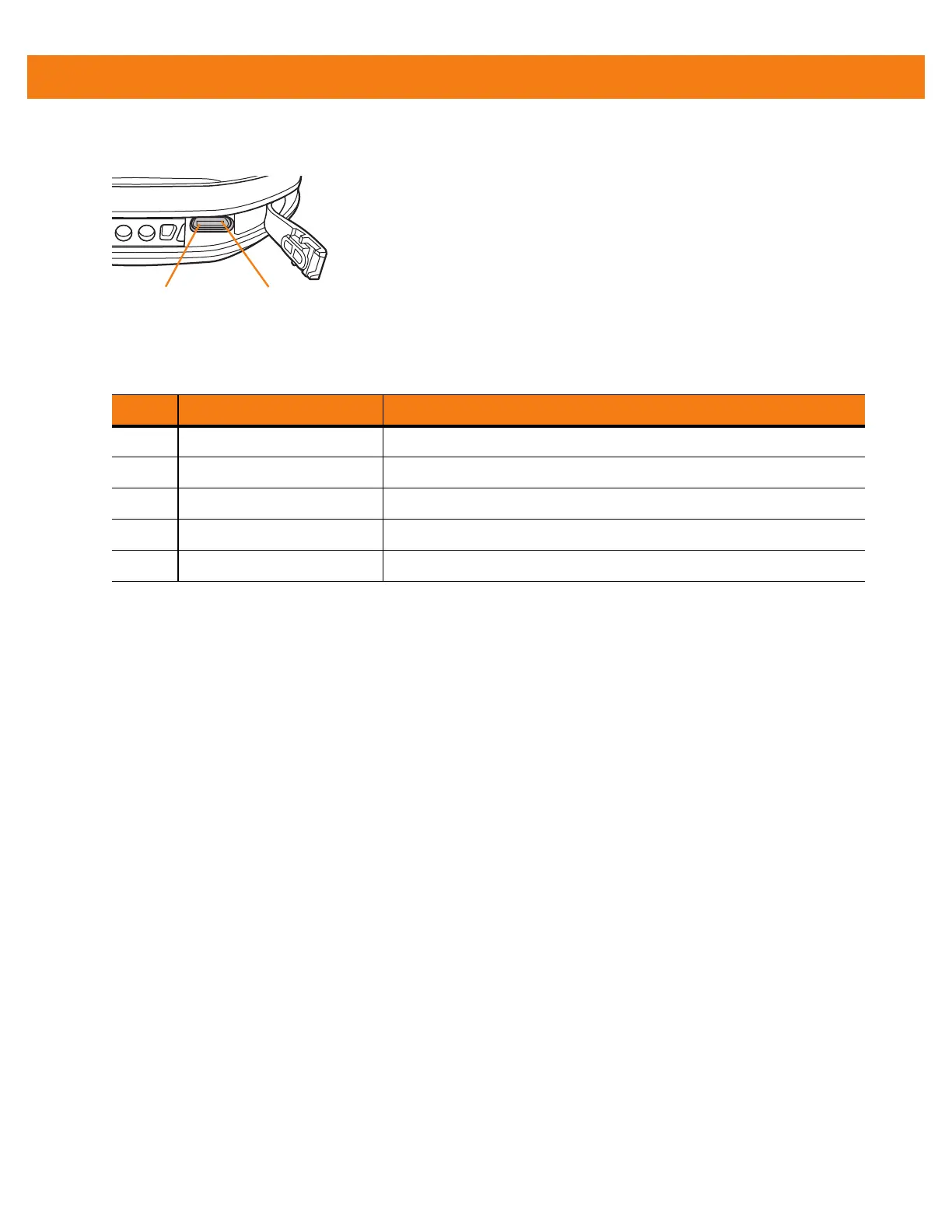

Figure A-4 micro-B USB Connector
Table A-6 micro-B USB Connector Pin-outs
Pin Signal Name Description
1 VBUS +5 VDC
2 D- Data -
3 D+ Data +
4 ID Permits distinction of host connection from slave
5 GND Signal ground
Pin 1
Pin 5
