Motorola MC40 - Mount Volume; List Volumes; Unmount Volume

Administrator Utilities 6 - 15

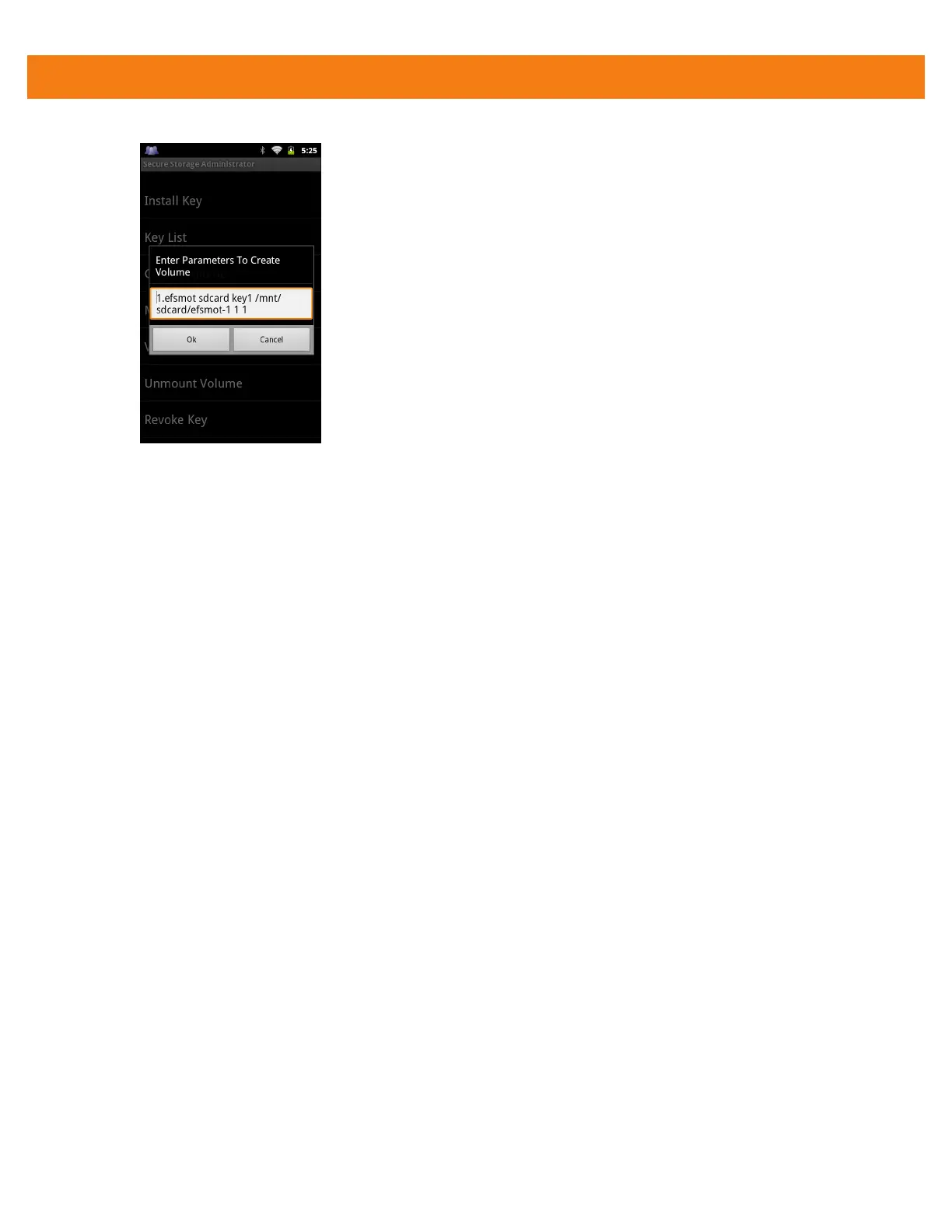

Figure 6-10 Enter Parameter To Create Volume Dialog Box
5. Touch OK. The message Successfully Created the Volume appears briefly.
If the size of the volume is very large, a progress bar displays.
Mount Volume
To mount an encrypted volume:
1. Touch Mount Volume.
2. Touch sdcard or internal.
3. Touch OK.
4. Select a volume.
5. Touch OK.
List Volumes
To view a list of the encrypted volumes:
1. Touch Volume List.
2. Touch sdcard to list volumes on the On-device Storage or internal to list volumes on internal storage.
3. Touch OK. The List of EFS Volumes dialog box appears with all the volumes of the selected storage
location.
4. Touch OK.
Unmount Volume
To un-mount an encrypted volume:
1. Touch Unmount Volume.
2. Touch sdcard to list the mounted volumes on the On-device Storage or internal to list the mounted
volumes on internal storage.
3. Touch OK.
