5 - 2 MC40 Integrator Guide

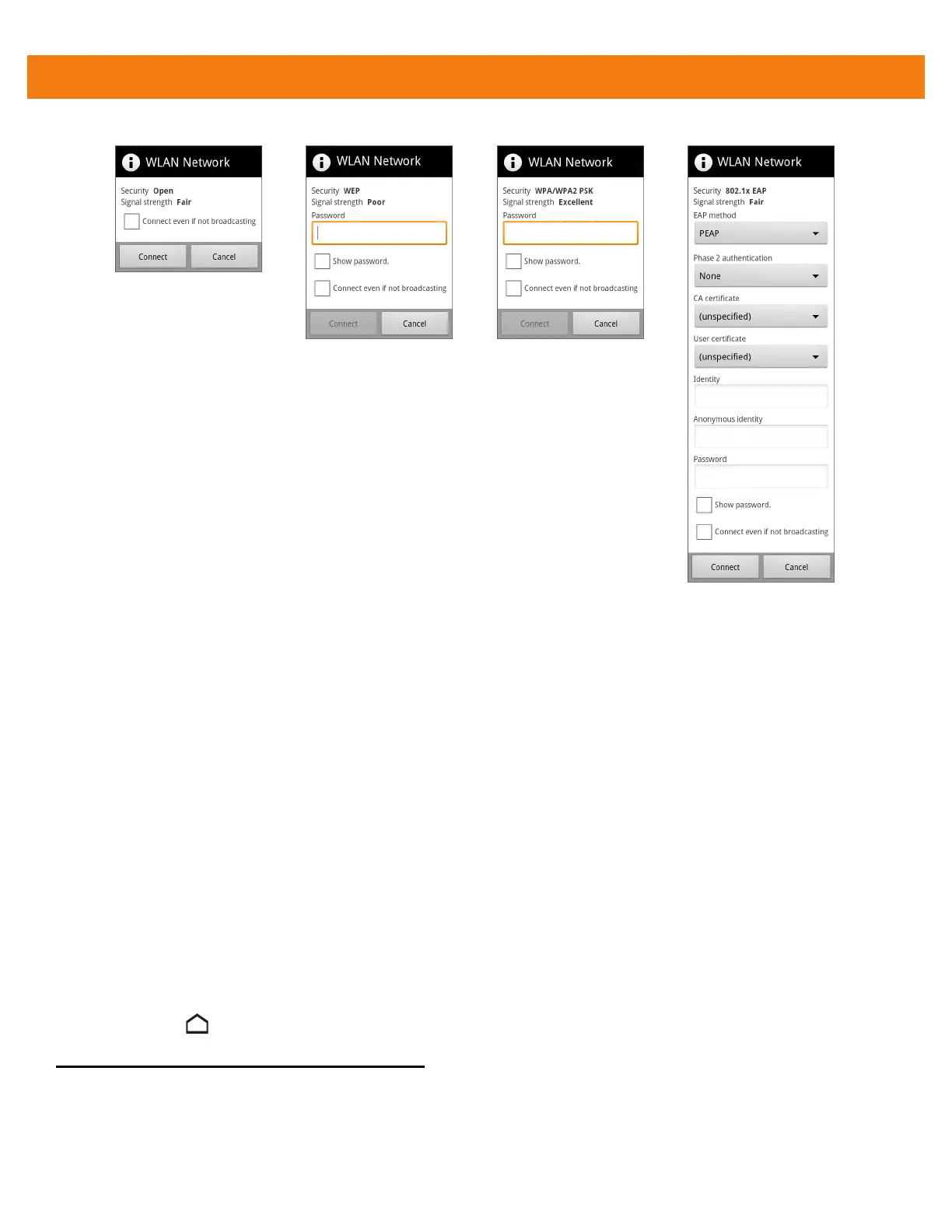

Figure 5-1
WLAN Network Security Dialog Boxes
•
If the network security is Open, touch Connect.
•
If the network security is WEP or WPA/WPSA2 PSK, enter the required password and then touch
Connect.
•
If the network security is 802.1x EAP:
• Touch the EAP method drop-down list and select PEAP, TLS, TTLS, FAST or LEAP.
• Touch the Phase 2 authentication drop-down list and select an authentication method.
• If required, touch CA certificate and select a Certification Authority (CA) certificate.
Note: Certificates are installed using the Location & security settings.
• If required, touch User certificate and select a user certificate.
Note: User certificates are installed using the Location & security settings.
• If required, in the Identity text box, enter the username credentials.
• If desired, in the Anonymous identity text box, enter an anonymous identity username.
• If required, in the Password text box, enter the password for then given identity.
• Touch Connect even if not broadcasting checkbox, to allow connections to APs with hidden SSIDs.
• Touch Connect.
5. Touch .
Manually Adding a Wi-Fi Network
Manually add a Wi-Fi network if the network does not broadcast its name (SSID) or to add a Wi-Fi network
when out of range.
