2 - 24 MC65 User Guide

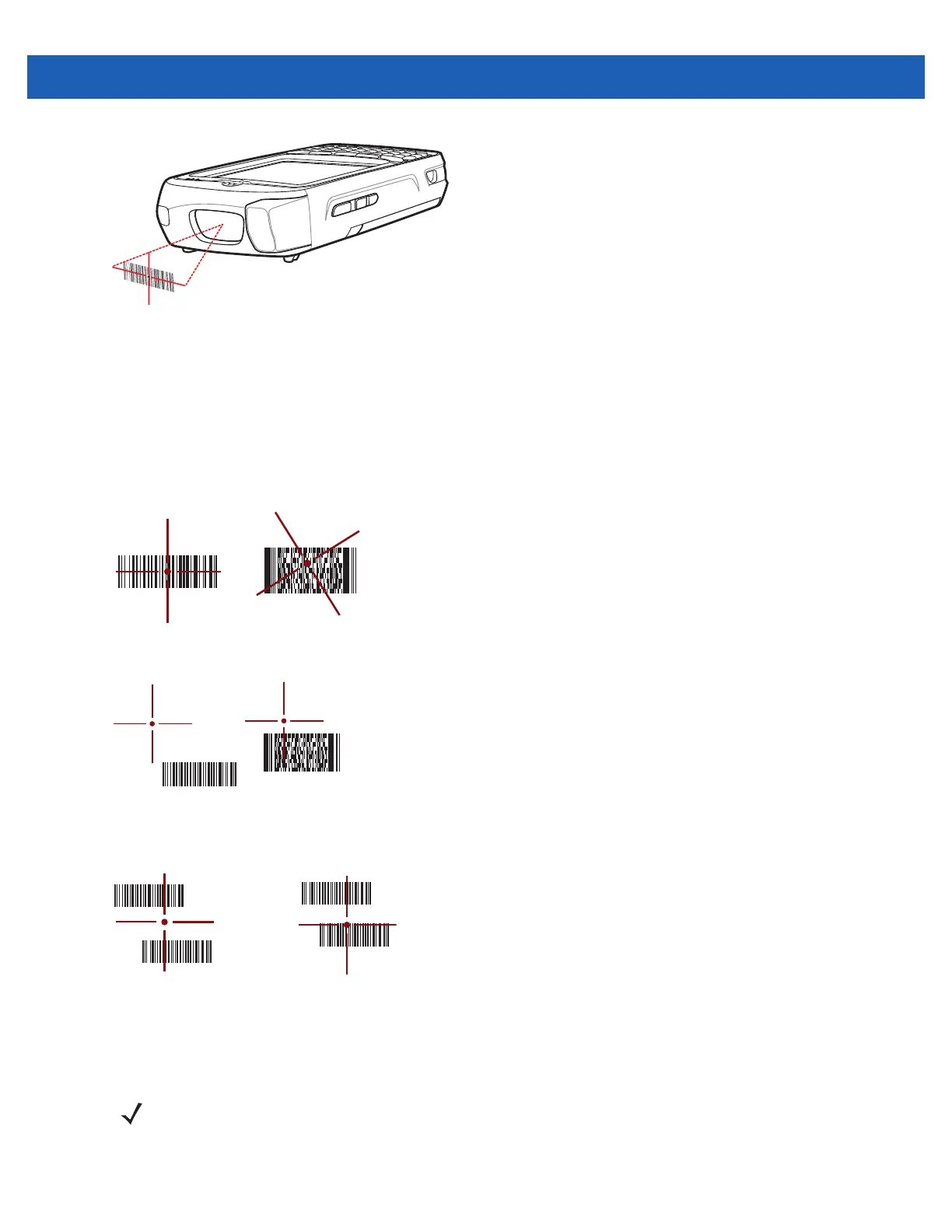

Figure 2-28 Imager Scanning
4. Press and hold the scan button.
The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by
the brackets in the aiming pattern. The aiming dot is used for increased visibility in bright lighting
conditions.
The Scan/Decode LED lights red to indicate that scanning is in process, then lights green and a beep
sounds, by default, to indicate the bar code was decoded successfully. Note that when the MC65 is in Pick
List Mode, the imager does not decode the bar code until the crosshair or aiming dot touches the bar code.
Figure 2-29 Imager Aiming Pattern: Bar Code Centered
Figure 2-30 Imager Aiming Pattern: Bar Code Not Centered
Figure 2-31 Pick List Mode with Multiple Bar Codes in Aiming Pattern
5. Release the scan button.
6. Disable DataWedge.
Correct
Incorrect
Decoded Not Decoded
NOTE Imager decoding usually occurs instantaneously. The MC65 repeats the steps required to take a digital
picture (image) of a poor or difficult bar code as long as the scan button remains pressed.
